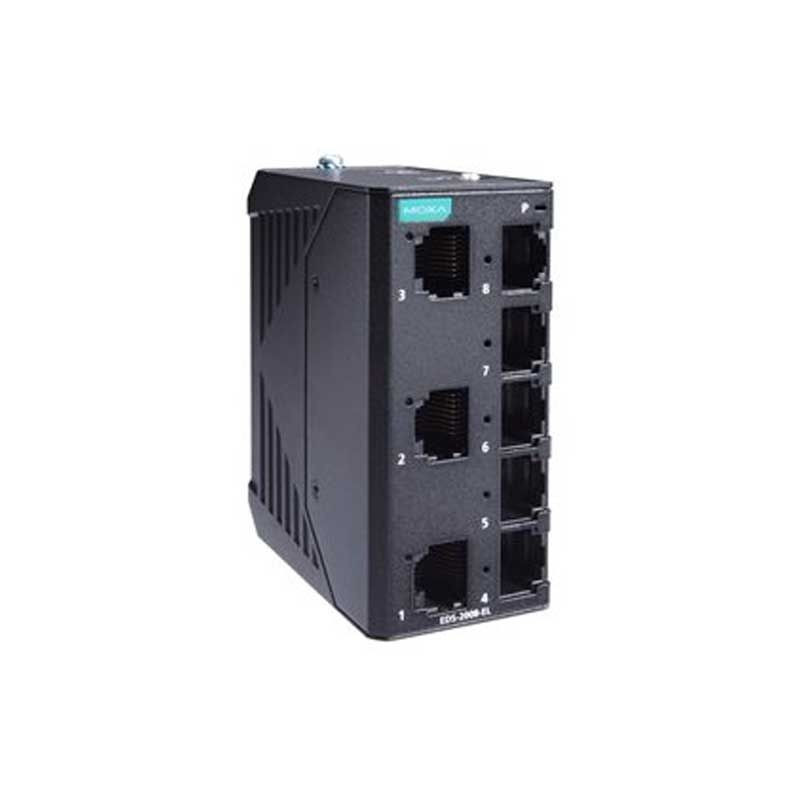

MOXA switch EDS-2008-EL with 8 ports 10-100
$166.00
The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.
The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
switch
100 Items
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 8
- Port speed
- 10-100
- Uplink port
- 1
- Uplink Port speed
- 10/100TX
- type of ports
- copper RJ45
- type of uplink ports
- copper RJ45 , MM , SM ST
- Power over Ethernet
- No
- Switch power consumption
- 9-56VDC
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 8 |
| Port speed | 10-100 |
| Uplink port | 1 |
| Uplink Port speed | 10/100TX |
| type of ports | copper RJ45 |
| type of uplink ports | copper RJ45, MM , SM ST |
| Power over Ethernet | No |
| Switch power consumption | 9-56VDC |
| Operation temperature | -40 / +75 C |
The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.
