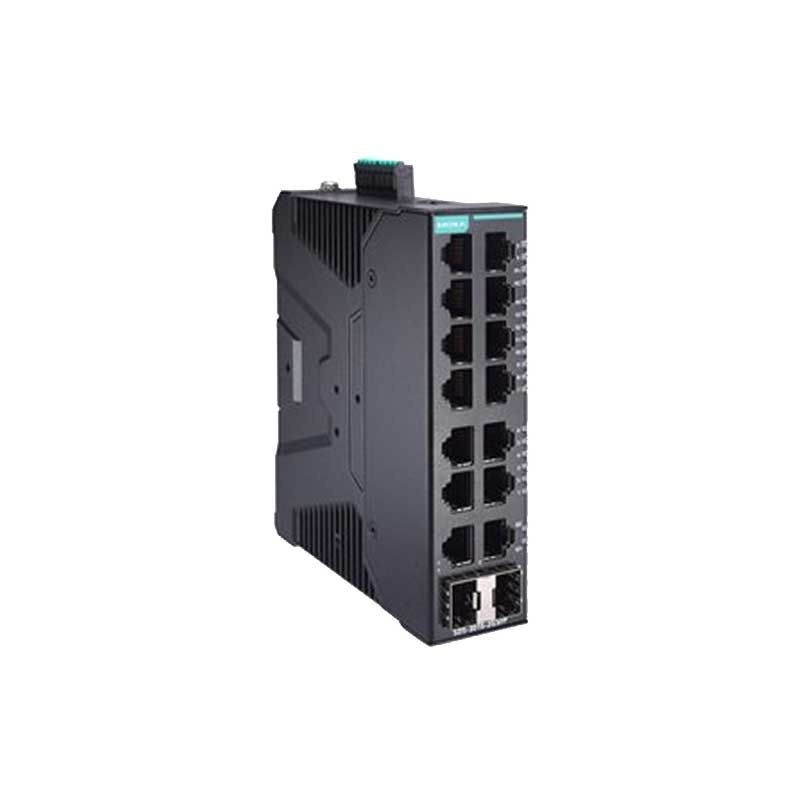

MOXA SDS-3016 Industrial 16-port smart switches with 2-port Gigabit

The SDS-3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

Quantity

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.

Additional Features and Benefits

Supports IEEE 802.1D-2004 and IEEE 802.1w STP/RSTP for rapid network redundancy
IEEE 802.1Q VLAN to ease network planning
Supports the ABC-02-USB automatic backup configurator for quick event log and configuration backup. Can also enable quick device switch over and firmware upgrade
Automatic warning by exception through relay output
Unused port lock, SNMPv3, and HTTPS to enhance network security
Role-based account management for self-defined administration and/or user accounts
Local log and the ability to export inventory files ease inventory management

switch

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
14
Port speed
10-100 , 10/100BASE-TX , 10/100TX
Uplink port
2 , 4
Uplink Port speed
10/100/1000BASE-T , 10/100/1000BASE-T TP , 1G
type of ports
copper RJ45
type of uplink ports
copper RJ45 , SFP
Power over Ethernet
No
Layer of switch
Layer 3 , QoS , VLAN
IP version
IPV4 , IPV6
Switch power consumption
9-56VDC
Operation temperature
-40 / +75 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 14
Port speed 10-100, 10/100BASE-TX, 10/100TX
Uplink port 2, 4
Uplink Port speed 10/100/1000BASE-T, 10/100/1000BASE-T TP, 1G
type of ports copper RJ45
type of uplink ports copper RJ45, SFP
Power over Ethernet No
Layer of switch Layer 3, QoS, VLAN
IP version IPV4, IPV6
Switch power consumption 9-56VDC
Operation temperature -40 / +75 C
