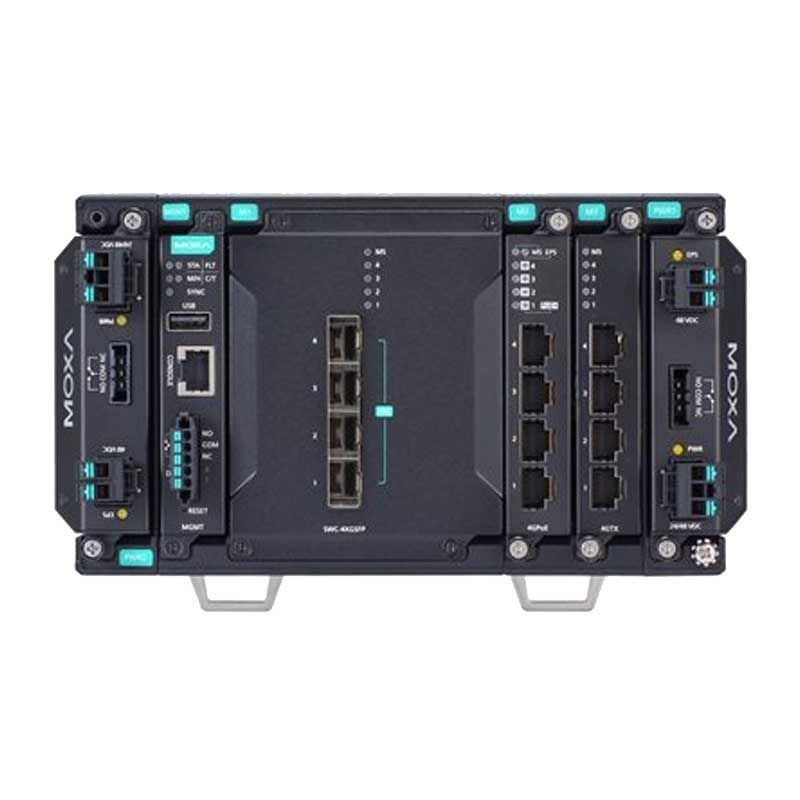

MOXA MDS-G4012-L3-4XGS 4X10G+8G-port Layer 3 Gigabit modular switch
  • MOXA MDS-G4012-L3-4XGS 4X10G+8G-port Layer 3 Gigabit modular switch
  • MOXA MDS-G4012-L3-4XGS 4X10G+8G-port Layer 3 Gigabit modular switch
  • MOXA MDS-G4012-L3-4XGS 4X10G+8G-port Layer 3 Gigabit modular switch

MOXA MDS-G4012-L3-4XGS 4X10G+8G-port Layer 3 Gigabit modular switch

The MDS-G4012-L3-4XGS Series modular switches support 4 10GbE + 8 Gigabit ports, including 4 embedded ports, 2 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4012-L3-4XGS Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.

Quantity

Configurator



Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

Thumbnail Alt

next






next







components list


SFP type
Not selected
Power and Fans
Not selected
Delivery
Not selected
Discount: $
Product with this customization

$0.00

x
You must fill all the customization options before to make the order

The multiple Ethernet modules (RJ45 and SFP) and power units (24/48 VDC and 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4012-L3-4XGS Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and a highly durable housing, the MDS-G4012-L3-4XGS Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual LV or HV power modules provides redundancy for high reliability and availability and also offers flexibility to accommodate the power requirements of different applications.

Support for Layer 3 routing functionality enables these switches to facilitate the deployment of applications across different networks, making them ideal for large-scale industrial networks. In addition, the MDS-G4012-L3-4XGS Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.



switch

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
8
Port speed
10/100/1000BASE-T , 10-100-1000 , 1G
Uplink port
4
Uplink Port speed
10G
type of ports
copper RJ45
type of uplink ports
SFP
Power over Ethernet
Yes
Type of POE
IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W , POE , POE+
Layer of switch
Layer 3 , QoS , VLAN
IP version
IPV4 , IPV6
Switch power consumption
9-56VDC
Operation temperature
-40 / +75 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 8
Port speed 10/100/1000BASE-T, 10-100-1000, 1G
Uplink port 4
Uplink Port speed 10G
type of ports copper RJ45
type of uplink ports SFP
Power over Ethernet Yes
Type of POE IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W, POE, POE+
Layer of switch Layer 3, QoS, VLAN
IP version IPV4, IPV6
Switch power consumption 9-56VDC
Operation temperature -40 / +75 C
