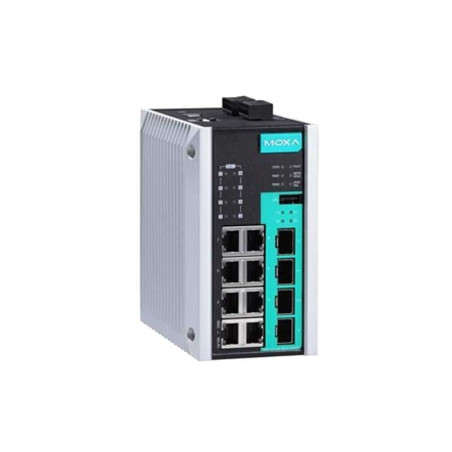

MOXA EDS-G512E Ethernet switches with 12G-port and 4 SFP
The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
Additional Features and Benefits
- Command line interface (CLI) for quickly configuring major managed functions
- Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
- Port mirroring for online debugging
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- Port Trunking for optimum bandwidth utilization
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for proactive and efficient network monitoring
- Bandwidth management to prevent unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Automatic warning by exception through email and relay output
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 8 , 12
- Port speed
- 10-100-1000 , 1G , 10/100/1000BASE-T TP , 10/100/1000BASE-T
- Uplink port
- 4
- Uplink Port speed
- 1G , 10/100/1000BASE-T , 10/100/1000BASE-T TP
- type of ports
- copper RJ45
- type of uplink ports
- SFP
- Power over Ethernet
- Yes
- Type of POE
- POE , POE+ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W
- Layer of switch
- Layer 3 , VLAN , QoS
- Switch power consumption
- 9-56VDC
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
---|---|
Type of switch | Industrial, Military |
Number of ports | 8, 12 |
Port speed | 10-100-1000, 1G, 10/100/1000BASE-T TP, 10/100/1000BASE-T |
Uplink port | 4 |
Uplink Port speed | 1G, 10/100/1000BASE-T, 10/100/1000BASE-T TP |
type of ports | copper RJ45 |
type of uplink ports | SFP |
Power over Ethernet | Yes |
Type of POE | POE, POE+, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W |
Layer of switch | Layer 3, VLAN, QoS |
Switch power consumption | 9-56VDC |
Operation temperature | -40 / +75 C |
