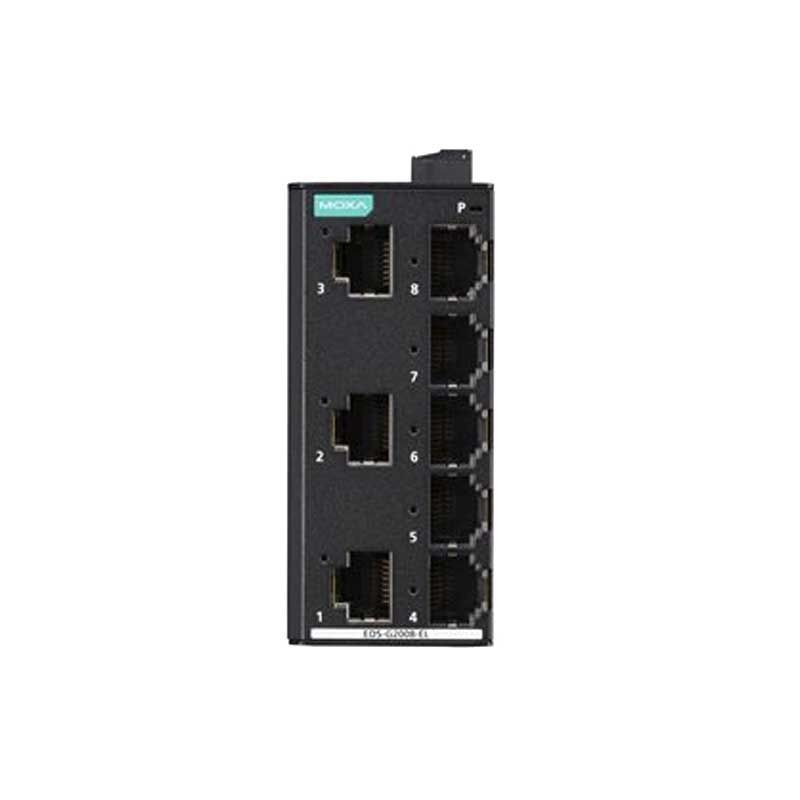

MOXA EDS-G2008-EL 8-port unmanaged Gigabit Ethernet switches
The EDS-G2008-EL series of industrial Ethernet switches have up to eight Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-G2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-G2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
switch
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 8
- Port speed
- 10-100 , 10/100BASE-TX , 10/100TX
- Uplink Port speed
- 10/100BASE-TX , 10/100TX
- type of ports
- copper RJ45
- type of uplink ports
- copper RJ45
- Power over Ethernet
- No
- Layer of switch
- Layer 2
- Switch power consumption
- 9-56VDC
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 8 |
| Port speed | 10-100, 10/100BASE-TX, 10/100TX |
| Uplink Port speed | 10/100BASE-TX, 10/100TX |
| type of ports | copper RJ45 |
| type of uplink ports | copper RJ45 |
| Power over Ethernet | No |
| Layer of switch | Layer 2 |
| Switch power consumption | 9-56VDC |
| Operation temperature | -40 / +75 C |
The EDS-G2008-EL series of industrial Ethernet switches have up to eight Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
