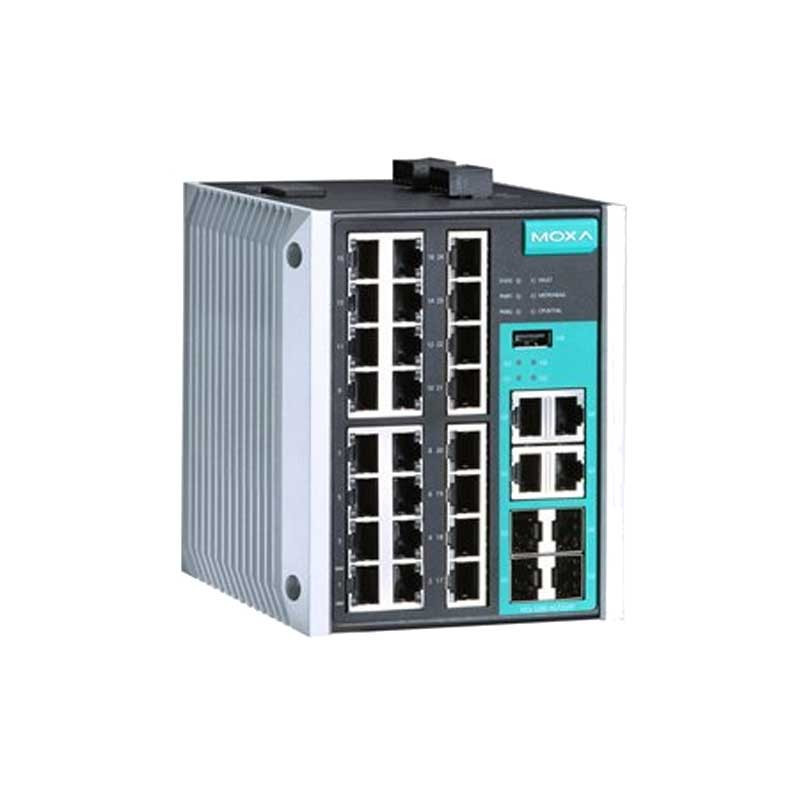

MOXA EDS-528E managed switches with 4 Gigabit combo and 24 fast Ethernet ports

The EDS-528E standalone, compact 28-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 24 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-528E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies, Turbo Ring, Turbo Chain, RSTP/STP, and MSTP, increase the system reliability and availability of your network backbone. The EDS-528E also supports advanced management and security features.

Quantity

In addition, the EDS-528E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.

Additional Features and Benefits

  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Automatic warning by exception through email and relay output
  • Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
switch

Data sheet content

Switch-Router

Type of switch
Industrial , Military
Number of ports
24
Port speed
10-100 , 10/100BASE-TX , 10/100TX
Uplink port
4
Uplink Port speed
10/100/1000BASE-T , 10/100/1000BASE-T TP , 1G
type of ports
copper RJ45
type of uplink ports
copper RJ45 , SFP
Power over Ethernet
No
Layer of switch
Layer 2 , Layer 3 , QoS , VLAN
IP version
IPV4 , IPV6
Switch power consumption
9-56VDC
Operation temperature
-40 / +75 C

16 other products in the same category

Specifications

Switch-Router

Type of switch Industrial, Military
Number of ports 24
Port speed 10-100, 10/100BASE-TX, 10/100TX
Uplink port 4
Uplink Port speed 10/100/1000BASE-T, 10/100/1000BASE-T TP, 1G
type of ports copper RJ45
type of uplink ports copper RJ45, SFP
Power over Ethernet No
Layer of switch Layer 2, Layer 3, QoS, VLAN
IP version IPV4, IPV6
Switch power consumption 9-56VDC
Operation temperature -40 / +75 C
