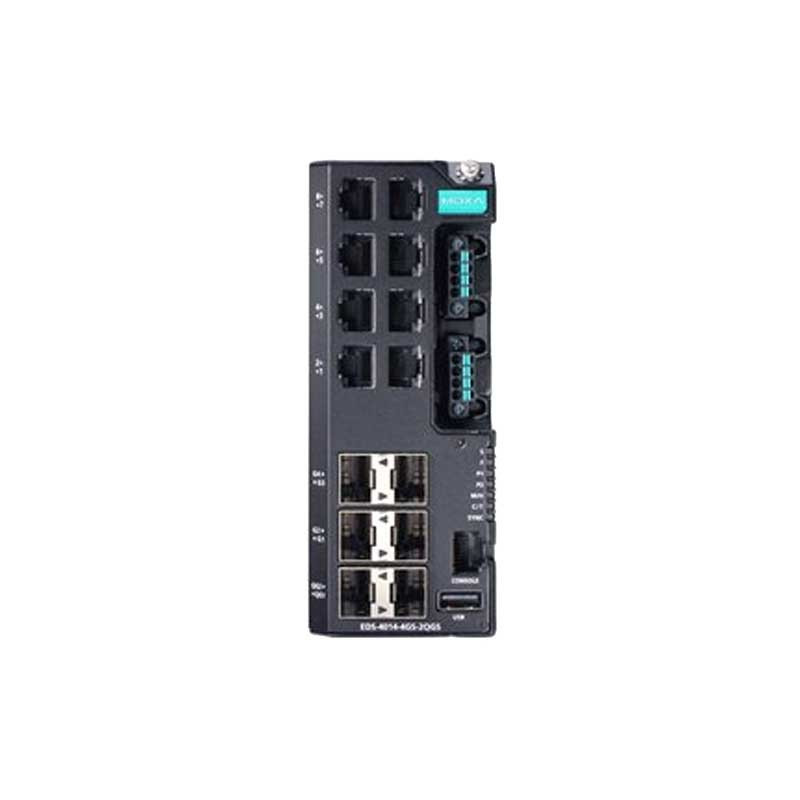

MOXA EDS-4014 8+4G+2 2.5GbE-port managed Ethernet switches
The EDS-4014 Series is a range of 14-port managed Fast Ethernet switches with four 1 Gbps and two 2.5 Gbps fiber-optic ports.Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4014 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
switch
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 8
- Port speed
- 10/100/1000BASE-T , 10-100-1000 , 1G
- Uplink port
- 4 , 6
- Uplink Port speed
- 10/100/1000BASE-T , 10/100/1000BASE-T TP , 1G , 2.5G
- type of ports
- copper RJ45
- type of uplink ports
- SFP , SFP+
- Layer of switch
- Layer 3 , QoS , VLAN
- IP version
- IPV4 , IPV6
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 8 |
| Port speed | 10/100/1000BASE-T, 10-100-1000, 1G |
| Uplink port | 4, 6 |
| Uplink Port speed | 10/100/1000BASE-T, 10/100/1000BASE-T TP, 1G, 2.5G |
| type of ports | copper RJ45 |
| type of uplink ports | SFP, SFP+ |
| Layer of switch | Layer 3, QoS, VLAN |
| IP version | IPV4, IPV6 |
| Operation temperature | -40 / +75 C |
The EDS-4014 Series is a range of 14-port managed Fast Ethernet switches with four 1 Gbps and two 2.5 Gbps fiber-optic ports.Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
