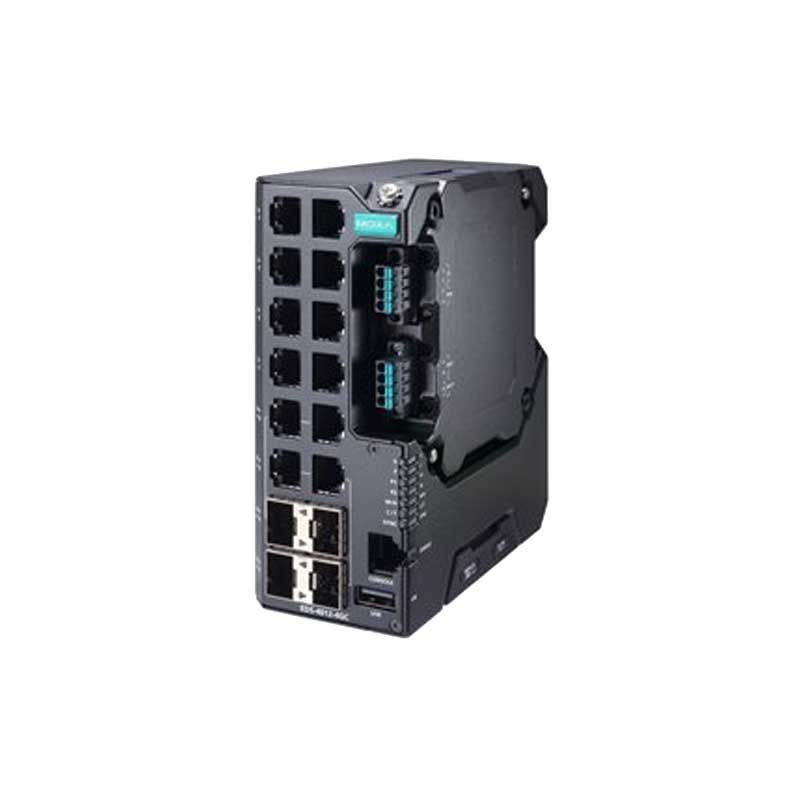

MOXA EDS-4012 8+4G-port managed POE Ethernet switches
The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
switch
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 12 , 8
- Port speed
- 10-100 , 10/100TX
- Uplink port
- 4
- Uplink Port speed
- 10/100/1000BASE-T , 10/100/1000BASE-T TP , 1G
- type of ports
- copper RJ45
- type of uplink ports
- SFP
- Power over Ethernet
- Yes
- Type of POE
- IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W , IEEE 802.3bt - 60.0W , IEEE 802.3bt - 99.9W , POE , POE+ , POE++
- Layer of switch
- Layer 2 , Layer 3
- IP version
- IPV4 , IPV6
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 12, 8 |
| Port speed | 10-100, 10/100TX |
| Uplink port | 4 |
| Uplink Port speed | 10/100/1000BASE-T, 10/100/1000BASE-T TP, 1G |
| type of ports | copper RJ45 |
| type of uplink ports | SFP |
| Power over Ethernet | Yes |
| Type of POE | IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W, IEEE 802.3bt - 60.0W, IEEE 802.3bt - 99.9W, POE, POE+, POE++ |
| Layer of switch | Layer 2, Layer 3 |
| IP version | IPV4, IPV6 |
| Operation temperature | -40 / +75 C |
The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
