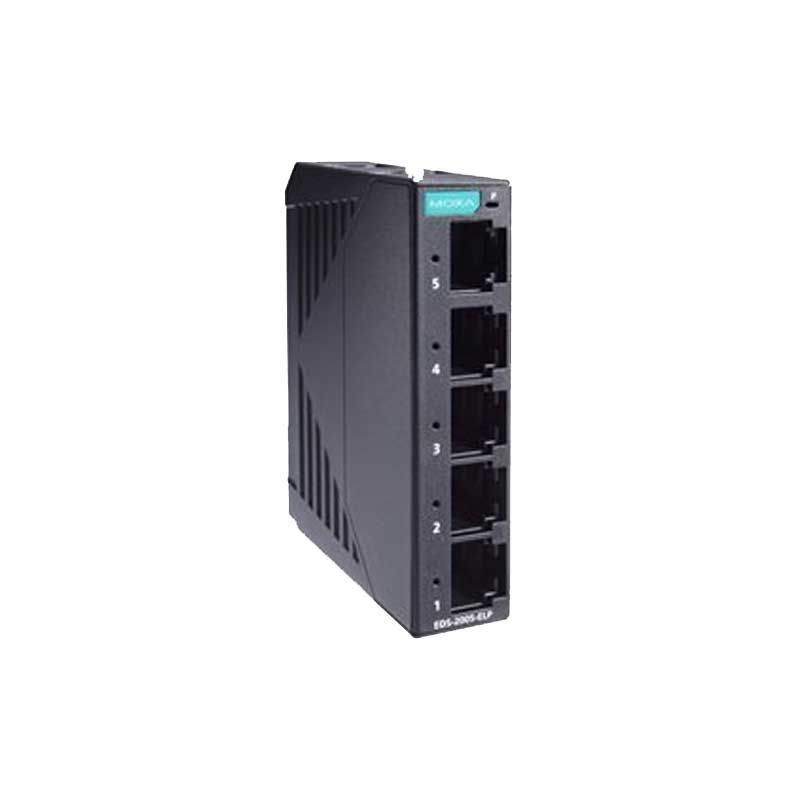

5-port MOXA unmanaged Ethernet switches
$99.00
The EDS-2005-ELP series of industrial Ethernet switches have five 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.
The EDS-2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C.
switch
100 Items
Data sheet content
Switch-Router
- Type of switch
- Industrial , Military
- Number of ports
- 5
- Port speed
- 10-100
- Uplink Port speed
- 10/100TX
- type of ports
- copper RJ45
- type of uplink ports
- copper RJ45
- Power over Ethernet
- No
- Layer of switch
- Layer 2
- Operation temperature
- -40 / +75 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Type of switch | Industrial, Military |
| Number of ports | 5 |
| Port speed | 10-100 |
| Uplink Port speed | 10/100TX |
| type of ports | copper RJ45 |
| type of uplink ports | copper RJ45 |
| Power over Ethernet | No |
| Layer of switch | Layer 2 |
| Operation temperature | -40 / +75 C |
The EDS-2005-ELP series of industrial Ethernet switches have five 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.
