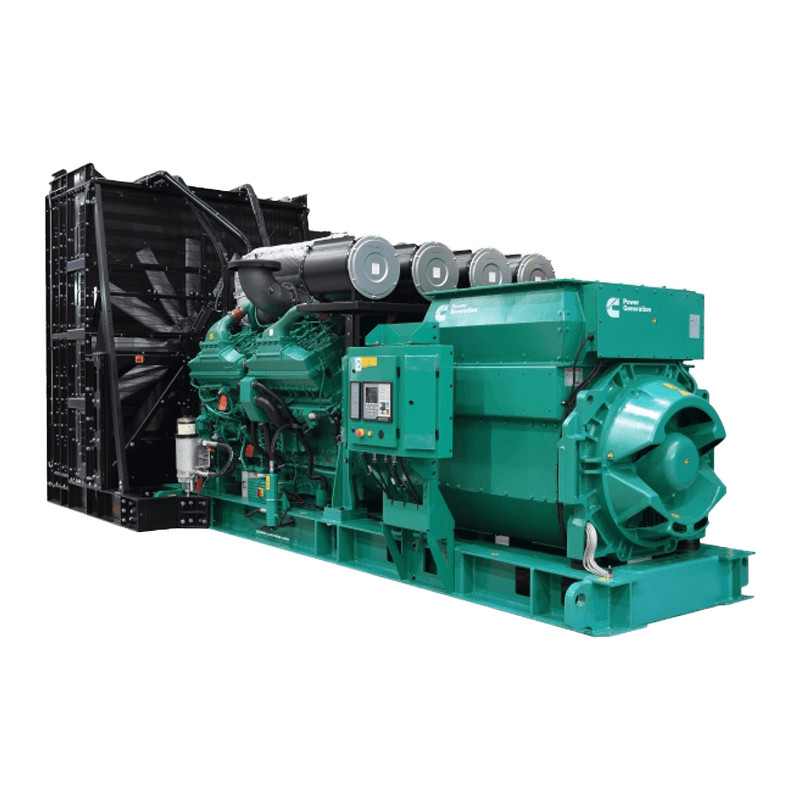

QSK60-G8-C2250D5P-PC3.3 Cummins Diesel Generator

It can act as a powerful support source in case of power outage.

In general, Cummins QSK60 Diesel Generator is considered as a reliable and stable power source for various industries, with high power, strong performance and strong structure.

This Cummins Power Generation commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications.

Features

 Cummins Heavy-Duty Engine - Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.

Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class F or H insulation.

Control System - Standard PowerCommand electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentry protection, output metering, auto-shutdown.

Cooling System - Standard integral set-mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.

Warranty and Service - Backed by a comprehensive warranty and worldwide distributor network.

Specifications

• Design: 4 cycle, V-block, turbo charged low temperature and after-cooled
• Bore: 158.8 mm
• Stroke: 190 mm (7.48 in.)
• Displacement: 60.2 L (3673 in.3)
• Cylinder block: Cast iron, V16
• Battery capacity: 2200 amps at ambient temperature 0°F to 32°F (-18°C to 0°C)
• Battery charging alternator: 40 amps
• Starting voltage: 24 volts, negative ground
• Fuel system: Direct injection
• Ignition system: Individual coil on plug
• Air cleaner type: Dry replaceable element
• Lube oil filter type(s): Four spin-on, combination full flow and bypass filters
• Standard cooling system: 104°F (40°C) ambient radiator

This generator set is available with CE certification.

All enclosed products are designed to meet or exceed EU noise legislation 2000/14/EC step 2006.

This generator set has been designed to comply with ISO8528 regulation.

This generator set is designed in facilities certified to ISO9001 and manufactured in facilities certified to ISO9001 or ISO9002.

Control System - PCC3201

The PowerCommand 3201 Control is a microprocessorbased generator set monitoring, and control system.

The control provides an operator interface to the genset, digital voltage regulation, digital governing and generator set protective functions.

The PowerCommand 3201 generator set control is suitable for use on a wide range of generator sets in nonparalleling and paralleling applications.

The PowerCommand Control can be configured for any frequency, voltage and power connection configuration from 120 to13,800 VAC for for 50Hz or 60Hz operation.

Power for the control is derived from the generator set starting batteries. The control functions over a voltage range from 8VDC to 35VDC.

Major Features

• Digital Full Authority Electronic Engine Controls for Cummins HPI-PT fuel systems.
• Digital Voltage Regulation with 3-phase sensing.
• AmpSentry Protection for true alternator overcurrent protection.
• Analog and Digital AC Output Metering.
• Battery Monitoring System to sense and warn against a weak battery condition.
• Digital Alarm and Status Message Display.
• Generator set Monitoring: Displays status of all critical engine and alternator generator set functions.
• Smart Starting Control System: Integrated fuel ramping to limit black smoke and frequency overshoot.
• Advanced Serviceability using InPower, a PC-based software service tool.

Control System

Includes all functions to locally or remotely start and stop, and protect the generator set.
