Huawei XGSF Service Board
  • Huawei XGSF Service Board

Huawei XGSF Service Board

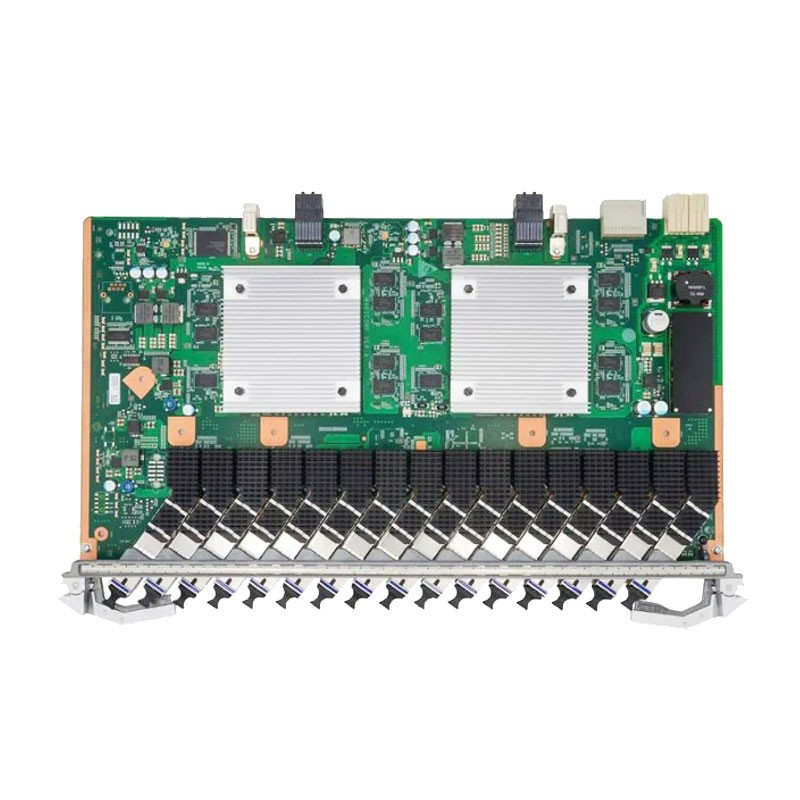

Huawei XGSF Service Board is a 16-port XG-PON interface board. It works together with the optical network unit (ONU) to provide XG-PON access services. This board is used for Huawei MA5800 Series OLT equipment.

Quantity

High Density,energy Saving,low power consumption,support 2048 access users
Manual shutdown of idle PON port to avoid power waste
Supporting the maximum distance difference between two ONUs and PON ports under the same PON port
40 km,simplified network planning
Intelligent Management Channel
Level 4 HQoS to Improve User Experience
9216 Jumbo frame,greatly improving transmission efficiency
Easy to operate and maintain
Real-time hooligans ONU detection and isolation to ensure stable operation of service
Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time

Data sheet content

OLT-ONU

1.Type of device
OLT module
1. Type of Use
General
1. Device protocol
10G EPON , CATV , EPON , GE P2P , GPON , XG-PON
1. Number of Access Port
16
1.Speed of access port
1.2G-2.4G Gpon/Epon , 10G , 1G
1. Supported services
Hone application , Internet , IPTV , QOS , VOIP

16 other products in the same category

Specifications

OLT-ONU

1.Type of device OLT module
1. Type of Use General
1. Device protocol 10G EPON, CATV, EPON, GE P2P, GPON, XG-PON
1. Number of Access Port 16
1.Speed of access port 1.2G-2.4G Gpon/Epon, 10G, 1G
1. Supported services Hone application , Internet, IPTV, QOS, VOIP
