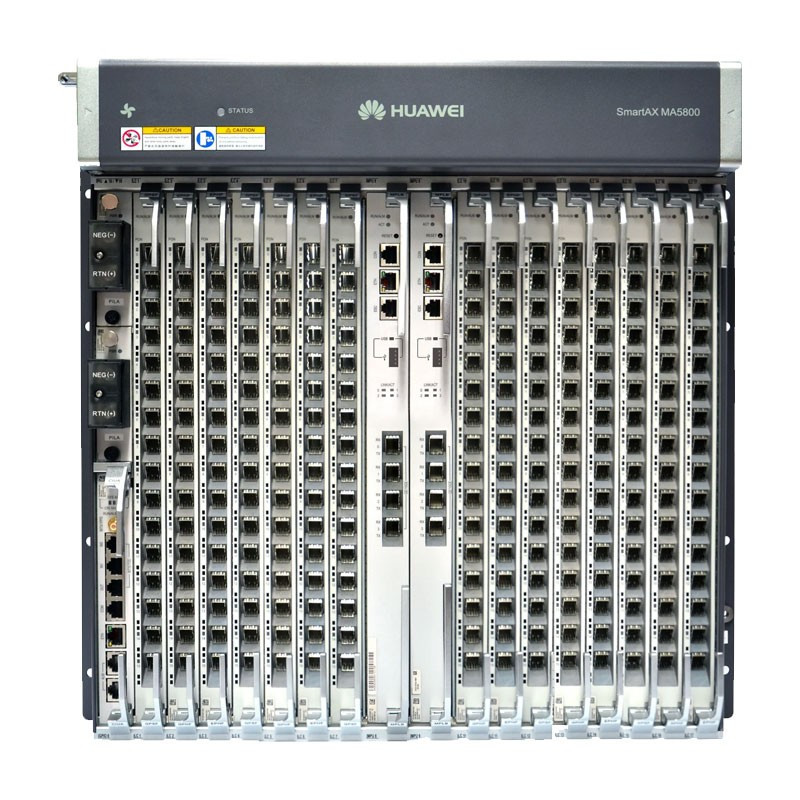

Huawei SmartAX MA5800 X17 OLT Product Feature

Best 4K/8K/VR video experience

Huawei SmartAX MA5800 X17 OLT can meet 16,000 homes and enjoy ultra-high-definition 4K/8K/VR video online. By using a distributed cache, with larger cache and video burst absorption capability, therefore help 4K/8K/VR video quick start or channel switching

Multi-service virtualization common platform

Huawei SmartAX MA5800 X17 OLT has the intelligence and virtualization capabilities to logically fragment devices and network resources, virtualize one OLT into multiple OLTs, and assign different virtual OLTs to different services such as homes. , enterprise, Internet of Things and other multi-service intelligent operations.

Distributed architecture

Huawei SmartAX MA5800 X17 OLT is the industry’s first distributed architecture OLT. The single-slot can support 16-port 10GPON non-blocking access. It can smoothly evolve to support 50G PON. It can realize forwarding functions such as MAC and IP address without replacing the main control board.
Huawei SmartAX MA5800 X17 OLT Service Board

MPLA*2 (with 4 10G ports)
DC power:PILA*2
16 ports 1G GPON board:GPHF and GPSF
16 ports 1G EPON board:EPHF
8 ports 10G GPON board:XGLD and XGHD
8 ports 10G EPON board:XELD and XEHD

Switching capacity of the system     7 Tbit/s
Maximum bandwidth per slot     H901MPLB: 200 Gbit/s
H901MPLA: 100 Gbit/s
Maximum number of MAC address     262144
Maximum number of ARP/routing entries     65536
Maximum number of concurrent 4K video users     16000
GPON ports     272
10G GPON ports     136
GE/FE ports     816
10GE ports     136
Cabinet supported     N63E-22


Universal interface board
CIUA     Provides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.
Service board
GPHF     Provides 16 GPON ports for access services
GPSF     Provides 16 GPON ports for home access services
CGHF     Provides 16-port XG-PON and GPON Combo ports for home access services
CSHF     Provides 16-port XGS-PON and GPON Combo ports for home access services
FLHF      Provides GPON, XG(S)-PON, and XG(S)-PON&GPON Combo ports for home access services
XGHD     Provides 8 asymmetric 10G GPON ports for access services.
TWED     Provides 8 symmetric 10G GPON ports for access services.
EDSH     32-channel E1 upstream board, supporting native TDM mode.
OGHK     48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
OXHD     8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
Power board
PILA     Provides -48V DC input
Fan Monitoring board
FMLA     Supplier power to fans; controls and moniotes the fans
FMMA     Supplier power to fans; controls and moniotes the fans
Dimensions
(W x D x H) (mm)     11 U high and 21 inch wide
Excluding mounting brackets: 493x287x 486
Including mounting brackets: 535x287x486
Maximum weight(including mounting brackets)     45 kg
Maximum input current     60 A
Power supply     Power supply mode: DC
Working voltage range: -38.4 V to -72 V
Rated voltage: -48 V / -60 V
Ambient temperature     -40°C to +65°C The MA5800 can start up at a lowest
The MA5800 can start up at a lowest temperature of -25°C and run at -40°C.
Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
