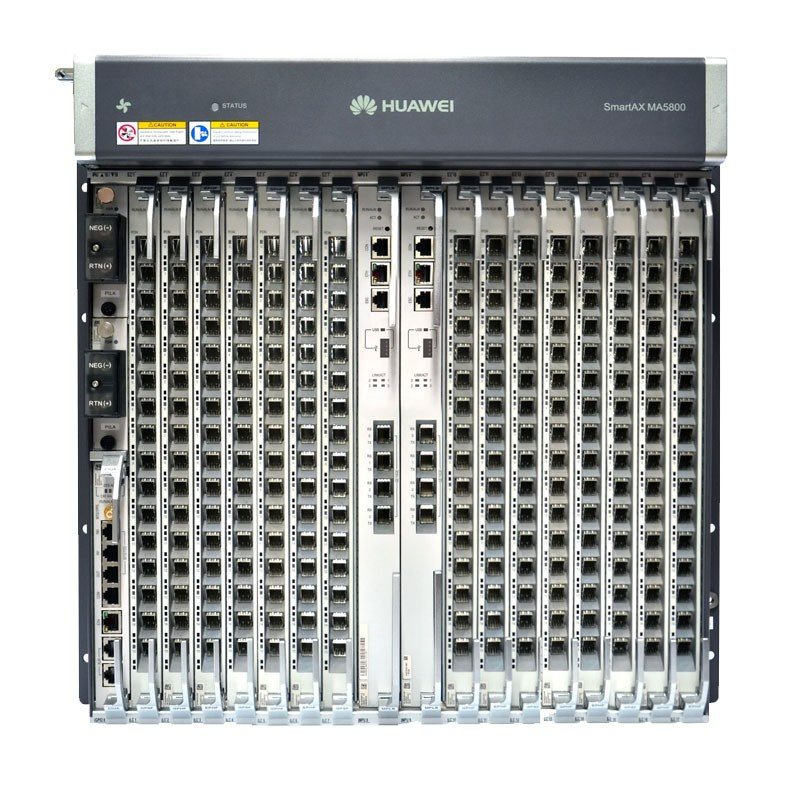

Huawei SmartAX MA5800-X15 OLT
MA5800-X15 is the industry's first intelligent aggregation OLT with a distributed architecture that is positioned as the next-generation OLT for NG-PON. The product is designed to help operators create networks with more bandwidth, higher speeds and smarter connectivity with better service. The OLT terminal provides access to GPON, 10G PON, including XG-PON and XGS-PON, and P2P 10GE/GE. It supports deployment in FTTH, FTTD, FTTB, and FTTC networks , and is applicable in scenarios such as home access, enterprise access, and wireless Internet access to combine all services into a single fiber network. The MA5800-X15 functions as a high capacity aggregation device in the network.
The Huawei MA5800-X15 chassis can be mounted in a 19" wide c-rack. The modular platform is equipped with slots for service card installation, allowing up to 15 modular GPON cards of 16 ports each to be installed. The hardware and software ma5800-X2, MA5800-X7, MA5800-X15 and MA5800-X17 are compatible.
Huawei OLT GPON MA5800-X15 6RU chassis included: Two MPLA control modules (4 SFP/SFP 1/10g ports each) Two PILA power supplies at 48V. Fan assembly
Switching capacity
of the system 7 Tbit/s
Maximum bandwidth
per slot H901MPLB: 200 Gbit/s
H901MPLA: 100 Gbit/s
Maximum number
of MAC address 262143
Maximum number of ARP/routing entries 65536
Maximum number of concurrent 4K video users 16000
GPON ports 240
10G GPON ports 120
GE/FE ports 720
10GE ports 120
Cabinet supported N63E-22
Control Board
MPLB It provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board
MPLA
CKUA Supports stratum-3 clock functions by working with MPLB and MPLA
Upstream interface board
NXED Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough.
Universal interface board
CIUA Provides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.
Service board
GPHF Provides 16 GPON ports for access services
GPSF Provides 16 GPON ports for home access services
CGHF Provides 16-port XG-PON and GPON Combo ports for home access services
CSHF Provides 16-port XGS-PON and GPON Combo ports for home access services
XGHD Provides 8 asymmetric 10G GPON ports for access services.
TWED Provides 8 symmetric 10G GPON ports for access services.
EDSH 32-channel E1 upstream board, supporting native TDM mode.
OGHK 48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
OXHD 8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
Power board
PILA Provides -48V DC input
Fan Monitoring board
FMLA Supplier power to fans; controls and moniotes the fans
FMMA Supplier power to fans; controls and moniotes the fans
Maximum weight(including mounting brackets) 35 kg
Maximum input current 60 A
Power supply Power supply mode: DC
Working voltage range: -38.4 V to -72 V
Rated voltage: -48 V / -60 V
Ambient temperature -40°C to +65°C The MA5800 can start up at a lowest
The MA5800 can start up at a lowest temperature of -25°C and run at -40°C.
Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
Ambient humidity 5% RH to 95% RH
Data sheet content
OLT-ONU
- 1.Type of device
- OLT
- 1. Type of Use
- General
- 1. Device protocol
- EPON , GPON , XG-PON , XGS-PON , 10G EPON , GE P2P , E1 , CATV
- 1. Number of Access Port
- 240
- 1.Speed of access port
- 1.2G-2.4G Gpon/Epon , 10G , 1G
- 1. Number of Uplink Port
- 8
- 1. speed of uplink port
- 1G , 10G , 40G , 100G
- 1. Supported services
- IPTV , VOIP , Internet , Hone application , QOS
- 1. Switching capacity
- 7T
- 1. Slots for control cards
- 2
- 1. Slots for power cards
- 1 , power redundant
- 1.Slots for service cards
- 15
16 other products in the same category
Specifications
OLT-ONU | |
|---|---|
| 1.Type of device | OLT |
| 1. Type of Use | General |
| 1. Device protocol | EPON, GPON, XG-PON, XGS-PON, 10G EPON, GE P2P, E1, CATV |
| 1. Number of Access Port | 240 |
| 1.Speed of access port | 1.2G-2.4G Gpon/Epon, 10G, 1G |
| 1. Number of Uplink Port | 8 |
| 1. speed of uplink port | 1G, 10G, 40G, 100G |
| 1. Supported services | IPTV, VOIP, Internet, Hone application , QOS |
| 1. Switching capacity | 7T |
| 1. Slots for control cards | 2 |
| 1. Slots for power cards | 1, power redundant |
| 1.Slots for service cards | 15 |
