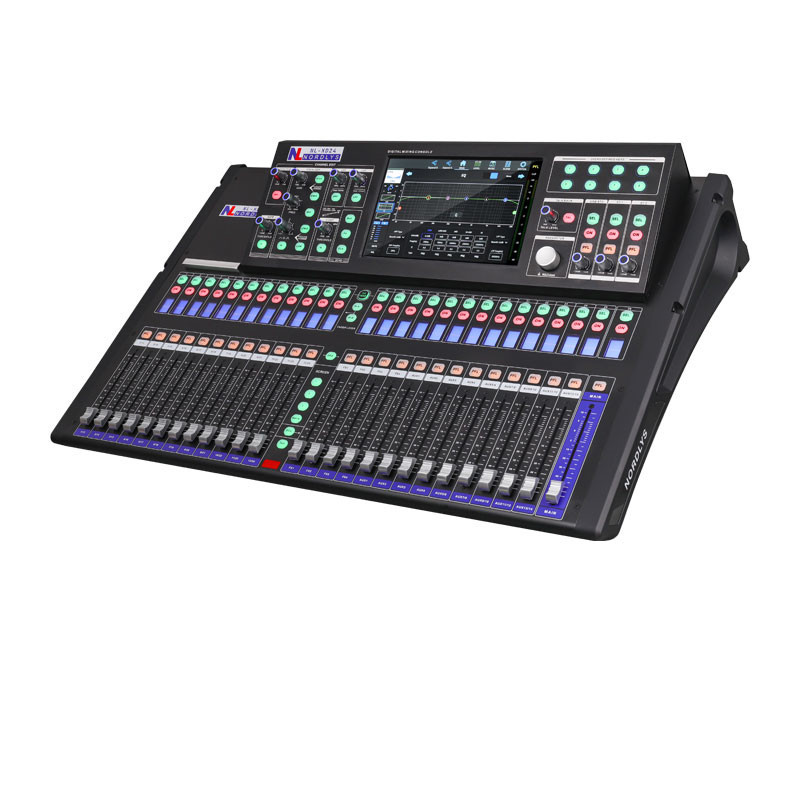

Product Description for NL-XD24

The NL-XD24 is a highly versatile and professional audio mixing console designed for advanced audio processing and control.

It is equipped with a wide range of features, making it suitable for live sound, studio recording, and complex audio setups.

Below is a detailed breakdown of its features and capabilities:

Key Features

Input/Output Configuration

36 Signal Inputs:

32 Analog Inputs (MIC/Line)

2 Sets of 3.5mm Stereo Inputs

1 Set of 3.5mm Stereo Headphone Inputs

1 Set of Digital Input (Sound Card, MP3, AES Digital Input)

20 Signal Outputs:

Main Output (L, R)

14 AUX1-14 Auxiliary Outputs

1 Earphone Monitoring Output

AES Digital Output

Expandability

Signal Remote Expansion:

Supports connection of two 16-in and 8-out stage interface boxes.

Maximum expansion up to 66 signal inputs and 40 signal outputs.

Dante Support:

Direct external Dante box connection.

Supports Dante signal input/output and multi-track recording.

Audio Processing and Control

Input Channel Feature

MIC Input Gain Adjustment:

Smooth digital gain control with scene-saving capability.

MIC Input Channel Linkage:

Supports parity or AB linkage for flexible channel control.

+48V Phantom Power:

Independently controllable for each MIC channel, with scene-saving capability.

Feedback Suppression:

Independent feedback suppression for each MIC input channel to effectively eliminate whistling.

Channel Processing:

Built-in limiter, noise gate, phase control, high/low-pass filter, 5-band parametric EQ, delay, and panning.

Fast Parameter Copy:

Quickly copy channel parameters for efficient setup.

Multi-Function Menu:

Each channel includes a multi-function menu with mute and monitor options.

Electric Faders:

26 ALPS 100mm motorized faders for precise control.

TFT Display:

26-channel TFT display for real-time monitoring and status updates.

Supports Chinese editing for channel names and background color customization.

Output Channel Features

Output Processing:

High/low-pass filter, 15-31 band parametric EQ (GEQ controllable via fader), compressor, delay, and phase control.

AUX Output Settings:

Configurable as pre-fader or post-fader.

User Interface and Control

Physical Fader Control:

Independent faders for input, output, and effect channels.

User-defined layer functions for each fader.

Fader Layer Navigation:

Two fader layer page-turning buttons for quick switching between input, output, and effect layers.

Customizable Physical Keys:

8 programmable physical keys for quick access to frequently used functions.

DCA and Mute Groups:

8 DCA groups and 8 mute groups for efficient channel management.

Integrated Feedback Suppressor Management:

Centralized control for feedback suppression.

Additional Features

Signal Generator:

Built-in generator for pink noise, positive basalt, and white noise.

Customizable output through any channel.

Real-Time Spectrum Analyzer (RTA):

Real-time spectrum display with editable color options.

Dual System Backup:

Supports synchronous data backup for redundancy.

Chinese Input Support:

Channel and scene editing supports Chinese input method.

Automatic Mixing:

Integrated automatic mixing function for simplified operation.

Talkback Function:

Built-in talkback functionality for communication.

MIDI Interface:

Supports MIDI input for external control.

Recording and Playback

USB Stereo Recording:

Direct stereo recording to USB.

Built-in Sound Card:

Connect mobile phones, iPads, MP3 players, or PCs for direct playback and recording.

Scene Management

Scene Presets:

8 quick scene call modes.

100 scene storage slots with customizable names.

Supports Chinese input for scene names.

Seamless Switching:

Scene transitions without audio interruption.

U Disk Import/Export:

Import and export scenes via USB drive.

Effects and Monitoring

Built-In DSP Effects:

4 independent DSP effects with preset modes.

FX Foot Switch Interface:

External foot switch support for effect control.

Headphone Monitoring:

Dedicated headphone output with independent monitoring.

Connectivity and Integration

12V Output:

Connect external lighting equipment.

Central Control Support:

232 central control integration for advanced system control.

Multi-OS Control Software:

Compatible with iOS, Android, and Windows for remote control.

Wired/Wireless Adjustment:

Wired network port or external router for wireless adjustment.

Miscellaneous

Factory Reset:

One-click restoration to factory settings.

Durable Design:

Robust construction for professional use.

Applications

Live sound reinforcement

Studio recording

Conference and event setups

Theater and performance venues

Broadcast and streaming

The NL-XD24 is a powerful and flexible audio mixing console designed to meet the demands of modern audio professionals,

 offering unparalleled control, expandability, and processing capabilities.
