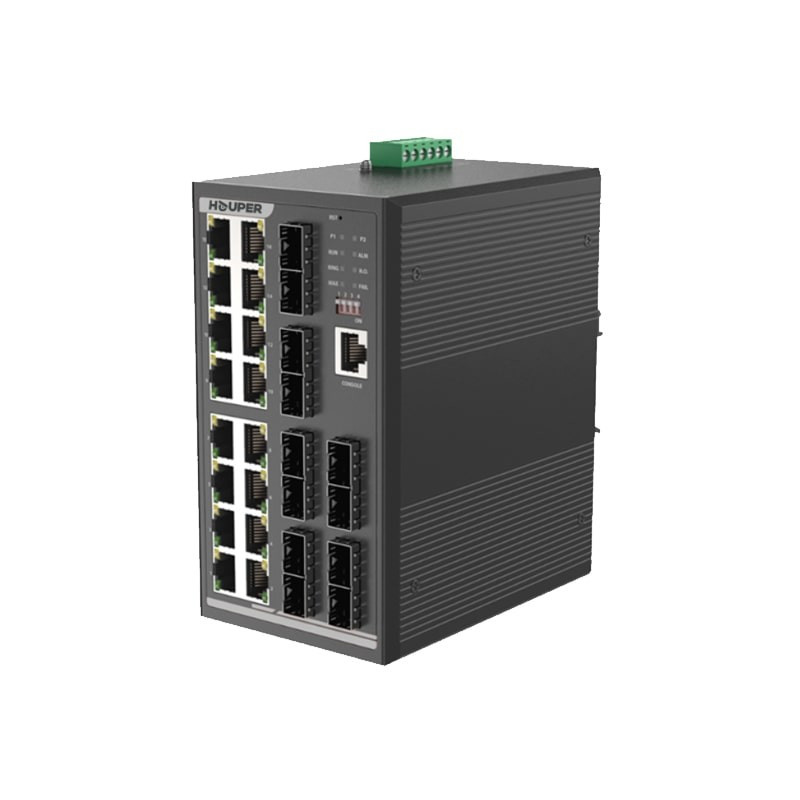

HOP3412S1228-12TP L2+ Managed Industrial Switch with 16XGE and 12XGE SFP

Product Features

• All-aluminum Case, Compact and Fanless Design
• -40 to 75C temperature maintains performance in extreme conditions
• DIN Rail and wall-mountable - quick to install and remove for maintenance
• Full gigabit L2+ management, easy to manage the industrial network by CLI/
• WebGUl/NMS.
• Build up a redundant network with STP/RSTP/ERPSv2
• RADIUS, SNMPv3, IEEE 802.1x, HTTPs, SSHv2 and sticky MAC address to enhance network security
• EherNet/IP and Modbus TCP protocols supported for device management and monitoring
• Electric 8KV surge protection Complete status indicator, working state at a glance
• Power input polarity protection design, no worry about wrong operation
• QoS, Priority mode based on 802.1 P, Port & DSCP,queue scheduling algorithm including Equ, SP,WRR&SP+WRR

Ethernet Interface

• ports: 16x10/100/1000M Base-TX RJ45 12x100/1000M Base-X SFP
• Port Mode(Tx):Auto Negotiation
• Full/Half Duplex Mode
• Auto MDI/MDI-X Connection

Standards:

• IEEE 802.3 for IOBaseT
• IEEE 802.3u for IOOBaseT(X) and IOOBaseFX
• IEEE 802.3ab for IOOOBaseT(X)
• IEEE 802.3z for 1 OOOBaseSX/LX/LHX/ZX
• IEEE for flow control
• IEEE 802.1 D-2004 for Spanning Tree Protocol
• IEEE 802. lw for Rapid Spanning Tree Protocol
• IEEE 802. Ip for Class of Service
• IEEE 802. IQ for VLAN Tagging
• e IEEE 802. IX for authentication
• IEEE 802.3ad for Port Trunk with I-ACP

• Packet Buffer Size: 4Mbits
• Maximum Packet Length: to 10K
• MAC Address Table: 08K
• Transmission Mode: Store and Forward (full/half duplex mode)
• Exchange Property: Delay time: < 7ps
• Backplane bandwidth: 56Gbps
• IGMP Group: 04096
• Max. No. ofVLAN: 256
• VLAN ID Range: VID 1 to 4094

Physical Characteristics

• Housing: Aluminum case
• IP Rating: IP40
• Dimensions: 155mmx128mmx88mm
• Installation: DIN Rail/WaII Mount
• Weight: 1.35kg

Environmental

• Operating Temperature (-40 to 167 OF)
• Operating Humidity (non-condensing)
• Storage Temperature (-40 to 185 OF)
• MTBF 907 ,476 hours @ Telcordia SR-332 Standard
• Heat Dissipation 65 BTU/h (non-PoE mode)
• Cooling Passive Cooling, Fanless Design
• Noise Level 0 dBA
• Power Supply:Power Consumption: 10 Watts Max
• Power Inputs: 2
• Input Voltage: 9-56VDC,Redundant dual inputs
• Connector: I removable 6-contact terminal blocks Pin 1/2 for Power I,
• Power 2, Pin 5/6 for fault alarm
• Protection: Overload Current Protection, Reverse Polarity Protection

Ethernet Software Features

• Redundancy Protocols: Support STP/RSTP/ERPSv2, Link Aggregation Pin 3/4 for Port-based Issuing ACL
• ACL based on port and VLAN
• 1.2 to L4 packet filtering, matching first 80 bytes message.
• Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP,
• IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

POE Management (Depending on model)

• e Total power limit of POE power supply
• POE output power allocation
• POE output priority configuration
• POE working status
• Scheduling of POE operation

Diagnostic Maintenance

• Support CLIS WEBS SNMPvI/v2/v3, Telnet server for management, EEE, LLDP, DHCP
• Server/Client(lPv4/lPv6), Cloud/MQTT
• Alarm Management: Support I way relay alarm output, RMON, TRAP

Security

• Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.O
• Support DHCP Snooping, Option 82, 802. IX security access,
• Support user hierarchical management, ACL access control list,
• Support DDOS, port-based MAC filtering / binding, MAC black holes, IP source
• protection, Port isolation, ARP message speed limit
• Multicast Support: Support IGMP Snooping VIN2/V3, support GMRP, GVMP,802. IQ
• VLAN Support IEEE 802. IQ 4K VLAN, support QINQ, Double VI-AN,
• Time Management: SNTP

QOS

• Flow-based redirection
• Flow-based rate limiting
• Flow-based packet filtering
• 8*Output queues of each port 802.1 p/DSCP priority mapping
• Diff-Serv QoS, Priority Mark/Remark
• Queue Scheduling Algorithm (SP, WRR, SP+WRR)
