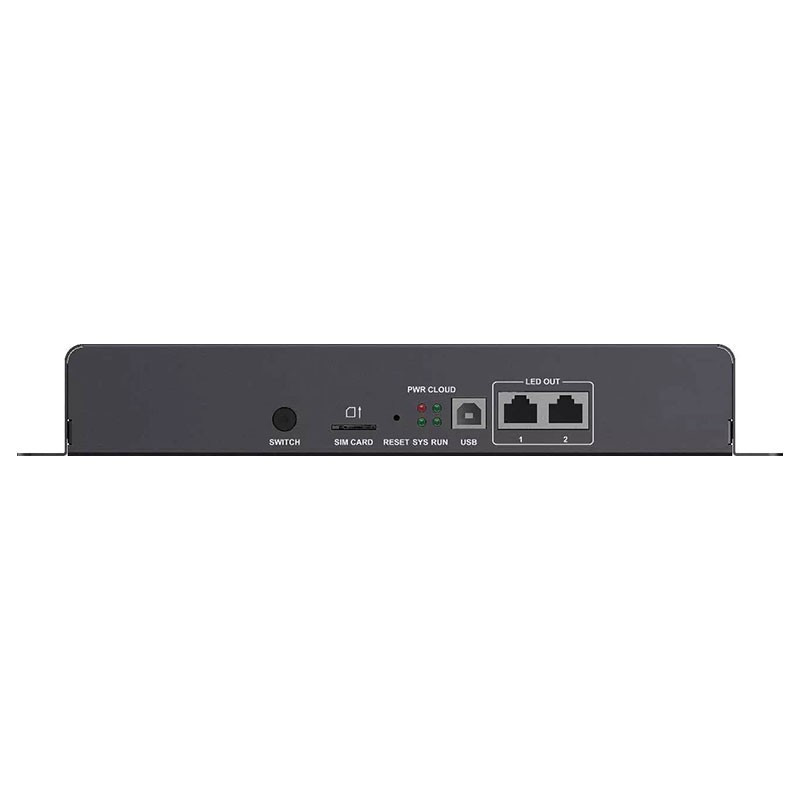

Novastar TV-88TB50 video divar Player

Output

Loading capacity up to 1,300,000 pixels

Maximum width: 4096 pixels

Maximum height: 4096 pixels

2x Gigabit Ethernet ports

These two ports serve as primary by default. Users can also set one as primary and the other as backup.

1x Stereo audio connector

The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.

1x HDMI 1.4 connector

Maximum output: 1080p@60Hz, support for HDMI loop

Input

1x HDMI 1.4 connector

In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.

2x sensor connectors

Connect to brightness sensors or temperature and humidity sensors.

Specifications

Control

1x USB 3.0 (Type A) port

Allows for USB playback and firmware upgrade over USB.

1x USB (Type B) port

Connects to the control computer for content publishing and screen control.

1x Gigabit Ethernet port

Connects to the control computer, a LAN or public network for content publishing and screen control.

Performance

Powerful processing capacity

− Quad-core ARM A55 processor @1.8 GHz

− Support for H.264/H.265 4K@60Hz video decoding

− 1 GB of onboard RAM

− 16 GB of internal storage

Flawless playback

2x 4K, 6x 1080p, 10x 720p, or 20x 360p video playback

Functionality

All-round control plans

− Enables users to publish content and control screens from a computer, mobile phone, or tablet.

− Allows users to publish content and control screens from anywhere, anytime.

− Allows users to monitor screens from anywhere, anytime.

Switching between Wi-Fi AP and Wi-Fi STA

− In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the TB50. The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.

− In Wi-Fi STA mode, the user terminal and the TB50 are connected to the Wi-Fi hotspot of a router.

Synchronous and asynchronous modes

− In asynchronous mode, the internal video source works.

− In synchronous mode, the video source input from the HDMI connector works.

Synchronous playback across multiple screens

− NTP time synchronization

− GPS time synchronization (The specified 4G module must be installed.)

− RF time synchronization (The specified RF module must be installed.)

Support for 4G modules

The TB50 ships without a 4G module. Users have to purchase 4G modules separately if needed.

Network connection priority: Wired network > Wi-Fi network > 4G network

When multiple types of networks are available, the TB50 will choose a signal automatically according to the priority.
