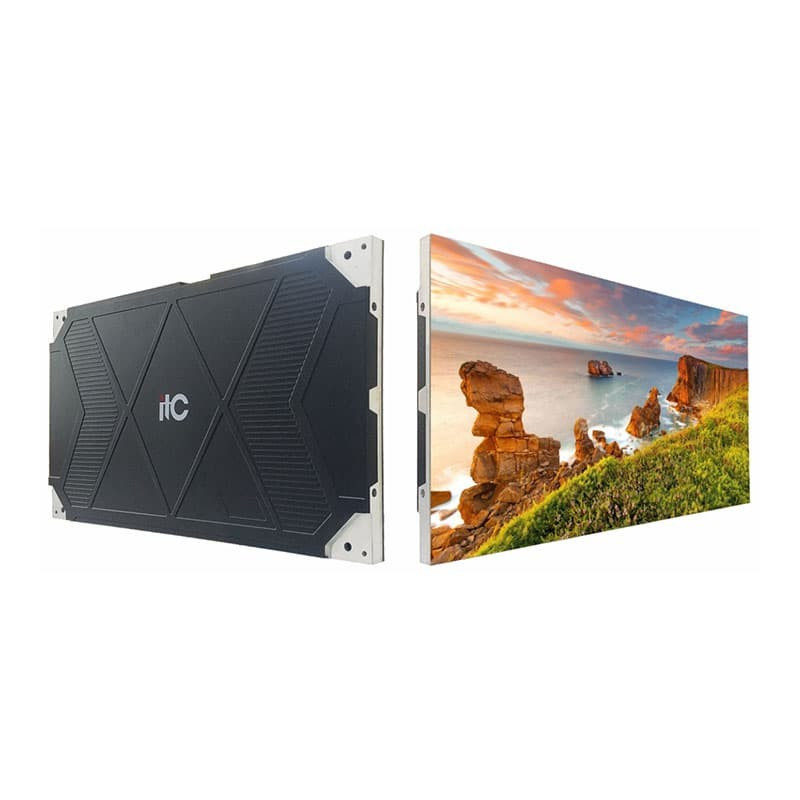

ITC TV-PX Daxili LED Video Divar
  • ITC TV-PX Daxili LED Video Divar
  • ITC TV-PX Daxili LED Video Divar

ITC TV-PX Daxili LED Video Divar

O, qüsursuz birləşdirmə, mükəmməl displey, uzun xidmət müddəti, sürətli kadr dəyişdirmə sürəti, yüksək yeniləmə dərəcəsi, yaxşı vahidlik, geniş baxış bucağı, yüksək boz şkalası, təbii rəng bərpası və s. xüsusiyyətlərinə malikdir. O, komanda və göndərmə, təhlükəsizlik monitorinqi, video konfransda geniş istifadə olunur , studiya ekranı və müxtəlif konfrans nümayişi halları.

Say

Series and models

YX series

YP series

YM series

YZ series

Feature:

  • It can be used for real-time scene monitoring, and various advertising playback.
  • It is seamlessly spliced without visual black seams at all.
  • The display module is flexible, and supports flat and curved smooth splicing.
  • DC low voltage power supply; natural heat dissipation, no fan and no operation noise.
  • When a failure occurs, it only needs to maintain a single LED lamp or a single module at very low maintenance cost but pretty high speed.
  • Support picture correction. The Gamma correction adopted enables pixel-by-pixel brightness color correction.
  • Support intelligent light control, intelligent brightness adjustment, improve picture comfort levels, more energy saving and power saving.
  • With ultra-wide viewing angle display. The display screen has a wider visual range, and the viewing picture from any angle is still clear.
  • With ultra-high refresh rate, good picture coherence and high fluency.
  • The picture is delicate and realistic, and the grayscale is still excellent in low brightness.
  • Support ultra HD display. Unique image quality enhancement technology effectively improves image clarity, making high-speed picture smooth without image nail.
  • Support integrating 3D, touch screen, somatosensory games, and other functions to improve entertainment and interactivity.
  • Wireless connection, clean and safe rear panel.
  • Hard connection, hot swap, convenient and fast.

ITC
Video Wall

Data sheet content

video divar

6. Best viewing distance
≥4.7m , ≥3.8m , ≥5.7m , ≥7.62m
6. Brightness
200~600CD/m² , 200~800CD/m²
6. Contrast
≥10000:1
6. Control mode
Synchronous control
6. Drive device
Constant current drive
6. Frame rate
≥60Hz
6. Graphics card
DVI/HDMI/DP
6. Grayscale
12/14/16bit
6. Lifespan
≥100000H
6. MTBF
≥20000H , ≥10000H
6. Operating temperature
-20℃~+60℃ , -10℃~+40℃
6. Operating voltage
DC+4.2V
6. Operating voltage(AC)
220V±10%/50Hz or 110V±10%/60Hz , 90V-270V(50Hz/60Hz)
6. Refresh rate
≥3840Hz
6. Scanning method
45S , 36S
6. Storage temperature
-35℃~+85℃
6.Failed rate
≤1/100000 and no continuous failed pixels , ≤1/10000 and no continuous failed pixels

Specifications

video divar

6. Best viewing distance ≥4.7m, ≥3.8m, ≥5.7m, ≥7.62m
6. Brightness 200~600CD/m², 200~800CD/m²
6. Contrast ≥10000:1
6. Control mode Synchronous control
6. Drive device Constant current drive
6. Frame rate ≥60Hz
6. Graphics card DVI/HDMI/DP
6. Grayscale 12/14/16bit
6. Lifespan ≥100000H
6. MTBF ≥20000H, ≥10000H
6. Operating temperature -20℃~+60℃, -10℃~+40℃
6. Operating voltage DC+4.2V
6. Operating voltage(AC) 220V±10%/50Hz or 110V±10%/60Hz, 90V-270V(50Hz/60Hz)
6. Refresh rate ≥3840Hz
6. Scanning method 45S, 36S
6. Storage temperature -35℃~+85℃
6.Failed rate ≤1/100000 and no continuous failed pixels, ≤1/10000 and no continuous failed pixels
