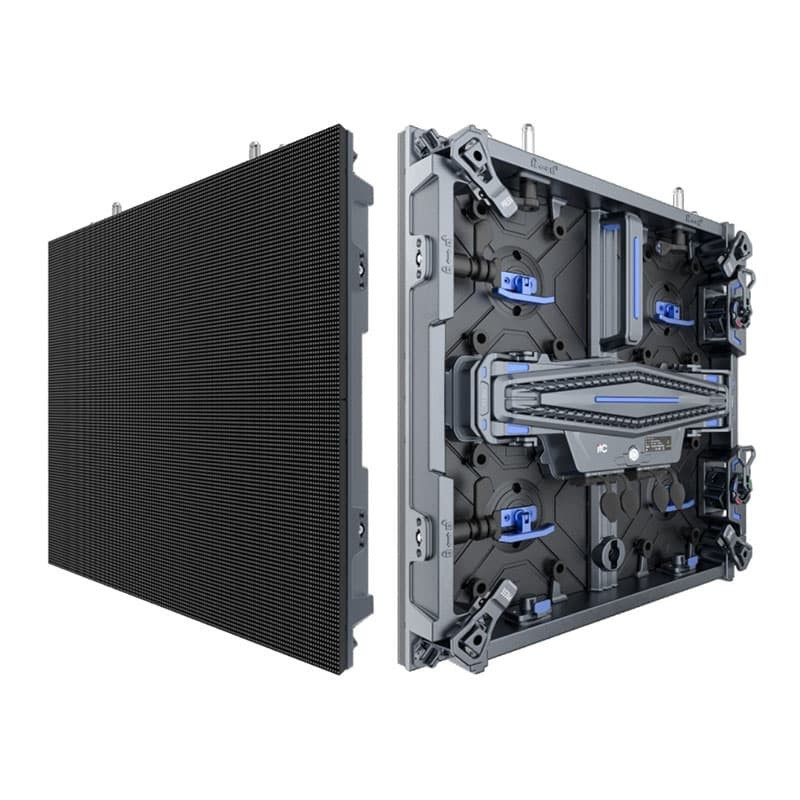

ITC TV-PH Daxili LED Video Divar

İcarəyə verilən LED video divar biznesi son illərdə güclü şəkildə inkişaf edən xidmət sahələrindən biridir. LED video divarı televiziya studiyaları, geniş miqyaslı performans fəaliyyətləri, mühüm tədbirlərin açılış mərasimləri, idman yarışları və korporativ şənliklər kimi mühüm tədbirlərin səhnəsində və ya fonunda geniş istifadə olunur. LED video divarında səsləndirilən mətnlər, şəkillər və videolar birlikdə rəngarəng atmosfer yaradır ki, bu da fəaliyyətin səviyyəsini xeyli yaxşılaşdırır.

Say

Series and models

YX series

YZ And YD series

Feature

  • With fast installation design. The installation and dis-assembly of the screen can be completed in a short time.
  • Support the arbitrary direction of the signal line, and meet the different arrangement and placement of cabinets, create pictures with different effects.
  • With arc lock -6°, -3°, 0°, +3°, +6° arc shape. *Support 256-level brightness adjustment and white balance custom adjustment.
  • Adopt signal folding technology, unit modules do not need to be cascaded, which greatly improves the display performance of the product.
  • Adopt large modules, with only 4 modules per cabinet, which reduces internal connections and improves product stability.
  • The back cover adopts a U-shaped push-lock design, and the power supply and receiving card can be maintained and replaced without dismantling any components.
  • High-end constant current drive chip with built-in PWM can realize high refresh rate, high grayscale high refresh rate, high grayscale 65536 grayscale products. The picture is stable, which can easily meet the requirements of high-end applications such as stage performances and broadcasting.
  • The new structure design meets the requirements of hoisting and stacking installation, as well as indoor and outdoor requirements. The cabinet design is suitable for multiple pitches of Led screen.
  • The new structural design meets the requirements of hoisting and stacking. The cabinet is simplified and compatible with various pitches.
  • High grayscale and high refresh rate: gray scale 12/14/16 bit, refresh frequency>7680Hz;
  • Optimize heat dissipation design through PCB circuit,don’t need external fans, air conditioners, etc., low noise; light weight of the cabinet, low installation cost; low power consumption of the cabinet, saving operating costs.
  • Equipped with various specifications of the flight cases, which is convenient for storage and transportation of the cabinets, and has a good protective effect on the LED video wall.
  • Support DCI-P3 (98%) color gamut requirements, support BT.2020, DCI.P3, BT.709, sRGB and other color gamut conversions, support X, Y, Z and Y, U, V color conversion.

ITC
Video Wall

Data sheet content

video divar

6. Best viewing distance
≥9m , ≥12m , ≥7.8m
6. Brightness
200~800CD/m² , 200~2000CD/m²
6. Contrast
≥10000:1 , ≥20000:1
6. Control mode
Synchronous control
6. Drive device
Constant current drive
6. Frame rate
≥60Hz
6. Graphics card
DVI/HDMI/DP
6. Grayscale
12/14/16bit
6. Lifespan
≥100000H
6. MTBF
≥20000H , ≥10000H
6. Operating temperature
-10℃~+40℃ , -20℃~+40℃
6. Operating voltage
DC +4.2V~+5V
6. Operating voltage(AC)
220V±10%/50Hz or 110V±10%/60Hz , 90V-270V(50Hz/60Hz)
6. Refresh rate
≥3840Hz , ≥7680Hz
6. Scanning method
16S , 14S , 21S
6. Storage temperature
-35℃~+85℃
6.Failed rate
≤1/10000 and no continuous failed pixels

Specifications

video divar

6. Best viewing distance ≥9m, ≥12m, ≥7.8m
6. Brightness 200~800CD/m², 200~2000CD/m²
6. Contrast ≥10000:1, ≥20000:1
6. Control mode Synchronous control
6. Drive device Constant current drive
6. Frame rate ≥60Hz
6. Graphics card DVI/HDMI/DP
6. Grayscale 12/14/16bit
6. Lifespan ≥100000H
6. MTBF ≥20000H, ≥10000H
6. Operating temperature -10℃~+40℃, -20℃~+40℃
6. Operating voltage DC +4.2V~+5V
6. Operating voltage(AC) 220V±10%/50Hz or 110V±10%/60Hz, 90V-270V(50Hz/60Hz)
6. Refresh rate ≥3840Hz, ≥7680Hz
6. Scanning method 16S, 14S, 21S
6. Storage temperature -35℃~+85℃
6.Failed rate ≤1/10000 and no continuous failed pixels
