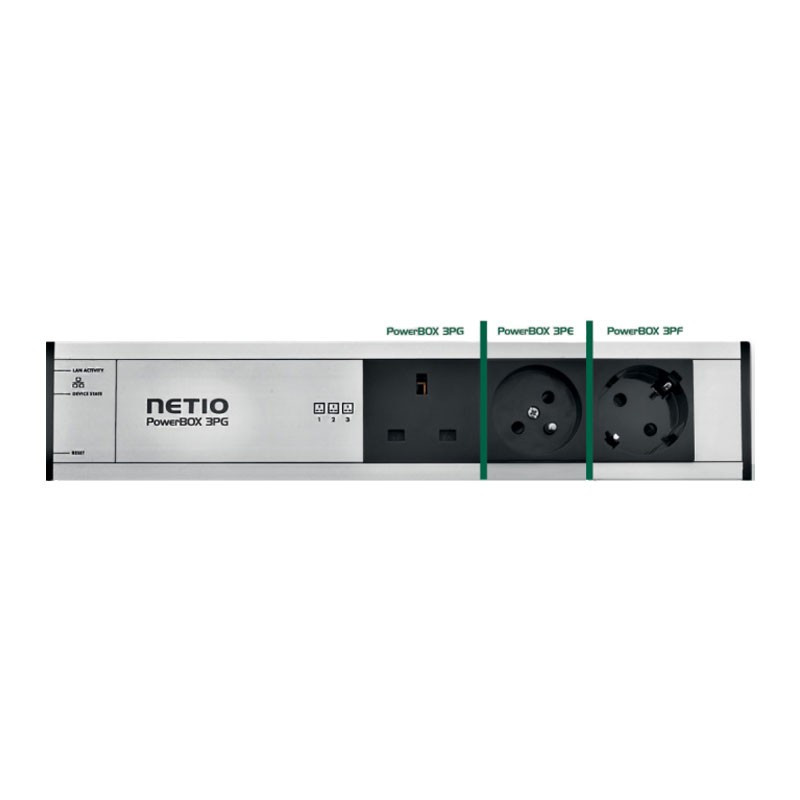

NETIO PowerBOX 3Px LAN üzərindən idarə olunan 3 çıxışı olan elektrik rozetkasıdır. Hər bir çıxış internet, NETIO bulud xidməti və ya mobil proqram vasitəsilə söndürülə və yandırıla bilər. Açıq API geniş spektrli protokollardan (http JSON, Modbus/ TCP, SNMP, MQTT, Telnet, ..) istifadə edərək 3-cü tərəf sistemlərinə inteqrasiya etməyə imkan verir. Üç elektrik rozetkasının hər biri məhsulun veb interfeysindən müstəqil şəkildə idarə oluna bilər (söndürülmüş/açılmış və ya elektrik dövriyyəsi ilə). Çıxışları ardıcıllıqla işə salmaq üçün hər çıxış üçün işə başlama gecikməsi intervalı konfiqurasiya edilə bilər.
Yüksək Texnologiyalar Dünyası Sizin Əlinizdə: Sürətli, Asan və Ağıllı


The NETIO Mobile2 app controls each output individually over LAN (local network) or NETIO Cloud.
NETIO Cloud is a SSL-secured service for controlling the outputs from anywhere (Web or Cloud API).
Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).
AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, Crestron, Control4 and more.
The Scheduler function switches outputs on and off at configured times. It works locally, even without Internet connection.
- 3x output (electrical socket)
- Each output can be switched on and off
- LAN (Ethernet)
- Open API (10 protocols, M2M API)
- ZVS – Zero Voltage Switching
- Service: NETIO Cloud
- Mobile application: NETIO Mobile2
tarix vərəqi
- 3. Güc
- 100-240 V; 50/60 Hz; 16 A
- 3. Kommutasiya edilmiş çıxışlar
- 16 A in total / 16 A each output
- 3. Maximum line breaker capacity
- C16A
- 3. Sigorta
- Integrated, non-resettable
- 3. Dalğalanmadan qorunma
- Type 3 (CAT III)
- 3. Güc çıxış releləri
- Micro-disconnection (µ) (resistive load), SPST-NO 1E5 switching cycles, max. 1.5 kV pulse voltage Switch heat and fire resistance class 1
- 3. Elektrik yükü
- ZVS (Zero Voltage Switching)
- 3. Şəbəkə interfeysləri
- 1x Ethernet RJ-45 10/100 Mbit/s Attention! Device connected over LAN must be connected in network with same earth potential (PE).
- 3. Daxili istehlak
- Max 2W
