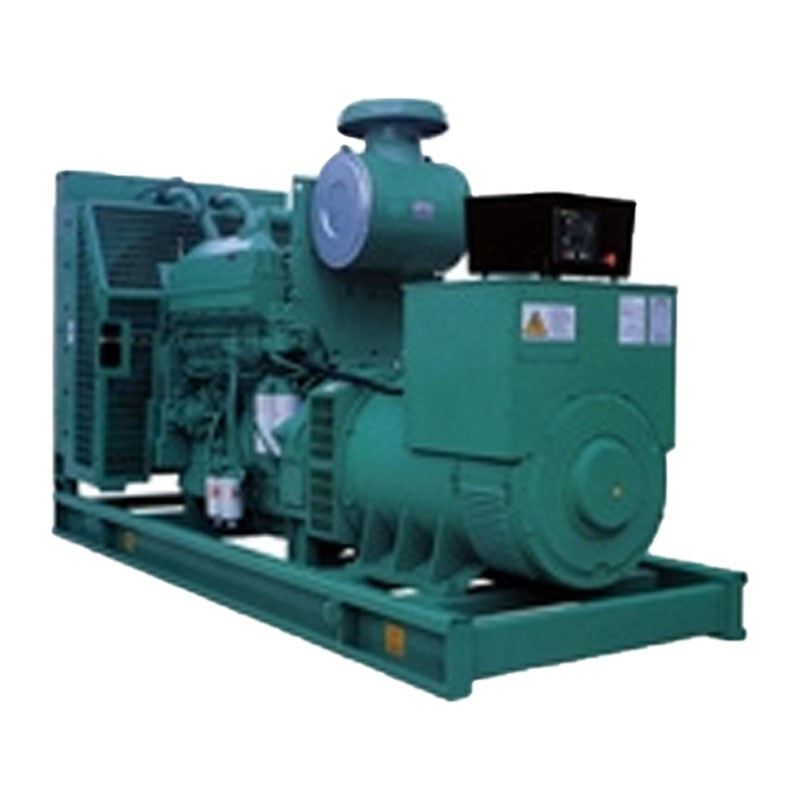

QSM11 Cummins Dizel Generator

Overall, the Cummins QSM11 diesel generator is ideal for providing electricity in industrial, commercial and residential environments. With adjustable power output and optimal performance, this generator provides a reliable source of energy.

Power Command control is an integrated generator set control system providing governing, voltage regulation, engine protection and operator interface functions. Major features include:

• Integral AmpSentry™ Protective Relay providing a full range of alternator protection functions that are matched to the alternator provided.
• Battery monitoring and testing features and smart starting control system.
• Three phase sensing, full wave rectified voltage regulation system, with a PWM output for stable operation with all load types.
• Standard PCCNet™ and optional Echelon®LONWORKS® network interface.
• Control suitable for operation in ambient temperatures from -40 °C to +70 °C (-40 °F to +158 °F) and altitudes to 5000 meters (13,000 feet).
• Prototype tested; UL, CSA, and CE compliant.
• InPower™ PC-based service tool available for detailed diagnostics.

Cummins Power Generation commercial generator sets are fully integrated power generation systems providing optimum performance, reliability and versatility for stationary standby and prime power

Features

Cummins heavy-duty engine - Rugged 4-cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

Permanent magnet generator (PMG) - Offers enhanced motor starting and fault clearing short-circuit capability.

Control system - The PowerCommand®electronic control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, AmpSentry™ protection, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.

Cooling system – Standard cooling package provides reliable running, at the rated power level, at up to 52 °C (126 °F) ambient temperature.

Enclosures - Optional weather protective and sound attenuated enclosures are available.

Fuel tanks - Dual wall sub-base fuel tanks are also available.

NFPA - The genset accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems.

Warranty and service - Backed by a comprehensive warranty and worldwide distributor network.
