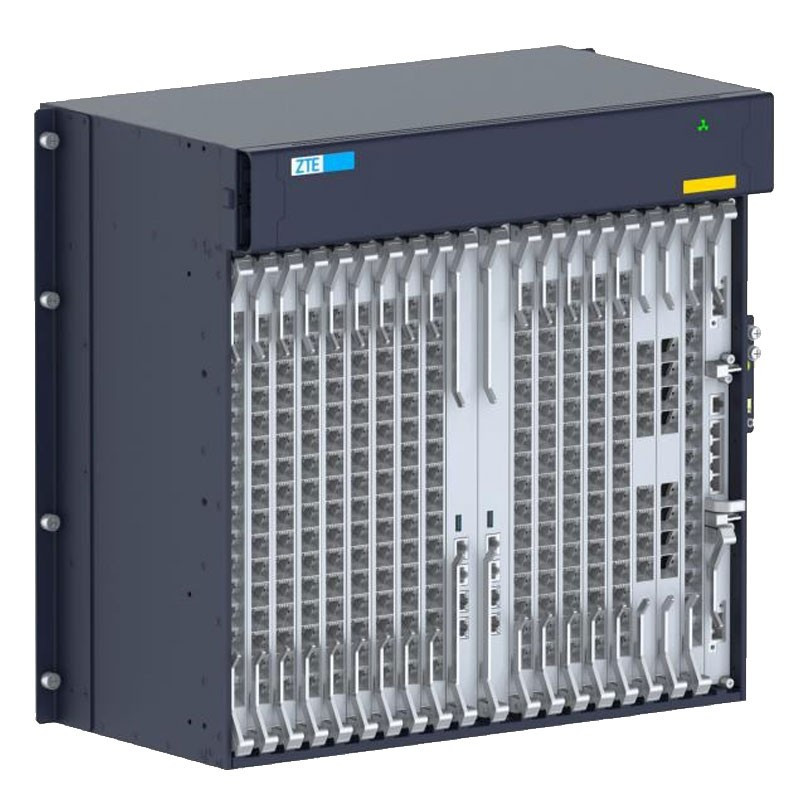

مرکز OLT به شماره ZXA10 C600 برند ZTE

GPON 16 پورت در هر کارت
XG-PON 16 پورت در هر کارت
XGS-PON 16 پورت در هر کارت
 XG-PON و GPON Combo PON 16
پورت های PON ترکیبی در هر کارت
کارت XGS-PON و GPON Combo PON* 16
Any-PON* 16  در هر کارت
کارت 10G-EPON*16 پورت در هر کارت
10GE P2P* 16 پورت در هر کارت
GE/FE P2P*24/48 پورت در هر کارت

This OLT comes chassis with 2xcontrol board, 8x10GE uplink, 2xDC power board and 2PCS DC power cables, 1PCS earth cable.

Model    C600
Switching capacity of backplane bus (Tbit/s)    14
System switching capacity (Tbit/s)    7.2
Switching capacity of system layer 2 packet forwarding rate    Distributed unblocked forwarding
Switching card switching capacity    3.6 Tbit/s (single switching board SFUL/SFULV/SFUH/SFUHV)
Switching and forwarding delay    Upstream: ≤1500 μs
Downstream: ≤100 μs
Full load bit error rate    10 e-9 (full load transmission)
Dimensions (mm)    486.1 (H) × 482.6 (W) × 288.5 (D)
Weight(kg)    18 (empty)
<52 (full configuration

System architecture
 Network Processor(NP) +CLOS switch fabric architecture
 Support control and forwarding planes separate.
 Support ISSU and NSR.
 SDN ready, support Netconf/YANG, VXLAN.
Access Features
272/256 GPON, 10G PON, Any-PON or Combo PON ports.
Three generations of PON technologies and directions in one platform, and two generations PON(GPON and 10G PON) in one card.
Support full services and scenarios access, such as big video, FMC, network re-architecture, etc.

Shelf configuration
 ETSI 21″ shelf: 23 slots, IEC19″ shelf: 21 slots.
 17 slots(21″)/15 slots(19″) for universal line cards
 2 slots for switch & control cards
 2 slots for power cards
 1 slot for clock synchronization card
 1 slot for FAN module
 System capability
 Switching capacity of backplane bus: 14 Tbit/s
 Switching and control card: 3.6 Tbit/s
 System switching capacity: 7.2 Tbit/s

 Uplink interface card
 16 * 10GE uplink per card
 8 * 10GE uplink per card

Subscriber card density
 GPON card: 16 ports per card
 XG-PON card: 16 ports per card
 XGS-PON card: 16 ports per card
 XG-PON & GPON Combo PON card: 16
Combo PON ports per card
 XGS-PON & GPON Combo PON card: 16
Combo PON ports per card
 Any-PON card: 16 Any-PON ports per card
 10G-EPON card: 16 ports per card
 10GE P2P card: 16 ports per card
 GE/FE P2P card: 24/48 ports per card

Clock synchronization interfaces
 2 * 120 Ω BITS clock input
interface/1PPS+ToD time input interfaces.
 1 * 120 Ω BITS clock output
interface/1PPS+ToD time output interface.
 1 * out-of-band NM interface.
 1 * public/maintenance serial port
