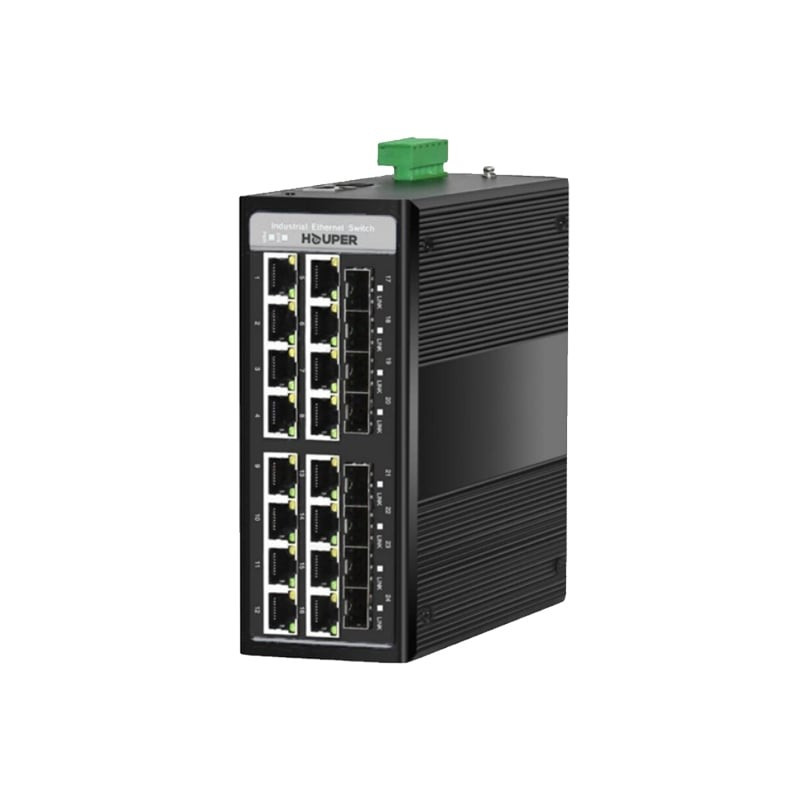

HOP3412S1224-8TP with 16-P0ÄIO/100/1000Base-TX and 8-Port IOOOBase-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Houper, with high quality design and reliability. It is positioning in the broad band network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

Product Features

• 16x10/100/1000Base-TX RJ45 ports, OOOBase-FX Fast SFP pons, 16xP0E
• Support Auto-MDIX, and full/half duplex self-negotiation mode
• Provide SFP LC interface fiber port, support single/dual fiber transmission
• Support 10K bytes giant frame, compatible with various extension protocol
• 8K MAC address table
• Support IEEE802.3az energy efficient Ethernet technology
• Support IPv6 Protocol
• Electric 4KV surge protection, easy to use in outdoor environment
• Complete status indicator, working state at a glance
• Power input polarity protection design, no worry about wrong operation Metal case, no fan design
• Installation method: DIN rail [Wall mounting

Ethernet Interface

Exchange attributes

• Electrical port characteristics:16x 10/100/1000BASE-TX,RJ45
• Optical port characteristics:8xIOOOBASE-X(SFP)
• Backplane bandwidth:56Gbps
• MAC address: 8K
• Jumbo frame: 10K Bytes
• Swap buffer: 4Mb

POE

• (Optional) POE standard: 802.3af/802.at
• POE port: 16
• POE power: 30W

chassis

• size: 160x132x70 mm
• weight: 1200g
• Material: Aluminum alloy, IP40
• Installation : Rail-mounted/wall-mounted installation

power supply

• Input: Dual power supply, 9-56V DC- Single power supply, 220V AC (optional)
• e Interface:6 PIN Phoenix terminal
• Power consumption: Full load power consumption: <22W

working environment

• Temperature: -40A-•85C
• Humidity: RH non-condensing

VLAN: Port-based VLAN:./4K

Multicast:IGMP Snooping: vl

Industrial Ring Network:ERPS 20ms

Qos:

• 802.1 priority: 4 queues
• Queue scheduling: WRR
• DSCP priority
• Port priority

Safety features

• 802. lx authentication
• MAC number limit
• MAC address filtering
• Data control Port speed limit

ACL

• Based on IP
• Based on MAC
• e Port-based VLAN

Management method

• 1Pv6/lPv4: IPv4
• Console: RJ45
• Telnet
• Web management
• SNMP management: vl
• ORMON: 1,2,3,9
• SSH/SSL
• software upgrade:HTTP
• Configuration export and import
