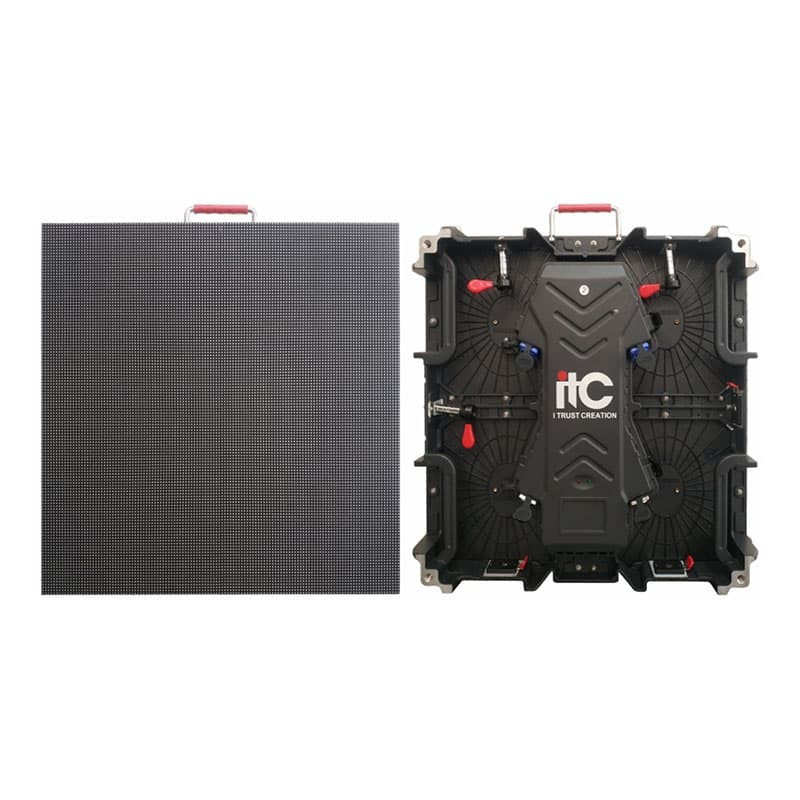

ITC TV-OH391-481 Xarici LED Video Divar
  • ITC TV-OH391-481 Xarici LED Video Divar

ITC TV-OH391-481 Xarici LED Video Divar

LED icarəsi video divar biznesi son illərdə güclü şəkildə inkişaf edən xidmət sahələrindən biridir. LED video divarları televiziya studiyaları, geniş miqyaslı tamaşa sənəti fəaliyyətləri, mühüm tədbirlərin açılış mərasimləri, idman yarışları və korporativ bayramlar kimi mühüm tədbirlərin səhnəsində və ya fonunda geniş istifadə olunur. LED video divarlarında səsləndirilən mətn, şəkillər və video proqramlar müxtəlif fəaliyyətlər üçün dəyişən səhnə cazibəsi yaradır ki, bu da ifaçılıq sənəti fəaliyyətinin səviyyəsini xeyli artırır.

Say

Series and models

Feature:

  • Lightweight, ultra-thin and with fast installation design. The installation and dis-assembly of the screen can be completed in a short time.
  • Support the arbitrary direction of the signal line, and meet the different arrangement and placement of cabinets, to create pictures with different effects.
  • Equipped with a professional video processor, supporting AV, DP, VGA, DVI, YPBPR, HDMI, SDI and other signals.
  • Support 256-level brightness adjustment and white balance custom adjustment, so that different batches of screens can be mixed to use.
  • Signal processing: RTF series products adopt signal folding technology, unit modules do not need to be cascaded, which greatly improves the display performance of the product.
  • Modules: adopt large modules, with only 4 modules per cabinet, which reduces internal connections and improves product stability. Without opening the cabinet, the module can be directly disassembled from the rear of the cabinet.
  • Back cover: remove 4 screws, take off the back cover, you can maintain and replace the power supply and receiving card.
  • Heat sink: the aluminum bottom plate is used to replace the traditional plastic bottom shell, which improves the heat dissipation performance of the product while ensuring the flatness.
  • IC and driver: high refresh rate and high gray scale of 16384 level. The product uses a high-end constant current driver chip with built-in PWM In the case of a single receiving card loaded, the display refresh frequency can be 960Hz to 4800Hz and gray level can up to 16bit.. The picture is stable, which can easily meet the requirements of high-end applications such as stage performances and broadcasting. The DC power cable adopts American standard cable, and the power input adopts a surface mount socket. The power cable is not easy to loosen, the line loss is minimal during power transmission, and the input voltage is stable.
  • The new structure design meets the requirements of hoisting and stacking installation, as well as indoor and outdoor requirements. The cabinet design is suitable for multiple pitches of Led screen.
  • High grayscale and high refresh rate: gray scale 14 bit, refresh frequency>960Hz;
  • Excellent heat dissipation design and heat dissipation performance, don’t need external fans, air conditioners, etc., low noise; light weight of the cabinet, low installation cost; low power consumption of the cabinet, saving operating costs.
  • It has good waterproof effect and has an IP54 protection level, which is suitable for outdoor rental use.
  • Equipped with various specifications of the flight cases, which is convenient for storage and transportation of the cabinets, and has a good protective effect on the LED video wall.
  • Customize the most appropriate LED video wall leasing solutions according to customer requirements and site environment.

ITC
Video Wall

Data sheet content

video divar

6. Best viewing distance
≥12m , ≥14.5m
6. Brightness
3500~4500CD/m²
6. Contrast
≥10000:1
6. Control mode
Synchronous control
6. Drive device
Constant current drive
6. Frame rate
≥60Hz
6. Graphics card
DVI/HDMI/DP
6. Grayscale
12/14/16bit
6. Lifespan
≥100000H
6. MTBF
≥10000H
6. Operating temperature
-10℃~+40℃
6. Operating voltage
DC +4.2V~+5V
6. Operating voltage(AC)
220V±10%/50Hz or 110V±10%/60Hz
6. Refresh rate
≥3840Hz
6. Scanning method
16S , 13S
6. Storage temperature
-35℃~+85℃
6.Failed rate
≤1/10000 and no continuous failed pixels

Specifications

video divar

6. Best viewing distance ≥12m, ≥14.5m
6. Brightness 3500~4500CD/m²
6. Contrast ≥10000:1
6. Control mode Synchronous control
6. Drive device Constant current drive
6. Frame rate ≥60Hz
6. Graphics card DVI/HDMI/DP
6. Grayscale 12/14/16bit
6. Lifespan ≥100000H
6. MTBF ≥10000H
6. Operating temperature -10℃~+40℃
6. Operating voltage DC +4.2V~+5V
6. Operating voltage(AC) 220V±10%/50Hz or 110V±10%/60Hz
6. Refresh rate ≥3840Hz
6. Scanning method 16S, 13S
6. Storage temperature -35℃~+85℃
6.Failed rate ≤1/10000 and no continuous failed pixels
