X-ray baqaj skaneri HOU-XB5021
  • X-ray baqaj skaneri HOU-XB5021

X-ray baqaj skaneri HOU-XB5021

1.392.989,05 ₺

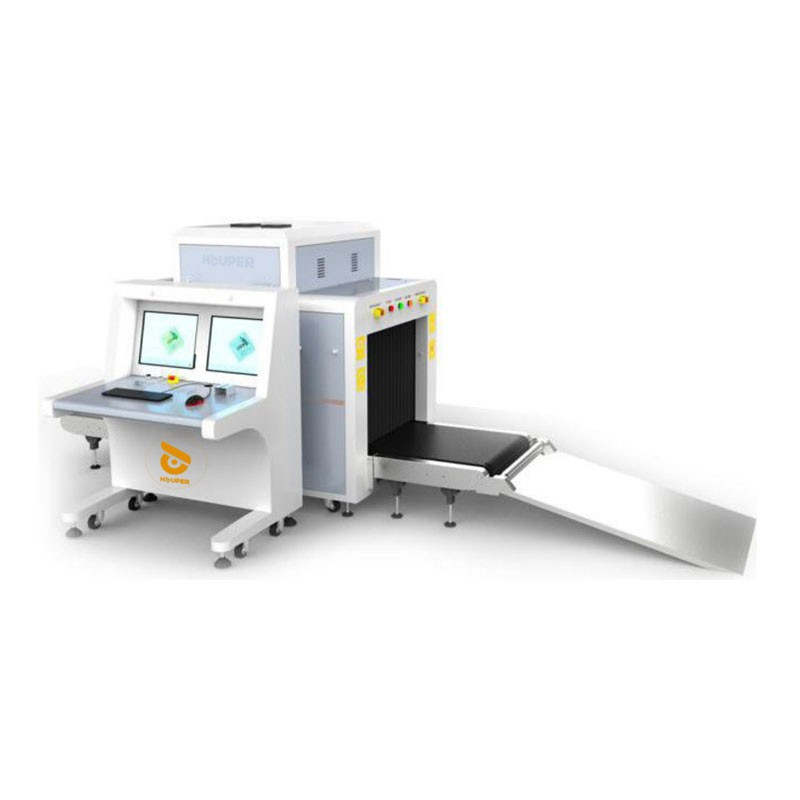

Houper X-ray baggage scanner, part number HOU-XB5021 is used in public places, especially in airports, train stations and hospitals, in order to provide security, and prevent dangerous objects to be carried into such places. It is equipped with double energy technology. The technology allows the simultaneous radiation of two different types of X-ray energy on objects. In addition, it has an energy saving design technology to reduce the energy consumption of the device. Such technologies include the optimal design of systems, the use of high-performance electronic components, and renewable energy sources such as solar cells and rechargeable batteries. It can detect the potential problems and errors in the system using advanced data analysis techniques and intelligent algorithms.

Say

In addition, the device can eliminate blind spots and improve image quality. So, the image becomes clear of blind spots and more details visible. Houper X-ray baggage scanner has two screens to allow the operator to view the images created by the scanner simultaneously in a comparative way.

Features

  • Economic model
  • Double energy
  • Built-in ARM CPU
  • Energy saving design
  • MTBF: More than 10000 hours
  • With Digital Signal and Processor

X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment

X-ray
100 articles

Data sheet content

X RAY-Metal Detection

Tunnel size
1000mm(L)*800mm(W)
Conveyor Speed
0.20 (±10%)
Generator
140-160KV , oil cooling , from bottom to top
X-Ray dosage /inspection
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Boundary Leakage
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Computer
CPU: Cortex A9
Display monitor
Dell or Acer , 17" LED screen , resolution 1280*1024
Operation table
220VAC(±10%) 50±3Hz 100VAC , 110VAC , 120VAC , 200VAC (optional)
Image Archive
At least 50 , 000 images stored automatically , enable transferring to USB disk , and converting to JPG , BMP , XF , PNG , TIFF , GIF six formats.
Operation System
LINUX
Image Enhancement
1-32times enlargement continuity , Color/BW , negative , high/low penetration , organic /inorganic , Stripping , general enhancement , and pseudo color , etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform , such as image centralized storage and identify , recheck workstation , and network TIP , etc ( Optional).
Operation table
Single screen console

16 other products in the same category

Specifications

X RAY-Metal Detection

Tunnel size 1000mm(L)*800mm(W)
Conveyor Speed 0.20 (±10%)
Generator 140-160KV, oil cooling, from bottom to top
X-Ray dosage /inspection Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Boundary Leakage Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Computer CPU: Cortex A9
Display monitor Dell or Acer, 17" LED screen, resolution 1280*1024
Operation table 220VAC(±10%) 50±3Hz 100VAC, 110VAC, 120VAC, 200VAC (optional)
Image Archive At least 50, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Operation System LINUX
Image Enhancement 1-32times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color, etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
Operation table Single screen console
