X-ray baqaj skaneri HOU-XB5020
X-ray baqaj skaneri HOU-XB5020

X-ray baqaj skaneri HOU-XB5020

Review (0)
1.097.303,72 ₺
Tax Included

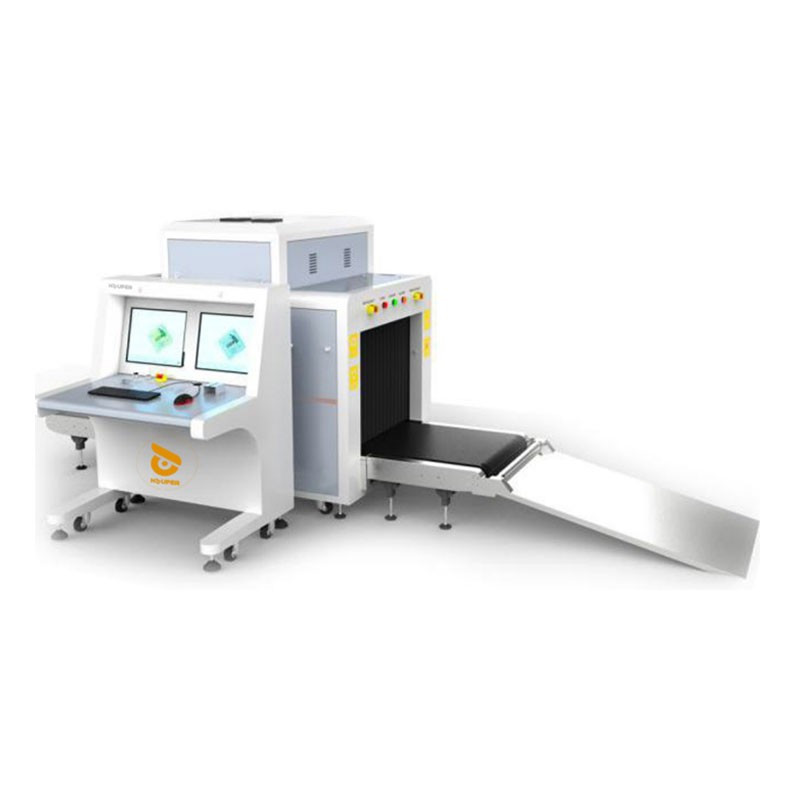

Houper X-ray baggage scanner, part number HOU-XB5010 is used in public places, especially in airports, train stations and hospitals, in order to provide security and prevent dangerous objects to be carried into such places. Houper X-ray baggage scanner is equipped with double energy technology, meaning it benefits from two different energy sources to scan luggage and waybills. In addition, it has two screens that simultaneously display images from two different angles of bags and loads. Using stripping technology, it removes different layers of the bag to access the inner contents. It has a process to analyze the images created by the X-ray baggage scanner with the help of advanced algorithms. Using such algorithms, blind spots of the image are detected and removed automatically.

Quantity :
In Stock 100 Available items

In addition, it has fault diagnosis technology to identify and diagnose any failure, defect or malfunction in the device. The process uses various techniques such as signal analysis, image analysis and data analysis to detect and fix errors.

Features

  • Economic model
  • Double energy
  • Built-in ARM CPU
  • Energy saving design
  • MTBF: More than 10000 hours
  • With Digital Signal and Processor

X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment

X-ray
100 articles

tarix vərəqi

Tunnel size
800mm(L)*650mm(W)
Conveyor Speed
0.20 (±10%)
Generator
140-160KV, oil cooling, from bottom to top
Operation table
220VAC(±10%) 50±3Hz 100VAC,110VAC,120VAC,200VAC (optional)
Single screen console
X-Ray dosage /inspection
Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Boundary Leakage
Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Computer
CPU: Cortex A9
Display monitor
Dell or Acer, 17" LED screen, resolution 1280*1024
Image Archive
At least 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Operation System
LINUX
Image Enhancement
1-32times enlargement continuity, Color/BW, negative,high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color,etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
