X-ray baqaj skaneri HOU-XB5001
  • X-ray baqaj skaneri HOU-XB5001

X-ray baqaj skaneri HOU-XB5001

607.522,97 ₺

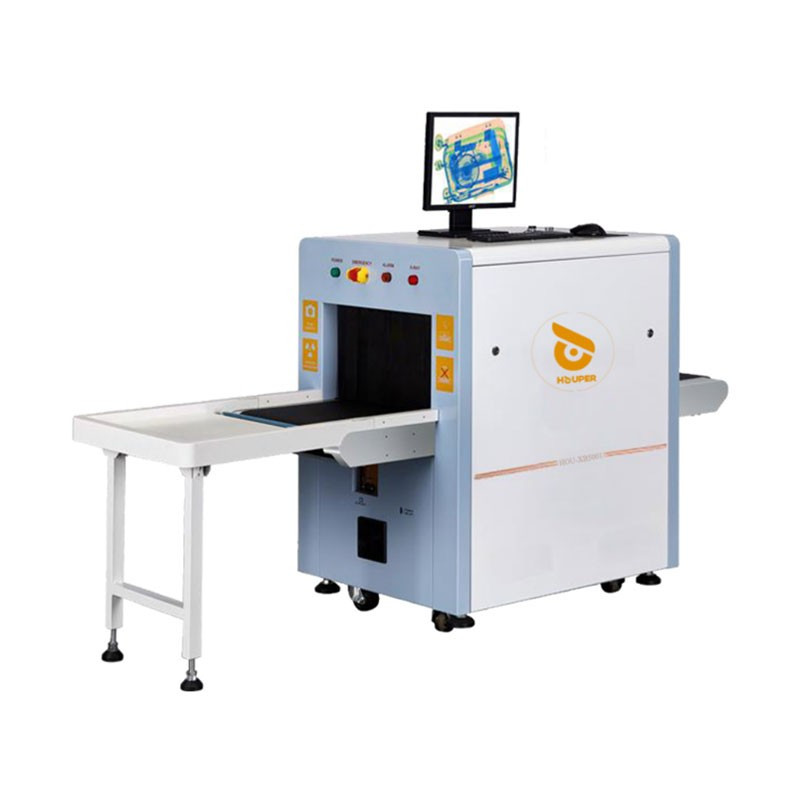

Houper X-ray baggage scanner part number HOU-XB5001 is used in public places, especially in airports, train stations and hospitals, in order to provide security, and prevent dangerous objects from carrying into such places. X-ray baggage scanner benefit from X-ray technology to scan and check the contents of passengers' luggage. It is also equipped with Single energy technology, meaning it sends a single level of X-rays energy to the objects inside the luggage or bag. It also has the capability of Digital Signal and Processor (DSP), which is used to process digital signals. X-ray baggage scanner has advanced imaging algorithms, Mage Recall, which can identify objects that are unrecognizable by humans.

Say

In addition, Houper X-ray baggage scanner, part number HOU-XB5001, has detection blind dots delete technology, which is used to improve the ability to detect and remove blind spots in the x-ray scanned images. This technique is put into action by advanced algorithms and special software.

Features

  • Economic model
  • Single energy
  • Built-in ARM CPU
  • Energy saving design
  • MTBF: More than 10000 hours
  • With Digital Signal and Processor

X-ray machine technical parameters meet the technical conditions stipulated in the national standard “Micro Dose X-ray Security Inspection Equipment

X-ray
100 articles

Data sheet content

X RAY-Metal Detection

Tunnel size
500mm(L)*300mm(W)
Conveyor Speed
0.20 (±10%)
Generator
70-80KV , oil cooling , from bottom to top
X-Ray dosage /inspection
Typical 2.0 μGy/h , guarantee 2.5 μGy/h
Boundary Leakage
Typical 1.0 μGy/h , guarantee 1.5 μGy/h
Computer
CPU: Cortex A9
Display monitor
Dell or Acer , 17" LED screen , resolution 1280*1024
Operation table
220VAC(±10%) 50±3Hz 100VAC , 110VAC , 120VAC , 200VAC (optional)
Image Archive
At least 50 , 000 images stored automatically , enable transferring to USB disk , and converting to JPG , BMP , XF , PNG , TIFF , GIF six formats.
Operation System
LINUX
Image Enhancement
1-32times enlargement continuity , Color/BW , negative , high/low penetration , organic /inorganic , Stripping , general enhancement , and pseudo color , etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform , such as image centralized storage and identify , recheck workstation , and network TIP , etc ( Optional).

16 other products in the same category

Specifications

X RAY-Metal Detection

Tunnel size 500mm(L)*300mm(W)
Conveyor Speed 0.20 (±10%)
Generator 70-80KV, oil cooling, from bottom to top
X-Ray dosage /inspection Typical 2.0 μGy/h, guarantee 2.5 μGy/h
Boundary Leakage Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Computer CPU: Cortex A9
Display monitor Dell or Acer, 17" LED screen, resolution 1280*1024
Operation table 220VAC(±10%) 50±3Hz 100VAC, 110VAC, 120VAC, 200VAC (optional)
Image Archive At least 50, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Operation System LINUX
Image Enhancement 1-32times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color, etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
