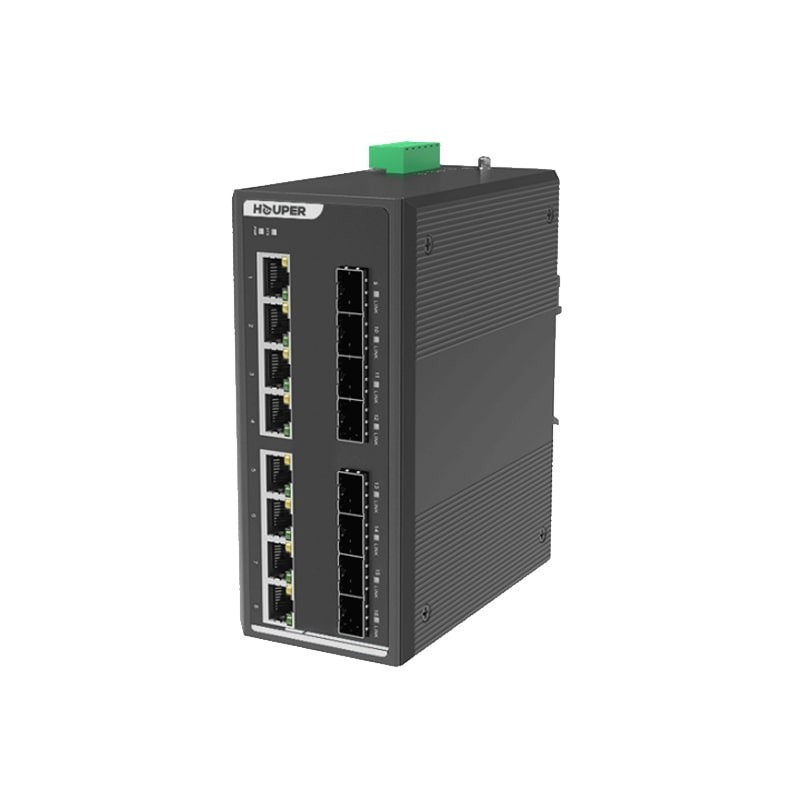

HOP3412S1216-8TP şəbəkəsi 8 Gigabit və 8 optik ilə idarə olunan sənaye Ethernet açarı

It can provide users with and realize Ethernet data exchange, aggregation and remote optical transmission of efficient bandwidth and reliable optical fiber network solutions. This product has the characteristics of small size, fanless, low power consumption, high reliability, good stability and easy maintenance. industrial-grade Ethernet switch products adopt mature technology and open network standards, adapt to low and high temperatures, have strong resistance to electromagnetic interference, anti-salt spray, anti-vibration and anti-shake, and are equipped with redundant dual DC power supplies, which can provide critical equipment that needs to remain connected at all times. Redundancy mechanism. It also operates in the standard operating temperature range -40 to 750C. Industrial switches support DIN rail or wall mounting and feature IP40 protection, making them perfect for harsh environments such as industrial networks and intelligent transportation systems (ITS). They are also suitable for many military and utility market applications where environmental conditions exceed those of commercial products. Specification.

Model: HOP3412S1216-8TP

Ethernet Interface

• Switch Properties: Electrical Port: 0<10/100/1 OOOBASE-TX, RJ45
• Optical Fiber : 8x1000BASE-X(SFP)
• Backplane Bandwidth:56Gbps
• MAC Table Size: 8K
• Jumbo Frame: 10K Bytes
• e Packet Buffer: 4M

• POE (Option) :Standard 802.3at
• Port : 8
• Power: 30W

Physical Characteristics

• Dimensions:160x132x70 mm
• Weight: 100g
• Housing: Aluminum, IP40 Rating
• Installation: Din Rail/ Wall Mounting

Power Supply:

• Input: Redundant power supply, 9-56V DC
• Interface: 6 PIN Phoenix terminal
• Consumption Full Load : <22W

Operating Environment

• Operating Temperature:-40 to 750C(-40 to 1850F)
• Ambient Relative Humidity: 5 to 90%(non-condensing
• Based VLAN: VID 1 to 4094

• Support IEEE 802.3af/at/bt POE Standard, without damaging not-PoE devices.
• Multicast: IGMP Snooping STP STP(802.1 D), RSTP(802. lw), MSTP(802. Is)
• QoS:  802. Ip Priority: 4 queues
• Queue Scheduling: WRR
• DSCP Priority
• Port Priority
• Rate Limitation
• Security 802. Ix Security: RADIUS, MAC Filtering IP Based, MAC Based, Port Based
• Management: IPv4- CLI- Telent- Web- SNMP:v1 RMON•.I SSH/SSL- Software
• Upgrade :HTTP- Configuration:lmpowexport- Sys Log
