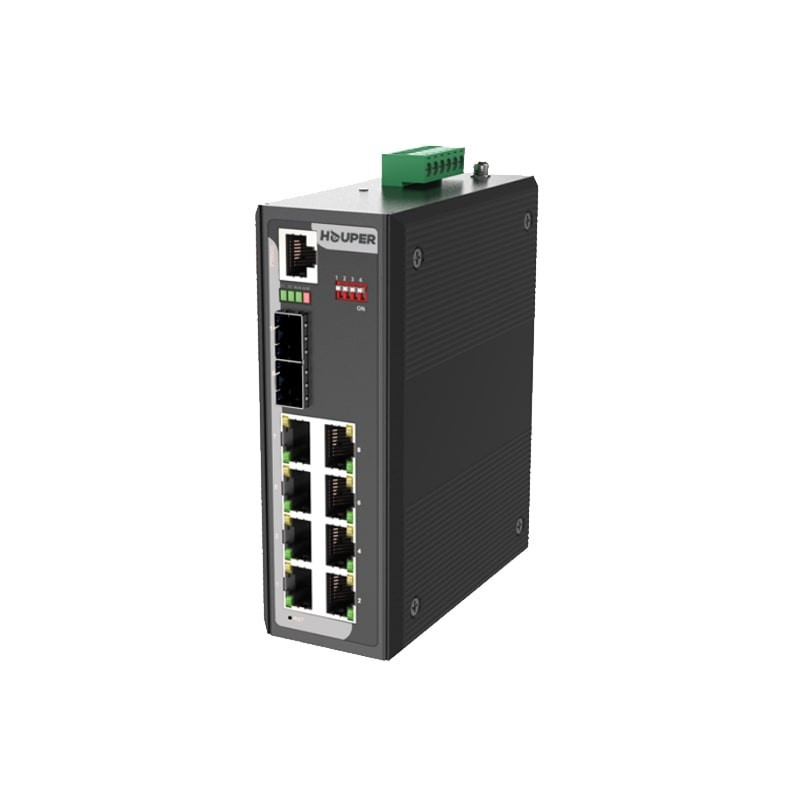

8XGE və 2XGE SFP ilə Houper's Smart Industrial Ethernet Switch HOP3412S1210-2TN
4.532,73 ₺
Houper's Smart Industrial Ethernet Switch HOP3412S1210-2TN is an innovative and independent product for industrial networking. We define it as the LITE model, designed specifically for small industrial networks and highly cost-effective. In addition to adopting industry-leading technical standards, this product can guarantee reliable and reliable Ethernet transmissions.
Software Features
- Redundancy Protocol: Support STP/RSTP
- Multicast Support: Support IGMP Snooping VI
- VLAN: Support IEEE 802. IQ 4K VLAN, Port Isolation, Trunk Group Setting
- QOS:Support Port, .1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, QueueWeight
- Diagnostic Maintenance: Support port mirroring, Port Statistics, Cable Diagnostic
- Management Function: WEB, SNMPv1 , EEE, Green Ethernet
- Security: Broadcast/MuIticast Storm Protection, MAC filtering, MAC Constraint
- Advance Functions: Bandwidth Control(lngress and Egress Rate), Jumbo Frame,
- Firmware Online Upgrade, Configuration Backup
Physical Characteristics
- Housing: Aluminium case
- IP Rating: IP40
- Dimensions: 138mm x 108mm x 49mm (L x W x H)
- Installation: DIN Rail/Wall Mount
Ethernet Interface
ports
- RJ45 ports-ox 100/1 OOOBase-X SFP ports
- Pon Mode(Tx): Auto-Negotiation Speed
- Full/Half Duplex Mode
- Auto MDI/MDI-X Connection
Standards
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X) and 100BaseFX
- IEEE 802.3ab for IOOOBaseT(X)
- IEEE 802.3z for 1 OOOBaseSX/LX/LHX/ZX
- IEEE 802.3x for flow control
- IEEE 802.1 D-2004 for Spanning Tree Protocol
- IEEE 802. lw for Rapid Spanning Tree Protocol
- IEEE 802. Ip for Class of Service
- IEEE 802. IQ for VLAN Tagging
- Packet Buffer Size: 2M
- Maximum Packet Length: Up to 9K
- MAC Address Table: 4K
- Transmission Mode: Store and Forward (full/half duplex mode)
- Exchange Property: Delay time: < 7gs Backplane bandwidth: 20G
- IGMP Group: 256
- VLAN ID Range: VID 1 to 4094
Environmental
Operating Temperature
to 750C
Operating Humidity
(non-condensing)
Storage Temperature
-400C85cc
MTBF
907 ,476 hours @ Telcordia SR-332 Standard
Heat Dissipation
34 BTU/h
Cooling: Passive Cooling, Fanless Design
Weight: 680G
switch
100 articles
Data sheet content
Switch-Router
- Keçid növü
- sənaye , Hərbi
- Portların sayı
- 8
- Liman sürəti
- 1G , 10/100/1000BASE-T
- yuxarı bağlantı portları
- 2
- Uplink Port sürəti
- 1G , 10/100/1000BASE-T
- portların növü
- mis RJ45
- yuxarı bağlantı portlarının növü
- SFP
- Power over Ethernet
- Yox
- Layer of switch
- Layer 2 , Layer 3 , VxLAN , VLAN , QoS
- IP versiyası
- IPV4 , IPV6
- Switch Management
- RFC1213 SNMP , WEB base , SSHv2 , SSHv1
- Əməliyyat temperaturu
- -40 / +85 C
16 other products in the same category
Specifications
Switch-Router | |
|---|---|
| Keçid növü | sənaye, Hərbi |
| Portların sayı | 8 |
| Liman sürəti | 1G, 10/100/1000BASE-T |
| yuxarı bağlantı portları | 2 |
| Uplink Port sürəti | 1G, 10/100/1000BASE-T |
| portların növü | mis RJ45 |
| yuxarı bağlantı portlarının növü | SFP |
| Power over Ethernet | Yox |
| Layer of switch | Layer 2, Layer 3, VxLAN, VLAN, QoS |
| IP versiyası | IPV4, IPV6 |
| Switch Management | RFC1213 SNMP , WEB base, SSHv2, SSHv1 |
| Əməliyyat temperaturu | -40 / +85 C |
Houper's Smart Industrial Ethernet Switch HOP3412S1210-2TN is an innovative and independent product for industrial networking. We define it as the LITE model, designed specifically for small industrial networks and highly cost-effective. In addition to adopting industry-leading technical standards, this product can guarantee reliable and reliable Ethernet transmissions.
