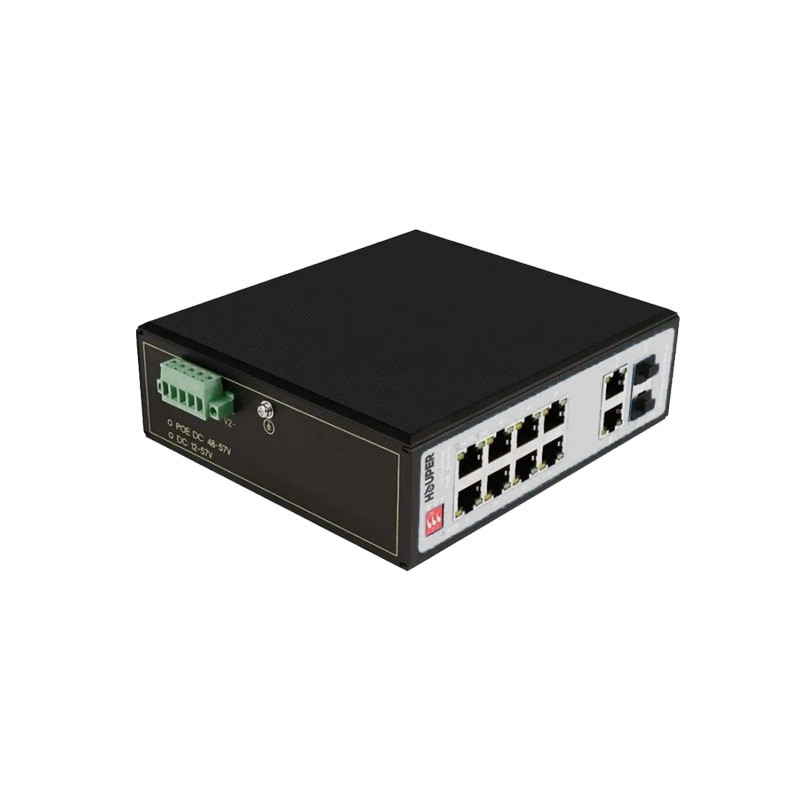

10GE, 2GE SFP portları ilə HOP3412S1312-2TP sənaye POE açarı
HOP3412S1312-2TP is 8 Port Gigabit Uplink Industrial PoE Fiber Switch with 8*1000M POE + 2*1000M SFP+2*1000M RJ45 ports Industrial PoE Switch,1-8 ports support IEEE 802.3af/at; PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port; With the Dial code switch,1-8 Ports support watch dog function, Priority port, Port self-healing, Vlan & 250M long distance, video monitoring and isolation mode. Operation TEMP:-40~85°C , Input voltage: DC48-57V, Redundant dual power 5-bit industrial terminals; IP protection level: IP40; Rail-type installation;
Model
HOP3412S1312-2TP
Interface
8*10/100/1000Base-T PoE ports (Data/Power)
2*10/100/1000Base-T RJ45 ports (Data)
2*100/1000Base-X SFP slot ports (Data)
2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)
Network Protocol
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-T/TX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3u 100BASE-FX
IEEE802.3x.
PoE Standard
IEEE802.3af/at
Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-4 Port support each port Isolation & VLAN
D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale
SFP Port Characteristic
Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module.
Forwarding Mode
Store and Forward
Switching Capacity:17.856 Gbps (Non-blocking)
Forwarding Rate@64byte: 8.93Mpps
MAC: 8K
Buffer Memory: 4M
Power Consumption Standby:<8W; Full load:<250W
LED Indicator Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)
(Orange),5-6(Link/Act)/ (Green); POE indicator: PoE (Green)
Power Supply No, see accessories information table to buy and use
Operation TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Storage TEMP / Humidity -40~+125°C;5%~95% RH Non condensing
Dimension 145*112*48mm
Net /Gross Weight <0.7kg /<1.5k
Jumbo Frame: 10K
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5e or later UTP (≤100 meter)
Optical Cable
Multimode: 850nm 0 ~ 500M, 1310nm 0~2KM
Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM
Power Supply Pin
Default 1/2 (+), 3/6 (-)
Working Voltage
48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection.
Max/ Average Power Per Port
30W/ 15.4W; IEEE802.3af/at
Total PWR / Input Voltage
120W (48-57VDC)
Power Consumption
Standby:<3W; Full load:<120W
LED Indicator
Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green),9(Link/Act) / (Green), Speed/ (Orange); POE indicator: PoE (Orange)
Power Supply
No, optional 48V/120W or 48V/240W industrial power supply
Operation TEMP / Humidity
-40~+75°C;5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+85°C;5%~95% RH Non condensing
Dimension
165*145*54mm
Net /Gross Weight
<1.3kg / <1.8 kg
Lightning protection / protection level
Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV
IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022): Class A
IEC61000-6-2(Common Industrial Standard)
Data sheet content
Switch-Router
- Keçid növü
- sənaye , Hərbi
- Portların sayı
- 8 , 10
- Liman sürəti
- 1G , 10/100/1000BASE-T
- yuxarı bağlantı portları
- 2
- Uplink Port sürəti
- 1G , 10/100/1000BASE-T
- portların növü
- mis RJ45
- yuxarı bağlantı portlarının növü
- SFP , SFP-10G
- Power over Ethernet
- Bəli
- POE növü
- POE , POE+ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W
- Enerji istehlakını dəyişdirin
- 200-300W
- Əməliyyat temperaturu
- -40 / +85 C
