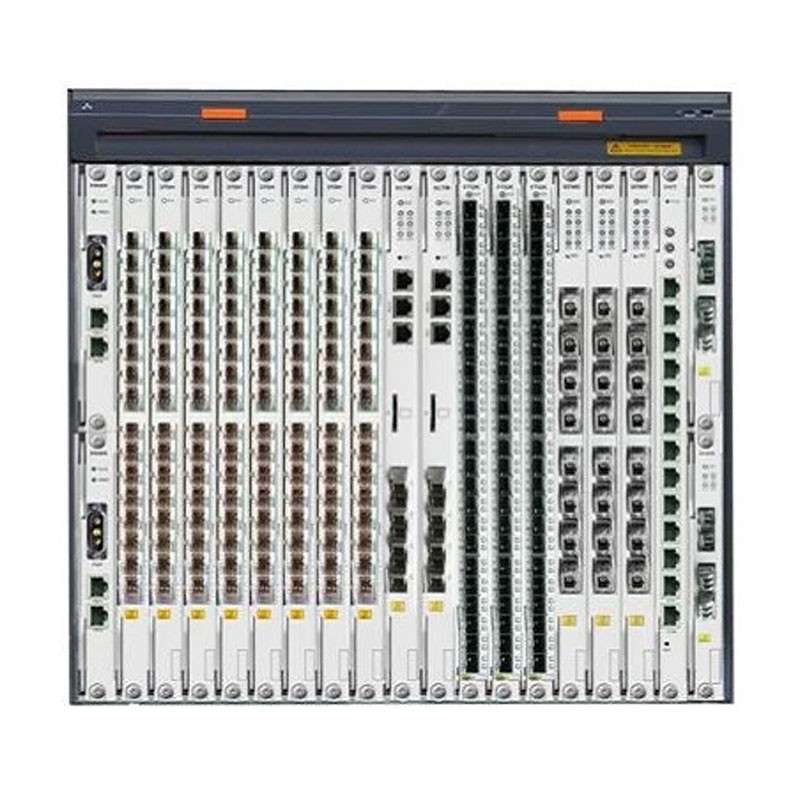

ZXA10 C300 OLT

Review (0)

The ZXA10 C300 Optical Access Convergence Equipment (ZXA10 C300 for short) is a 10U-height OLT device, which satisfies the market requirement for large-capacity OLTs.This manual describes the hardware structure of the ZXA10 C300.With the requirements of communication services increasing,the value added services (VAS) including 3D network games,video conference/phone,Video on Demand (VoD) and IPTV are key means for operators to provide differential services to attract more subscribers,and gain income growth.ZTE ZXA10 C300,a big size,full-service optical access convergent platform,provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

ZTE ZXA10 C300 OLT is the Industry’s First Large Capacity Optical Access Platform Oriented to 10G PON. ZTE ZXA10 C300 OLT meets diverse FTTX application scenarios including FTTH, FTTO and FTTdp to meet the large scale E/GPON and 10G PON deployments. C300 offers ultra-fast bandwidth and meets the requirements of big video, FMC and universal broadband services

Backplane capacity:    5,76 Tbit/s
Switching capacity    800 Gbit/s
Number of service cards    14 (GPON/P2P/XG-PON1)
Number of control cards    2
Number of power supply cards    2
Number of uplink cards    2 (10GE/GE/FE/E1/T1)
Maximum number of GPON subscribers    16384
Management Interfaces    CLI, SSH, SNMP, telnet
Dimensions    10U (443,7 x 482,6 x 270 mm)
Power    -48 V (DC)
Working temperature and humidity    -25°C – +55°C, 5% – 95%
Split Ratio    up to 1:256
Range    20-60 km
Maximum attenuation    SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation    NSR-DBA, SR-DBA
Support    FEC, AES128, SCB, OLS
Routing    Static IPV4 a IPV6
Multicast    IGMP Snooping/Proxy/SPR a MLD Snooping/Proxy, 256 multicast VLAN, CAC, PRV, CDR
QoS    8 queues/port, SP, DWRR, DSPC (re)mark, CIR, PIR, EIR
Security features    L2-L4 ACL, IP a MAC source guard, DOS protection, MAC/IP anti-spoofing, Anti-flooding, DHCP 82
Features    VLAN, SVLAN, QinQ, VLAN Stacking, STP/RSTP/MSTP, DHCP Server, DHCP Relay, DHCP Proxy, IPv4/IPv6 dual stack
