FiberHome GCOB OLT Kartı

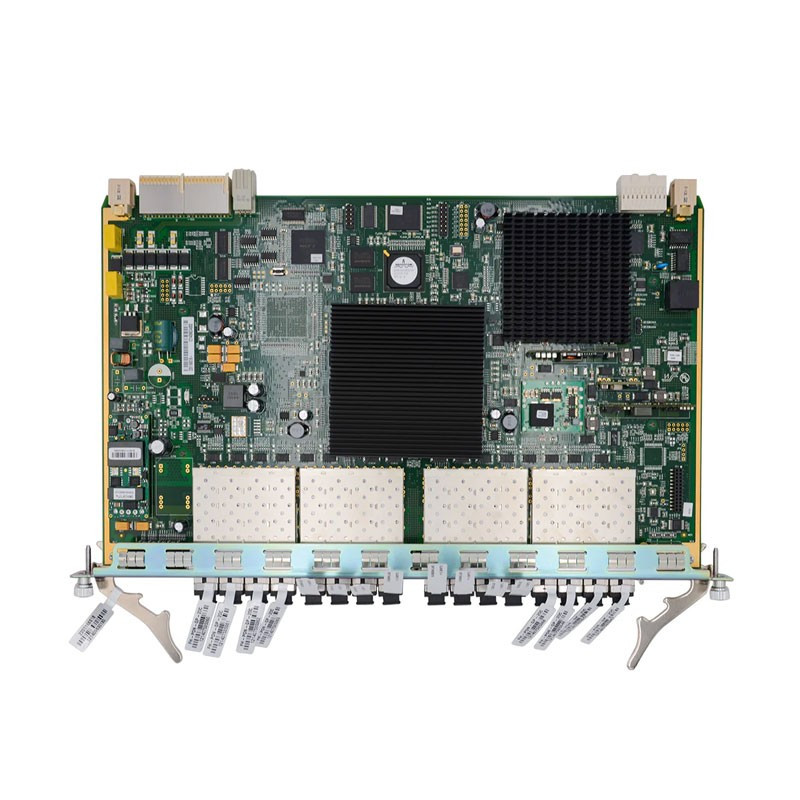

Fiberhome GCOB Board is 16-port GPON Interface Card with C+ /C++ SFP Module for AN5516 series OLT devices. AN5516 is a hybrid central office equipment (OLT) meeting the requirements for the high-speed, multi-service, and wide coverage of next-generation optical networks. It is compatible with multiple optical access methods such as EPON, GPON and 10G PON, and meets FTTX. Various application scenarios require a new generation of large-capacity carrier-grade optical fiber access equipment.
Ethernet passive optical network PON technology is aimed at voice, data, video multi-service bearer and carrier-level operations,passive ODN, no electromagnetic radiation, energy saving and environmental protection characteristics, strong adaptability to the deployment environment, and maintenance-free characteristics of ODN have become the technological choice for “optical advancement and retreat” and the construction of next-generation broadband access networks. Large-scale application in the existing network.
Fiberhome GCOB Board Product Feature
• 16 GPON ports per card, up to 1:128 split ratio
• Support ONU power saving management defined in G.987.3
• 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• Support color-sensitive RED and WRED discard algorithm
• Receive 1PPS+TOD signals and send them to the ONU through a PON channel
• Newly developed lower power GPON MAC chip
• Reduce 30% power consumption on industry average
• 1024 queues and 356 schedulers per PON port
Data sheet content
OLT-ONU
- Cihazın növü
- OLT modulu
- İstifadə növü
- General
- Cihaz protokolu
- CATV , EPON , GPON
- Giriş Portunun sayı
- 16
- Giriş portunun sürəti
- 1.2G-2.4G Gpon/Epon
- Dəstəklənən xidmətlər
- Ev tətbiqi , Internet , IPTV , QOS , VOIP
16 other products in the same category
Specifications
OLT-ONU | |
|---|---|
| Cihazın növü | OLT modulu |
| İstifadə növü | General |
| Cihaz protokolu | CATV, EPON, GPON |
| Giriş Portunun sayı | 16 |
| Giriş portunun sürəti | 1.2G-2.4G Gpon/Epon |
| Dəstəklənən xidmətlər | Ev tətbiqi, Internet, IPTV, QOS, VOIP |
Fiberhome GCOB Board is 16-port GPON Interface Card with C+ /C++ SFP Module for AN5516 series OLT devices. AN5516 is a hybrid central office equipment (OLT) meeting the requirements for the high-speed, multi-service, and wide coverage of next-generation optical networks. It is compatible with multiple optical access methods such as EPON, GPON and 10G PON, and meets FTTX. Various application scenarios require a new generation of large-capacity carrier-grade optical fiber access equipment.
