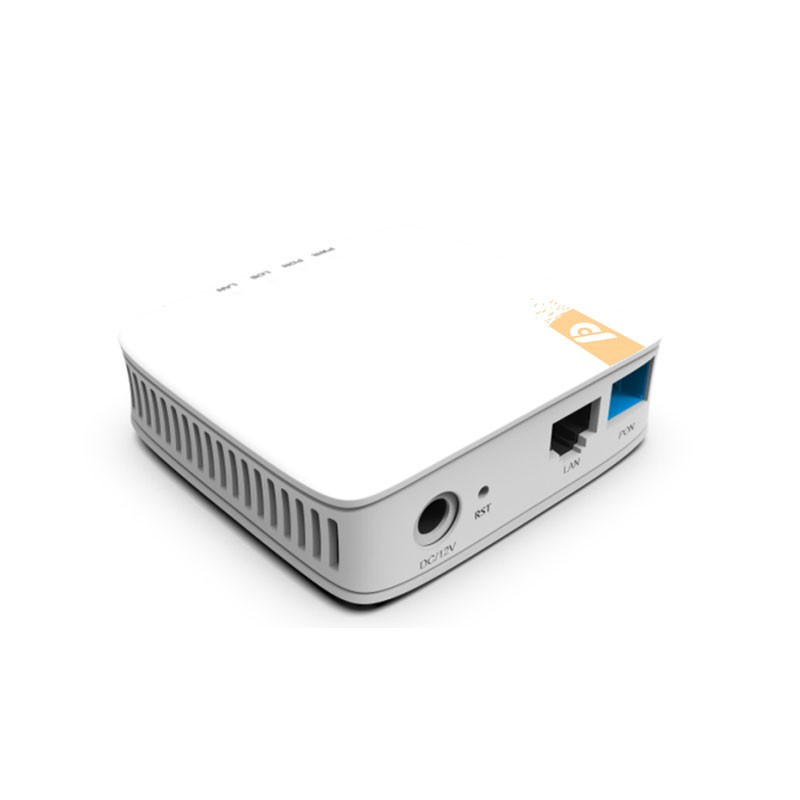

Bir gigabit portlu HOUF-1GS fiber optik modem

One of the special advantages of Houper modems and OLTs is the exclusive firmware with the ability to integrate with all standard brands, including Nokia, Alcatel, Cisco, Huawei, Fiberhome, ZTE, and even local OLTs and ONTs of any country.

HOUF-1GS

1*G/EPON interface：SC/UPC/APC interface，Comply with GPON and EPON standards
1* Ethernet interface：10Mbps/100Mbps/1000Mbps，RJ-45，Comply IEEE802.3–2005 standards

1GE

G/EPON ONT

Network topology

Hardware Parameters

LED PWR+PON/LOS+NET+LAN

Port 1*RJ45(GE)

1*Reset+1*Power+1*LAN

1*SC/APC (or SC/UPC)

1*DC

Size 190*135*33mm(L*W*H)

Power Consumption ≤8W

Ethernet Port

Ethernet port-based VLAN tags and tag removal

VLAN transparent and aggregation

MAC address learning

10/100/1000Mbps Auto negotiation

Environment

Operate Temperature 0℃~45℃

Storage Temperature -20℃~70℃

Operating Humidity 5%～95%（non-condensing）

Power Supply 12V/1A

Product Function

G/EPON

ITU-T G.984.1-4

IEEE 802.3ah

15 TCONTs /256GEM ports

8 Egress queues per TCONT at least

VLAN or VLAN plus priority gem mapping mode

SN/LOID/SN+ Password authentication

Performance monitoring: eth/Gem port

Dying gasp

Layer 2 Features

MAC learning (SVL)/aging

Support max frame length to1518 bytes

VLAN tagging for untagged packets

Support VLAN 1-4094

VLAN transparent/translation

Multicast

IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)

IGMP snooping

Product Function-Continued

Management

OMCI/Web UI

SSH management with CLI commands

Dual-system software backup and rollback
