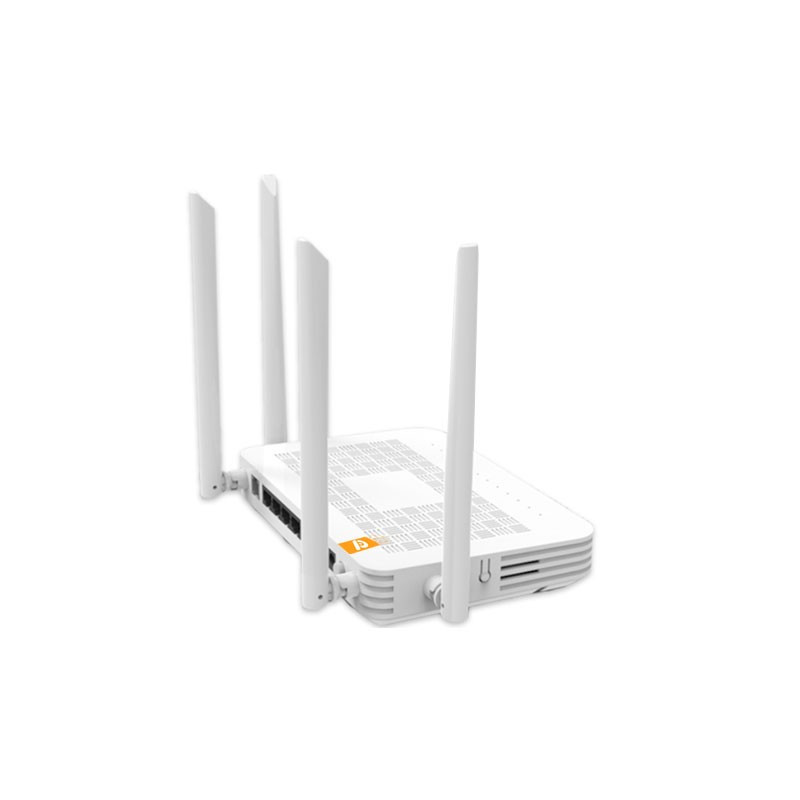

4GE fiber optik XGPON modem, VOIP, WiFi6 və USB uplink 10G

One of the special advantages of Houper modems and OLTs is the exclusive firmware with the ability to integrate with all standard brands, including Nokia, Alcatel, Cisco, Huawei, Fiberhome, ZTE, and even local OLTs and ONTs of any country.

Features
Support 《Technical Specification for Intelligent Home Gateway of China Mobile》
Support JVM
Support the list of packages of Java SE Embedded compact1 profile
Support OSGi
Support China Mobile Intelligent Home Gateway Smart Plug-in and APP

XGPON
Supports upstream 2.48832bps and downstream 9.98328Gbps asymmetric rates.
Support G.984.3, G.987.3, G.989, IEEE 802.3, G.988 and other protocols;
Provide traffic management, QoS, multicast, encryption and decryption, service flow classification, bridging, NAT/NAPT, PPPoE, gateway processing and other service processing functions;

WiFi6
Complies with IEEE 802.11 a/b/g/n/ac/ax standards.
Supports 20/40M bandwidth in the 2.4G band and 20/40/80M bandwidth in the 5G band.
2T2R in 2.4G + 2T2R in 5G, supports up to 573+1201Mbps PHY rate.
MU-MIMO TX/RX support.
Supports MU-OFDMA TX/RX.
Can be configured as 2x2 MIMO A band, or 2x2 MIMO G band, or 2x2 MIMO A band + 2x2 MIMO G band.
Supports global Wi-Fi 5G channels, including the new band (5925MHz) in the US and China.
Integrated 2.4GHz/5GHz PA, LNA and TRSW.
Integrated power detector to support Tx power control per packet.
Built-in calibration of PVT variations

Services
Data

The HOUF-1297W ONT is delivered with 4 * 10/100/1000 Base-T interface, supporting:
Auto-negotiation and MDI/MDIX auto-sensing
Built-in layer-2 switch
Advanced data features such as VLAN tag manipulation, classification, and filtering
Built-in layer-3 routing and residential gateway
2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface
USB x 2Video

The HOUF-1297W ONT supports video contents delivered in the form of data (by multicast or unicast).
Voice
Multiple voice codec
Echo Cancelling, VAD, CNG
Supporting static or dynamic jitter buffer
Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)
MEGACO v2 (H.248)
To enable VoIP access, the HOUF-1297W ONT also supports interfacing external IAD box or Home Router with voice capability through the Ethernet Interface.
