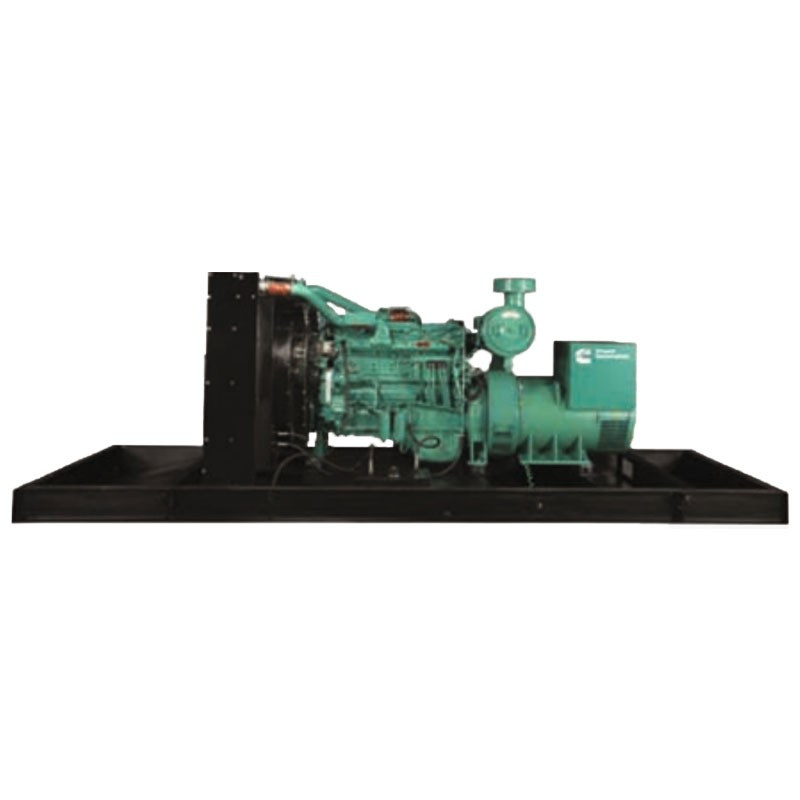

QSN14 Cummins Dizel Generator

Review (0)

Diesel generator QSN14 Series 400 kva, 320 kwe prime is a powerful device for providing electricity in emergency situations. It can be used as the main source of power. This generator has a Cummins QSN14 Series diesel engine. It produces continuous and stable electricity with a power of 400 kva and 320 kwe.

This model of diesel generator is manufactured by Cummins with 487 horsepower (bhp). It has been approved by the Ministry of Environment (MoEF). This diesel generator is upgraded to provide the required power in kVA. The minimum power required for the original kVA is 475 bhp. It also has an EG Compleat 50:50 liquid cooling system. It has a turbocharger and intake air cooling system.

In addition, it has 6 in-line cylinders, a compression ratio of 16.5:1, and a volume of 14 liters.

Engine

Cummins QSN14 series, 6 cylindar, Intine 4 stroke, radiator cooled engine

Well designed air handling system with

Dry type. Replaceable paper element air cleaner with restriction indicator

Air to air aftercooling

Optimised Turbocharger for increased altitude capabilities

Best in class fuel economy with

CELECT fuel system with A1 class electronic governing

Dual fuel filter system: Pre filter including water separator and Water In Fuel (WIF) sensor and main filter

Electrical lift pump for faster response

Standard integral set-emounted radiator system. Designed and tested for 50°C ambient ternperature

Full flow spin on lube of filter

Plate type lube oil cooler

First fill of lube oil and coolant

Electrical starter motor with soft start engagement feature

Battery charging altemator

2x12 V DC batteries

Alternator

Stamford HC alternator frames from Cummins Geneartor Technologies

Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IS/EC 60034-1

3 Phase reconnectable winding with 12 terminals brought out for connection

Better motor starting capability

Best in class efficiency

Compact design with sealed bearings for longer life and lesser maintenance

Impregnation on all wound components for better mechanical strength

PS0602 Features

Cummins PowerStart PS0602 control is a microprocessor based generator set monitoring, metering and control system with LCD display designed to meet the demands of today's engine driven generator sets

AMF Functionality

Electronic Governing

CAN (J1939) Compatible

Sync Compatible (Capable to accept external speed signal from 3rd party sync controller)

Intuitive operator interface which includes LED backlit 128X64 pixel graphic display with tactile feel soft- switches & generator set status LED lamps.

Remote start-stop
