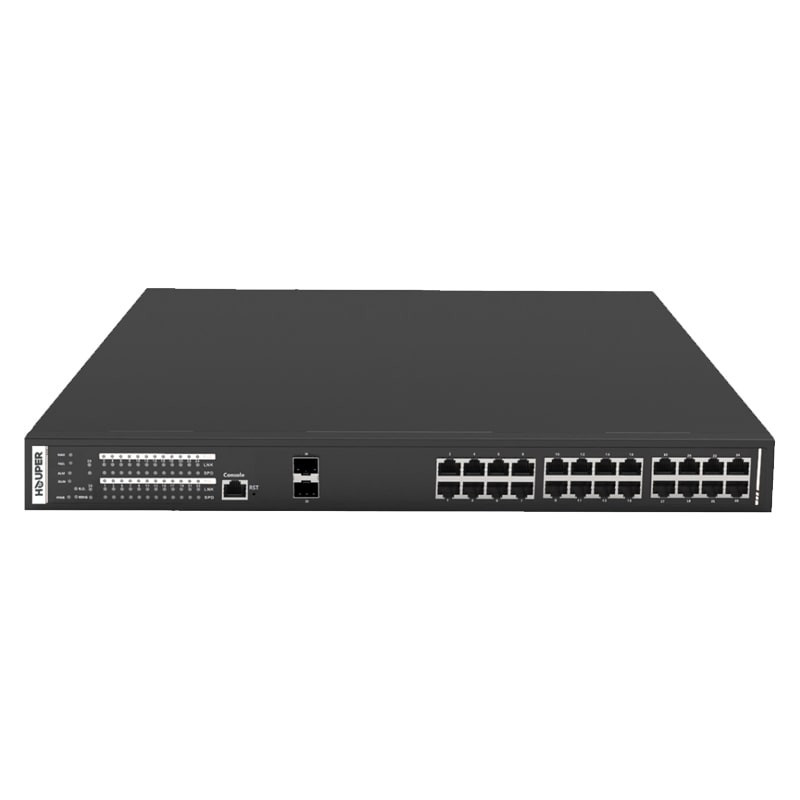

سوئیچ صنعتی رکمونت HOP3440S1226-2TP هوپر با 24 پورت گیگابیتی POE و 2 فیبرنوری آپلینک

24 Port Managed POE Switch with 2 Gigabit SFP Port HOP3440S1226-2TP is a new generation Power over Ethernet switch with 24-Port 10/100/1000Base-TX and 2xGigabit uplink ports that provide stable and reliable Ethernet transmission. With high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+ power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises.

Product Features

IEEE 802.3af/at POE Standard, without damaging non-PoE devices.

Advanced POE management functions: POE output setting, Smart POE, POE

scheduling and POE Budget Management

Priority system for POE Port, it will supply power to the high priority level port first when the power budget is insufficient.

Full gigabit L2+ management, easy to manage the POE network by CLI/Cloud/WebGUl/NMS

Build up an redundant PoE network with STP/RSTP/MSTP/ERPSv2.

RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security

Bandwidth management prevents unpredictable network status with "Lock Port" to restrict access to authorized MAC addresses

QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, sp, WRR&SP+WRR

Ethernet Interface

Model

HOP3440S1226-2TP

Pons

2xGigabit SFP Port

Base-TX RJ45

Port Mode(Tx)

Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

SFP Port Transmission

Multi-mode: 850nm/O-500M, Single-mode: 1310nm/O-40km, 1550nm/up to 120km

RJ45 Port Transmission

100m (using standard CAT5/CAT5e cable)

Standards

IEEE 802.3 for IOBaseT

IEEE 802.3u for IOOBaseT(X) and IOOBaseFX

IEEE 802.3ab for IOOBaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1 D-2004 for Spanning Tree Protocol

IEEE 802.lw for Rapid Spanning Tree Protocol

IEEE 802. Is for Multiple Spanning Tree Protocol

IEEE 802.lp for Class of Service

IEEE 802. IQ for VLAN Tagging

IEEE 802. IX for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size: 4Mbits

Maximum Packet Length: Up to 10K

MAC Address Table: 8K

Transmission Mode: Store and Forward (full/half duplex mode)

Exchange Property

Delay time: < 7gs

Backplane bandwidth: 56Gbps; Packet Forwarding Rate: 47.616Mbps

IGMP Group:4096

Max. No. of VLAN: 256

VLAN ID Range: VID 1 to 4094

POE & Power Supply

PoE Pons

Port 1 to 24 IEEE802.3af/at @PoE+

Power Supply Pin

Default: 1/2(+), 3/6(-)

Max Power Per Port

30W

Total PWR

350W (Model dependent)

Power Consumption

24 Watts Max (without POE load)

Power Inputs: I

Power Supply

Internal power adapter with ACIOO - 240V 50-60Hz input

Protection

Overload Current Protection, Reverse Polarity Protection

Physical Characteristics

Housing

Metal

IP Rating

P30

Dimensions

440mm

Installation Mode

IRU Chassis Rack-Mount Installation

Weight

4000g

Environment

Operating Temperature

OOC500C(32to 122T)

Operating Humidity

e (non-condensing)

Storage Temperature

(-4 to 158 OF)

MTBF

100,819 Hours

MTBF Standard

Telcordia SR-332 GB 250C

Cooling

Passive

Noise Level: 00 dBA

Ethernet Software Features

Redundancy Protocols

support STP/RSTP/MSTP/ERPSv2, Link Aggregation

Multicast Support

Support IGMP Snooping VI/V2/V3, support GMRP, GVMP, 802.1Q

VLAN

IEEE 802.1 Q 4K VLAN, support QINQ, Double VLAN,

Time Management: SNTP

QOS

Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1 p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL

ACL based on port and VLAN

1.2 to L4 packet filtering, matching first 80 bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination

IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

POE Management

Total power limit of POE power supply

POE output power allocation, on/off with at/af/bt

POE output priority configuration

POE working status

Scheduling of POE operation

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Functions

Support CLIS WEBS SNMPv1/v2/v3, Telnet server for management, EEE, LLDP,

DHCP Server/Client(lPv4/lPv6), Cloud/MQTT

Alarm Management Support I way relay alarm output, RMON, TRAP

Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.O

Support DHCP Snooping, Option 82, 802. IX security access,

Support user hierarchical management, ACL access control list,

Support DDOS, port-based MAC filtering / binding, MAC black holes, IP source

protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management
