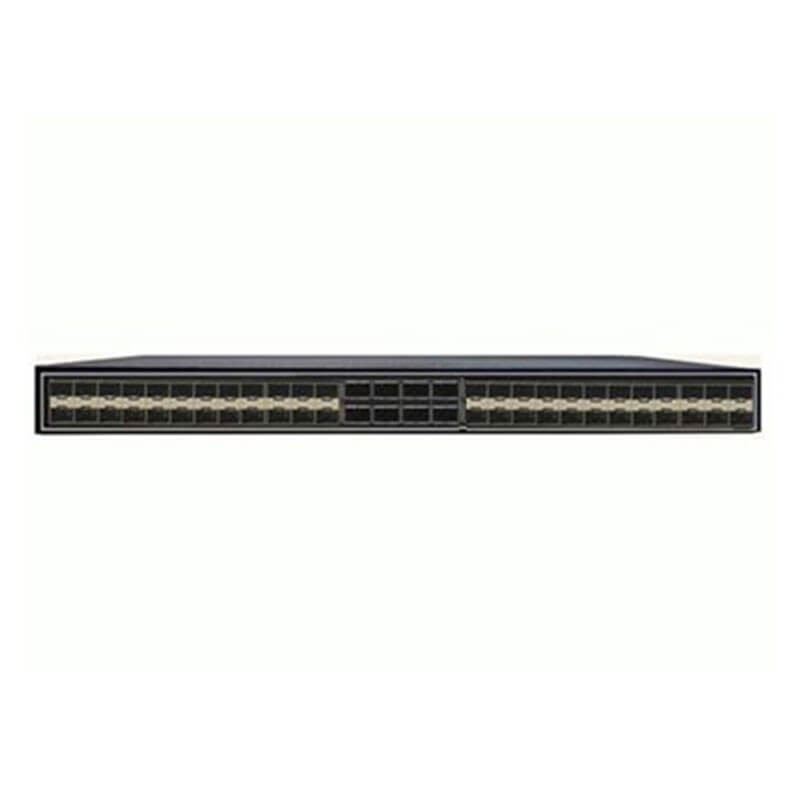

HOP6865-56YC- 48 port 25 Gigabit Access and 8x100 Gigabit Uplink keçid

Specifications:

• Ultra-high density 10 Gigabit optical port access,48*25Goptical ports,8*100Goptical ports.
• 4T super-large switching capacity to meet the ultra-high bandwidth application requirements of operator aggregation, enterprise network, and data center.
• Support rich service features, L2,L3,MPLS,VxLAN,OAM/APSand other features.
• Supports security and flow control features, hardware-based NetFlow, and high-precision clock features.
• Support elastic stacking function to achieve unified management, upgrade and maintenance of multiple devices.
• Modular design of the whole machine, pluggable design of fans and power supply components.
• Support IPv4/IPv6 dual-stack platform, support RIP/OSPF/RIPng/OSPFv3/PIM and other routing protocols.
• Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols.
• Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions.
• Support Ethernet OAM 802.3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms.
• Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication.
• Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand.
• Support IPv4/IPv6 static routing function.
• Supports multi-port mirroring analysis and service flow-based image analysis.
• Support static and flexible QinQfunction.
• Support IPV4/6unicast routing in the policy, support flexible forwarding policy.
• Supports CLI command line management based on serial port, Telnet, and SSHv2 mode.
• Support RFC1213 SNMP network management.
• Supports configuration management based on WEB pages.

Product Specifications:

Physical Interface:

• 25G optical port: 48*25G optical ports, type SFP28.
• 100G optical port: 8*100G optical ports, type QSFP28.
• Console port: manage serial port, used for command line management, type RS232.
• AUX debug port: out-of-band management interface for Telnet/SSH/WEB login control, type RJ45.

Working environment:

• Operating temperature: -15C~55C.
• Storage temperature: -40C~70C.
• Relative humidity: 10%~90%, non-condensing.

Power consumption:

• Power supply specifications: 1+1 redundant power supply, AC/DC optional
• Input power: AC: input 90~ 264V, 47 ~ 67Hz; DC: -36V~ -72V.
• Power consumption of the whole machine: full load power consumption ≤180W, idle power consumption ≤25W.

Mechanical structure:

• Chassis shell: metal shell, air-cooled heat dissipation.
• Power supply fan: modular design of power supply and fan, support hot swappable, support fan speed control and alarm detection.
• Chassis size: dimensions (length * width * height) (mm) 440 * 390 * 44.
• Installation: Standard 19 inch 1U rackmount installation.
