HOP28110 transkoder

66.667,39 ₺

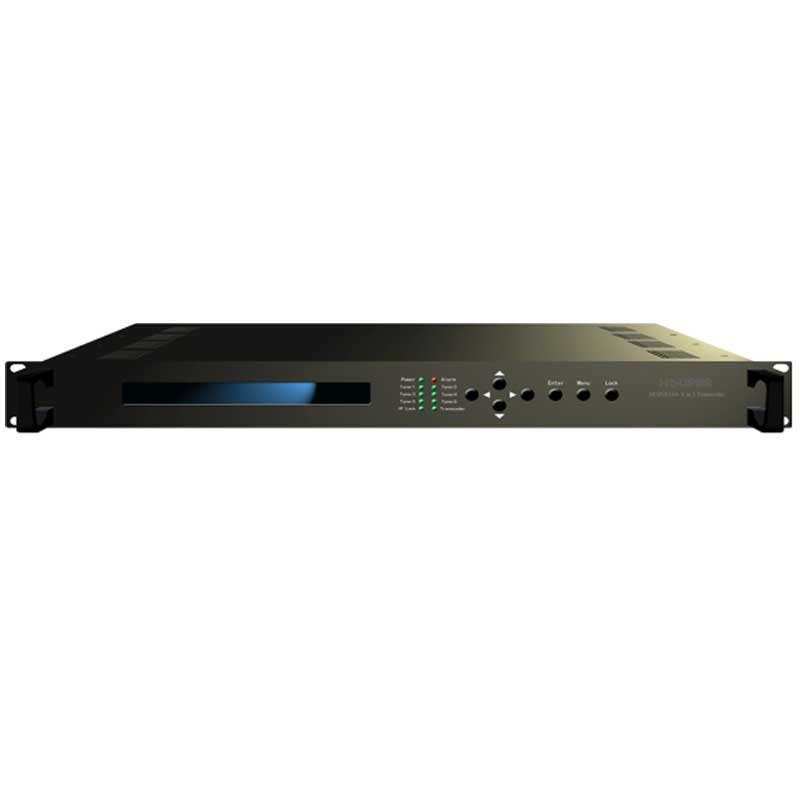

HOP28110 is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or 6 ASI /8 IP inputs to receive digital channels. (HOP28110.1 is a simple version with 4 Tuners only or 4 ASI inputs only without IP input.) After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.


This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.
BISS function is now embedded to descramble your tuner input programs and CC function as well to transport your closed caption (or teletext).
It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.


Support 8*IP (SPTS/MPTS) input plus 6*tuners (or 6*ASI) input
4* tuners (or 4*ASI) input
Support 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI (MPTS) output
Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any
Audio Trans-coding: LC-AAC, MP2 and AC3 any-to-any or pass-through.
Support maximal 8 SD or 4 HD programs trans-coding
Support maximal 8 channel audio trans-coding
Support HD and SD resolutions
Support CBR and VBR rate control
Support CC (closed caption)
Support BISS descrambling
Support IP out with null packet filtered
Advanced re-multiplexing
LCD & Key board local control; web NMS management

Stream In
MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/ SFP interface
6 * (DVB-S/S2/C/T/ISDB-T/ATSC) Tuners; 6 * ASI (optional)
4 * (DVB-S/S2/C/T/ISDB-T/ATSC) Tuners; 4 * ASI (optional)

Resolution 1920x1080P,1920x1080i,1280x720P, 720x576i, 720x480i,480x576, 544x576, 640x576, 704x576
Rate Control CBR/VBR

Trans-coding MPEG-1 Layer 2, LC-AAC and AC3 any-to-any or pass through
Sampling rate 48KHz
Bit Rate 32/48/64/96/128/192/224/256/320/384Kbps

Stream Out
8*SPTS & 1*MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast) /SFP interface

System Function
LCD & Key board control; web NMS management
Ethernet software upgrade
