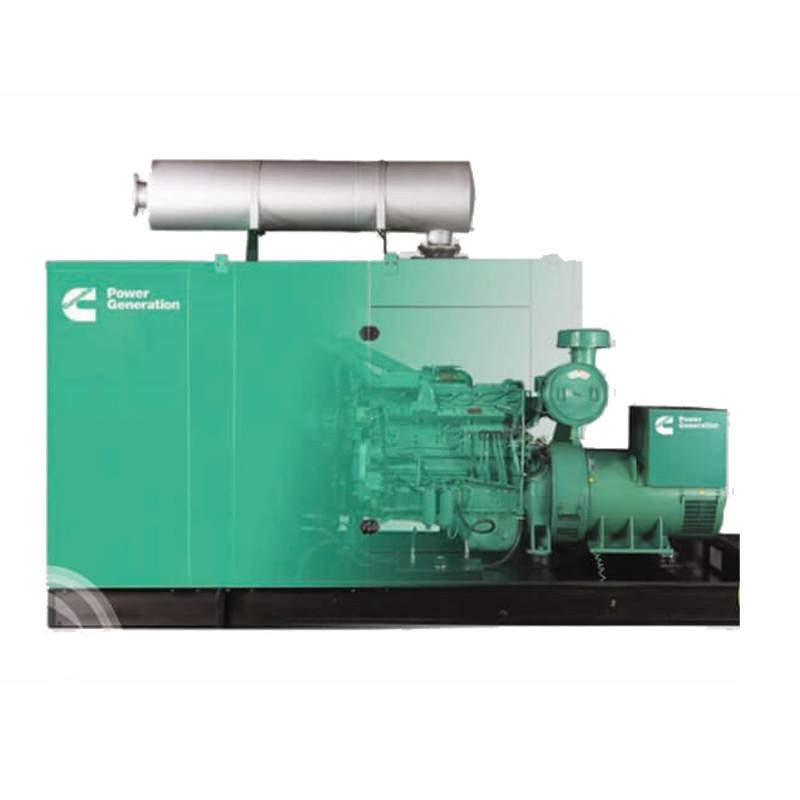

500KVA CUMMINS DİZEL GENERATÖR,C500D5P

Reliable Technology And Unmatched Performance

• The Cummins® K19 series rugged engine and world class Stamford alternator powered diesel generator set

•  Proven technology with mechanical simplicity of Cummins PT fuel system.

• Advanced in-cylinder technology to meet latest emission norms without any after-treatment device

• Smart aesthetic and superior finish

• Compact in size with optimum power to weight ratio

Environment Friendly Power

• Class defining technology engine is designed to meet stringent exhaust emission tests as per revised MoEF norms, thus offering environment friendly power.

• The Cummins® diesel generator sets are available with the lowest noise levels in its range

Lowest Operating Cost and Comprehensive Warranty

• Highly reliable and durable product

• All elements are designed to work together to maximize efficiency even at part loads, offering the advantage of lowest operating costs.

• 300 Hours/ 1 year service interval

• Industry acknowledged best-in-class comprehensive warranty on the entire package including rubber components

Single Source Power Assurance

• All the major components – the engine, alternator, control system and canopy are designed, manufactured and tested by Cummins India.

• Best and largest customer support network in India,

• Capable of providing round-the-clock service and spares support

• All these things put together, Cummins® offers you SINGLE SOURCE POWER ASSURANCE

Engine

• Cummins® K19 series, 6 cylinder, In-line 4 stroke, radiator cooled engine

•  Highly stable and reliable design with square engine

• Well designed air handling system with

— Dry type, Replacable paper element air cleaner with restriction indicator

 — Air to air aftercooling

— Optimised turbocharger for increased altitude capabilities

• Best in class fuel economy with

-  PT fuel system with Electronic Step Timing Control (ESTC) injectors which smoothly stabilise engine speed under load with A1 class Electronic governing

- Dual fuel filter system: Pre filter including water separator and Water In Fuel (WI F) sensor and main filter

• Standard integral set-mounted radiator system, designed and tested for 50°C ambient temperatures

• Spin on lube oil filter

• Plate type lube oil cooler

• First fill of lube oil and coolant

• Electrical starter motor with soft start engagement feature

• Battery charging alternator

• 2 X 12 V DC battery

Alternator

• Stamford HC alternator frames from cummins Generator Technologies

• Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IS/IEC 60034-1

• 3 Phase reconnectable winding with 12 terminals brought out for connection

• Better motor starting capability

• Best in class efficiency

• Compact design with sealed bearings for longer life and lesser maintenance

• Impregnation on all wound components for better mechanical strength

Control Panel

Control panel is manufactured with 14/16 gauge CRCA sheet and is powder coated for weather-proof and long lasting finish. The control panel consists of the following parts:

• Power Command 1.2 Controller

• Aluminum bus bars with suitable capacity with incoming/ outgoing terminals

• Indicating lamps for ‘Load ON’ and ‘Set Running’

• Instrument fuses duly wired and ferruled

• MCCB of suitable rating with overload and short circuit protections

PowerCommand 1.2 features

The PowerCommand control system is a microprocessorbased generator set monitoring, metering and control system with LCD display designed to meet the demands of today’s engine driven generator sets

• Intuitive operator interface which includes LED backlit LCD display with tactile feel soft-switches & generator set status LED lamps Digital AVR for shunt or PMG excitation with torque matching.

• Digital AVR for shunt or PMG excitation with torque matching.

• Digital electronic governing with temperature compensation and smart starting.

• SAE J1939 interface to Full Authority Electronic (FAE) engines.

• Remote start-stop

• Engine metering: Oil pressure, Coolant temperature, Battery voltage, Engine speed

 • AC Alternator metering: L-L Voltage and L-N Voltage, Current (1 and 3 phase), Volt-Amperes (phase and total) and Frequency.

• Engine protection: Low lube oil pressure, High/Low coolant temperature, Over speed, Battery Over/Under/Weak Volts, Fail to crank/start, Sensor failure.

• AC Alternator protection: Over/Under voltage, Over/Under frequency, Over current, Short circuit and Loss of AC sensing.

• Data logging: Engine hours, Control hours, Engine starts and upto 10 recent fault codes

• Configurable glow plug control

• Configurable cycle cranking

• 12 and 24 Volt DC operation

• Sleep mode

• Programmable I/Os (4 inputs and 2 outputs), expandable with AUX101/102 modules

• Modbus interface (RS485 RTU)

• InPower compatible (PC based service tool)

• Certifications - meets the requirement of relevant UL, NFPA, ISO, IEC, Mil Std., CE and CSA standards

Silencer

•  Hospital grade silencer with rain cap suitably optimised to meet stringent noise emission standards laid down by MoEF / CPCB

Mounting Arrangement

• Engine and alternator are mounted on a common MS fabricated base frame with AVM pads.

• Base frame with integral fuel tank is provided with drain plug, air vent, inlet and outlet connection, level indicator and provision for cleaning

Optional

• Engine: Coolant heaterr, Heavy duty air cleaner, Heat exchanger, No cool, Remote radiator

• Alternator: PMG

• Control Panel: PC3.3, Microprocessor / relay based AMF control panel

•   Others: Trolley mounted mobile sets

Acoustic Enclosure

• Specially designed to meet stringent MoEF/ CPCB norms of 75 dBA @ 1mtr at 75% load under free field conditions

• The acoustic enclosure is made of CRCA sheets in munsel green shade and a structural/ sheet metal base frame painted in black.

• High quality noise absorbant and fire-retardant grade acoustic Insulation material (P.U. Foam) complying to IS 8183

• Two point lifting for easy handling at customer site

• Designed to have optimum serviceability

• Air inlet louvers specially designed to operate at rated load

• Made on special purpose CNC machines for consistency in quality and workmanship

• 11 tank pretreatment process and UV resistant Powder Coating of all parts to withstand extreme environment

• Use of special hardware for longer life

• Flush styling - no projections

• Fluid drains for lube oil and fuel

• Fuel filling arrangement inside the enclosure
