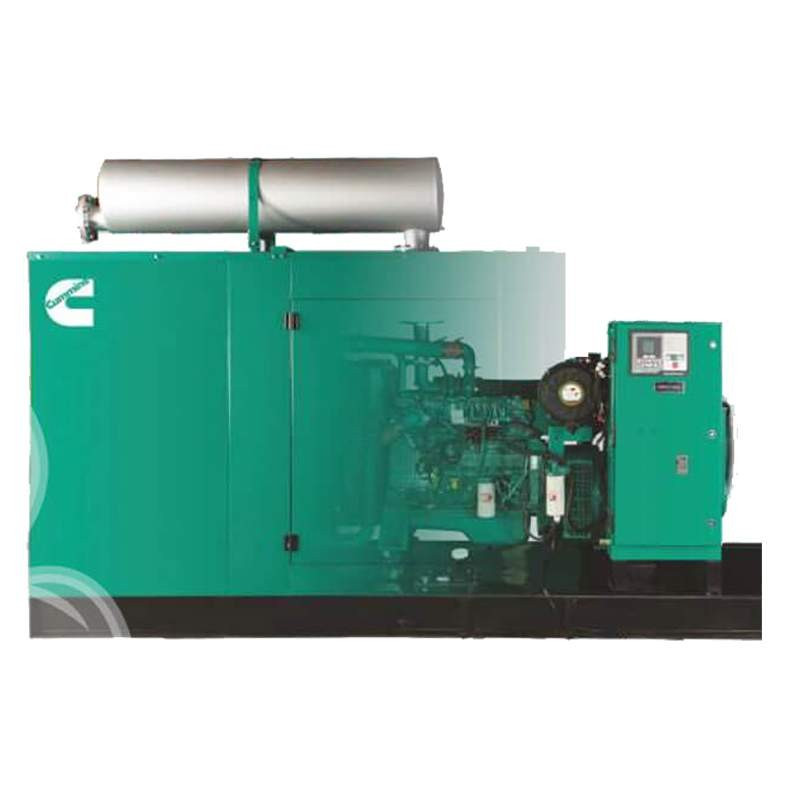

180KVA CUMMINS DİZEL GENERATÖR,C180D5P
Dizel generator modeli C180D5P Cummins Hand zavodunun QSB6.7 seriyasındandır.Bu dizel generatorunun dəqiq mühərrik modeli 6 silindrli, 4 vuruşlu mühərrik olan QSB6.7-G14 -dir. Cummins Dynamo fabriki bu dizel generatorunu S3L1D-G Stamford modelindən seçdi.Cummins C180D5P dizel generatorunda prosesləri idarə etmək üçün PSO602 nəzarətçisi istifadə olunur.
Bu dizel generatorunun çıxış gərginliyi 415 volt, işləmə tezliyi isə 50 Hz-dir və qeyd etmək lazımdır ki, C180D5P dizel generatoru üç fazalı dizel generatorudur.
C180D5P dizel generatoru SƏSSİZ NÖVLÜDÜR
Latest Technology Product with Global Cummins Platform
• The Cummins® QSB6.7 series rugged engine and world class Stamford alternator powered diesel generator set
• Class defining Quantum engine technology with fully integrated subsystem
• Full Authority Electronic Engine
• Advanced in-cylinder technology to meet latest emission norms without any after-treatment device
• Smart aesthetic and superior finish
• Compact in size with optimum power to weight ratio
Environment Friendly Power
• Class defining technology engine is designed to meet stringent exhaust emission tests as per revised MoEF norms, thus offering environment friendly power.
• The Cummins® diesel generator sets are available with the lowest noise levels in its range
Lowest Operating Cost and Comprehensive Warranty
• Highly reliable and durable product
• All elements are designed to work together to maximize efficiency even at part loads, offering the advantage of lowest operating costs.
• 500 Hours/ 1 year service interval
• Industry acknowledged best-in-class comprehensive warranty on the entire package including rubber components
Single Source Power Assurance
• All the major components – the engine, alternator, control system and canopy are designed, manufactured and tested by Cummins India.
• Best and largest customer support network in India,
• Capable of providing round-the-clock service and spares support
• All these things put together, Cummins® offers you SINGLE SOURCE POWER ASSURANCE
Engine
• Cummins® QSB6.7 series, 6 cylinder, In-line 4 stroke, radiator cooled engine
• Full Authority Electronic Engine
• Well designed air handling system with
— Dry type, Heavy duty, Replacable paper element air cleaner with restriction indicator
— Air to air aftercooling
— Optimised turbocharger for increased altitude capabilities
• Best in class fuel economy with
- Bosch H PCR fuel system with A1 class electronic governing
- Dual fuel filter system: Pre filter including water separator and Water In Fuel (WI F) sensor and main filter
• Standard integral set-mounted radiator system, designed and tested for 50°C ambient temperatures
• Full flow spin on lube oil filter
• First fill of lube oil and coolant
• Electrical starter motor with soft start engagement feature
• Battery charging alternator
• 2 X 12 V DC battery
Alternator
• Stamford S3L1D alternator frames from cummins Generator Technologies
• Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IS/IEC 60034-1
• 3 Phase dedicated winding with 6 terminals brought out for connection
• Better motor starting capability
• Best in class efficiency
• Compact design with sealed bearings for longer life and lesser maintenance
• Impregnation on all wound components for better mechanical strength
• Digital Automatic Voltage Regulator
PS0602 Features
Cummins® PowerStart™ PS0602 control is a microprocessor based generator set monitoring, metering and control system with LCD display designed to meet the demands of today's engine driven generator sets
• AMF Functionality
Electronic Governing
• CAN (J1939) Compatible
• Sync Compatible (Capable to accept external speed signal from 3rd party sync controller)
• Intuitive operator interface which includes LED backlit 128X64 pixel graphic display with tactile feel soft- switches & generator set status LED lamps.
• Remote start-stop
• Engine Metering: Oil pressure, Engine temperature, battery voltage, Engine running hours
• AC Alternator Metering: L-L Voltage and L-N Voltage,
• Current (phase and total), kVA (phase and total), Frequency, kWH, kW and kVA (phase and total), PF, Utility Voltage and Freq.
• Engine Protection: Low lube oil pressure, High/ Low coolant temperature, Battery Over/ Under/ Weak Volts, Fail to Crank/ Start, Sensor failure, Cranking lockout.
• AC Alternator Protection: Over/ Under Voltage, Over/ Under Frequency, Loss of AC Sensing, Over speed, Over Current.
• Data Logging: Engine Hours, Control Hours and upto 5 recent fault codes
• Configurable glow plug control
• 12/24 Volt DC operation
• Sleepmode
• Mod bus interface (RS485 RTU)
• In Power compatible (PC based service tool)
• Certifications - meets the requirement of relevant ISO, EN, Mil Std. and CE standards Maintenance due alarm based on Engine Run Time and due date
• Exerciser scheduler
Silencer
• Hospital grade silencer with rain cap suitably optimised to meet stringent noise emission standards laid down by MoEF / CPCB
Mounting Arrangement
• Engine and alternator are mounted on a common MS fabricated base frame with AVM pads.
• Base frame with integral fuel tank is provided with drain plug, air vent, inlet and outlet connection, level indicator and provision for cleaning
Optional
• Engine: Coolant heater
• Alternator: PMG
• Control Panel: PC3.3,
-Bargraph For PC3.3 Panel with kW, Power factor, Frequency, Current, Voltage
- Remote HMI.
Acoustic Enclosure
• Specially designed to meet stringent MoEF/ CPCB norms of 75 dBA @ 1mtr at 75% load under free field conditions
• The acoustic enclosure is made of CRCA sheets in munsel green shade and a structural/ sheet metal base frame painted in black.
• High quality noise absorbant and fire-retardant grade acoustic Insulation material (P.U. Foam) complying to IS 8183
• Two point lifting for easy handling at customer site
• Designed to have optimum serviceability
• Air inlet louvers specially designed to operate at rated load
• Made on special purpose CNC machines for consistency in quality and workmanship
• 11 tank pretreatment process and UV resistant Powder Coating of all parts to withstand extreme environment
• Use of special hardware for longer life
• Flush styling - no projections
• Fluid drains for lube oil and fuel
• Fuel filling arrangement inside the enclosure
Data sheet content
Diesel-engines
- Nəzarət Sistemi
- PS0602
- Mövcud gərginliklər
- (50 Hz) 415 V
- Configuration
- 6 cylinder , In-line 4 stroke
- Displacement
- 6.7 liter
- Tezlik (Hz)
- 50
- Çıxış gücü (kW / kVA)
- 180KVA / 144KWe
- Başlanğıc gərginliyi
- 24 V DC Electrical
- Stroke
- 124mm
- Bore
- 107mm
- Sertifikatlaşdırma
- MOEF
16 other products in the same category
100KVA CUMMINS DİZEL GENERATÖR,C100D5P
40KVA CUMMINS DİZEL GENERATÖR ,C40D5P
1500KVA CUMMINS DİZEL GENERATÖR,C1500D5P
400KVA CUMMINS DİZEL GENERATÖR , C400D5P
1250KVA CUMMINS DİZEL GENERATÖR,C1250D5P
25KVA CUMMINS DİZEL GENERATÖR ,C25D5P
320KVA CUMMINS DİZEL GENERATÖR,C320D5P
20KVA CUMMINS DİZEL GENERATÖR ,C20D5P
125KVA CUMMINS DİZEL GENERATÖR , C125D5P
2500KVA CUMMINS DİZEL GENERATÖR,C2500D5
380KVA CUMMINS DİZEL GENERATÖR,C380D5P
15 KVA CUMMINS DİZEL GENERATÖR ,C15D5P
140KVA CUMMINS DİZEL GENERATÖR , C140D5P
30KVA CUMMINS DİZEL GENERATÖR ,C30D5P
Specifications
Diesel-engines | |
---|---|
Nəzarət Sistemi | PS0602 |
Mövcud gərginliklər | (50 Hz) 415 V |
Configuration | 6 cylinder, In-line 4 stroke |
Displacement | 6.7 liter |
Tezlik (Hz) | 50 |
Çıxış gücü (kW / kVA) | 180KVA / 144KWe |
Başlanğıc gərginliyi | 24 V DC Electrical |
Stroke | 124mm |
Bore | 107mm |
Sertifikatlaşdırma | MOEF |
