Specifications

Product Highlights

Flexible 10/25/40/100GbE Interface Speeds, Support Stacking

Achieve Reliable Links With 25G NVIDIA Mellanox NIC

CE, Reach, RoHS, FCC, WEEE Certified

Features

Data Center Content Delivery

Replacing the border routers of CDN egress network with switches can ensure bandwidth quality, reduce traffic operation costs, and improve bandwidth operational efficiency.

Data Center Interconnect (DCI) Layer 2

Deploying VxLAN through DCI equipment provides Layer 2 interconnectivity between data centers across regions, enabling flexible deployment and migration of business across regions.

Data Center Security Resource Pool

The security devices form a resource pool, and various services in the data center are drained on demand, fully protecting traffic security and ensuring efficient use of resources.

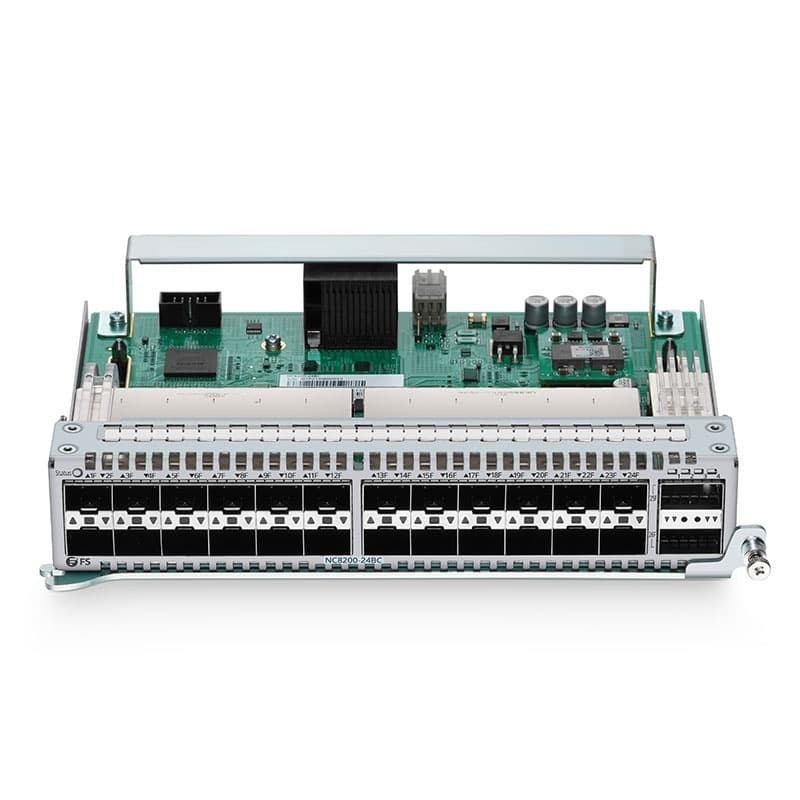

High-density 24-port 25G Line Card with 2-port 100Gb QSFP28

Fixed-configuration line card with 26 rate-selectable ports. 25G ports can operate at 10-Gbps, or 25-Gbps. 100G ports can operate at 10-Gbps, 25-Gbps, 40-Gbps, or 100-Gbps speeds.

Spine-Leaf Architecture of BGP-EVPN

Minimizes network flooding of unknown unicast and broadcast traffic through EVPN-based MAC and IP route advertisements on local VTEPs.

Port Combination with Switch Chassis

NC8200-24BC can offer a maximum of 96x 25G and 8x 100G ports within the NC8200-4TD switch chassis that supports three types of line cards: NC8200-8C, NC8200-16Q and NC8200-24BC.

NC8200-8C

Up to 32x 100G ports

NC8200-16Q

Up to 64x 40G ports

NC8200-24BC

Up to 96x 25G, 8x 100G ports

Procedure to Install the Line Card

The entire installation process can be completed in one minute without any tools.

Unscrew captive screws and remove filler cards

Insert line cards and close ejector levers

Stacking Simplifies Network Configuration

Stacking virtualization technology virtualizes multiple physical devices into a logical device, simplifying network configuration and structure, eliminating loops, and improving reliability.

2 Units

Virtual stacking

50Gbps/200Gbps

Stacking bandwidth

50ms

Fault recovery

LACP

Uplink aggregation

MLAG Enhances System Reliability

MLAG virtualization technology realizes load balancing and improves link reliability. Supports device-independent upgrades to ensure second-level upgrades for services.
