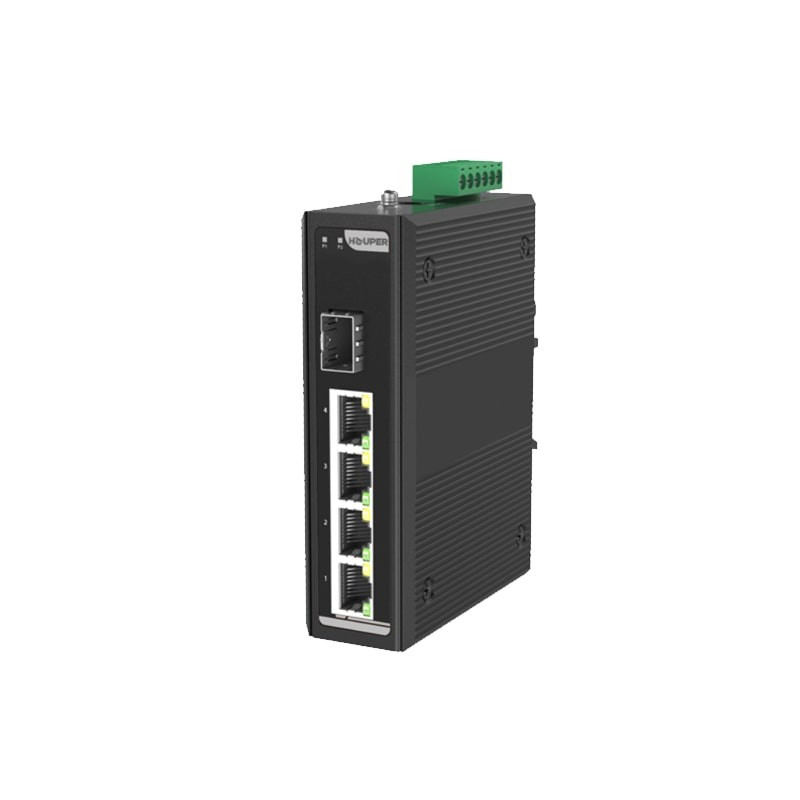

4XGE və 1XGE SFP ilə idarə olunmayan sənaye açarı HOP3412S125-lTP

Product Features

All-aluminum Case, Compact and Fanless Design

Full/HaIf-dupIex self-adaptation MDI/MDIX automatic recognition

Optionally support IEEE 802.3af/at/bt POE Standard, without damaging non-PoE devices

Operating Temperature from -40 to 750C

Dual Redundant DC9¯56V power input

Support power input polarity protection; no worries about the reverse connection

Aluminum shell, fanless design

Free fall, shock-proof and vibration-proof for industries

Plug and play; no software configuration is needed

Either DIN rail or Wall Mount installation

Ethernet Interface

ports

10/1 OOBase-TX Port(RJ45)

lxi OOBase-X(SFP/1

Port Mode(Tx):

Auto-Negotiation Speed

Full/HaIf Duplex Mode

Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3x for flow control and back pressure

e IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size

0512K

Maximum Packet Length

09K

MAC Address Table

04K

Transmission Mode

Store and Forward (full/half duplex mode)

Exchange Property Delay time:

7 gs

Backplane bandwidth: I .25G

POE & Power Supply

POE Ports

Port 1 to 4 IEEE802.3af/at @PoE+

Default

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

Max Power Per Port

30W

Total PWR /Input Voltage

120W(DC48-56V) (Model dependent)

Power Consumption

3 Watts Max (without POE load)

Input Voltage

9-56VDC, Redundant dual inputs

Operating Voltage

30W PoE Mode: 48-56VDC

Connector

I removable 6-contact terminal blocks Pin 1/2 for Power I, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection

Overload Current Protection, Reverse Polarity Protection

Physical Characteristics

Housing

Aluminum case

IP Rating

IP40

ESD Protection

6kV

EFT Protection

6kV

Dimensions

120mm x 90mm x35mm (L x W x H)

Installation

Mode DIN Rail/Wall Mount

Weight

400g (without POE)

Working Environment

(-40 to 167 OF)

Operating Humidity

(non-condensing)

Storage Temperature

(40 to 185 OF)

Heat Dissipation

10 BTU/h (Non-PoE)

0420 BTU/h (30W POE)

1260 BTU/h (90W POE)
