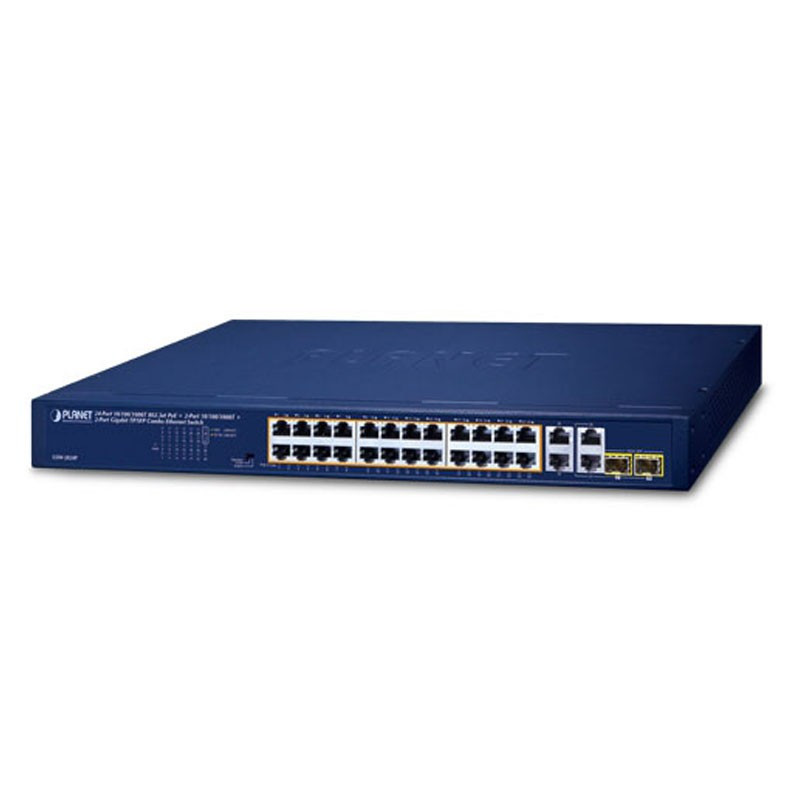

24XGE və 4XGE və 2XGE SFP ilə Planet GSW-2824P olunan açar
To facilitate 32W PoE power network applications with Gigabit speed transmission, PLANET GSW-2824P is equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports, 4 extra Gigabit TP ports and 2 1000BASE-X SFP combo interfaces with the inner power system. With a total of 250 watts of PoE budget, it features high- performance Gigabit IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 32W) capabilities on all ports.
By offering reliable switching technology and advanced networking features, the GSW-2824P optimizes the installation and power management of network devices such as wireless access points, VoIP phones, and security cameras.
It also eliminates time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring.
The GSW-2824P adopts not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status.
The PD alive check feature is applied in Standard, VLAN and Extend modes. After the PoE of the port is powered on, the device starts to detect whether the port is transmitting data. If the port does not transmit data and the duration exceeds a specific time, PoE will automatically power off and then re-power. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.
Particularly designed for the growing popular IP Surveillance applications, the GSW-2824P 802.3at PoE Switch is positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The GSW-2824P provides both 802.3at and 802.3af PoE functions along with 24 10/100/1000BASE-TX ports featuring 32-watt 802.3at PoE in RJ45 interface, 2 extra Gigabit copper ports and 2 Gigabit SFP combo interfaces supporting high-speed transmission of surveillance images and videos.
Flexible Extension Solution
The two SFP ports built in the GSW-2824P are compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to
backbone switch and monitoring center in long distance. The distance can be extended from 550 meters (multi-mode fiber) to 10/20/30/40/50/60/70/120
kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions
Data sheet content
Switch-Router
- Keçid növü
- General
- Portların sayı
- 4 , 24
- Liman sürəti
- 10-100-1000 , 10/100/1000BASE-T
- yuxarı bağlantı portları
- 2
- Uplink Port sürəti
- 10/100/1000BASE-T
- portların növü
- SFP
- yuxarı bağlantı portlarının növü
- SFP
- Power over Ethernet
- Bəli
- POE növü
- POE+ , IEEE 802.3af - 15.4W , IEEE 802.3at - 30.0W
- Layer of switch
- VLAN , Extend
- Enerji istehlakını dəyişdirin
- 200-300W
- Əməliyyat temperaturu
- -10 / +70 C
16 other products in the same category
24XGE VƏ 2XGE SFP ilə HOP3412S1226-2TX
64*400G ilə N9510-64D məlumat mərkəzi açarı
Specifications
Switch-Router | |
---|---|
Keçid növü | General |
Portların sayı | 4, 24 |
Liman sürəti | 10-100-1000, 10/100/1000BASE-T |
yuxarı bağlantı portları | 2 |
Uplink Port sürəti | 10/100/1000BASE-T |
portların növü | SFP |
yuxarı bağlantı portlarının növü | SFP |
Power over Ethernet | Bəli |
POE növü | POE+, IEEE 802.3af - 15.4W, IEEE 802.3at - 30.0W |
Layer of switch | VLAN, Extend |
Enerji istehlakını dəyişdirin | 200-300W |
Əməliyyat temperaturu | -10 / +70 C |
