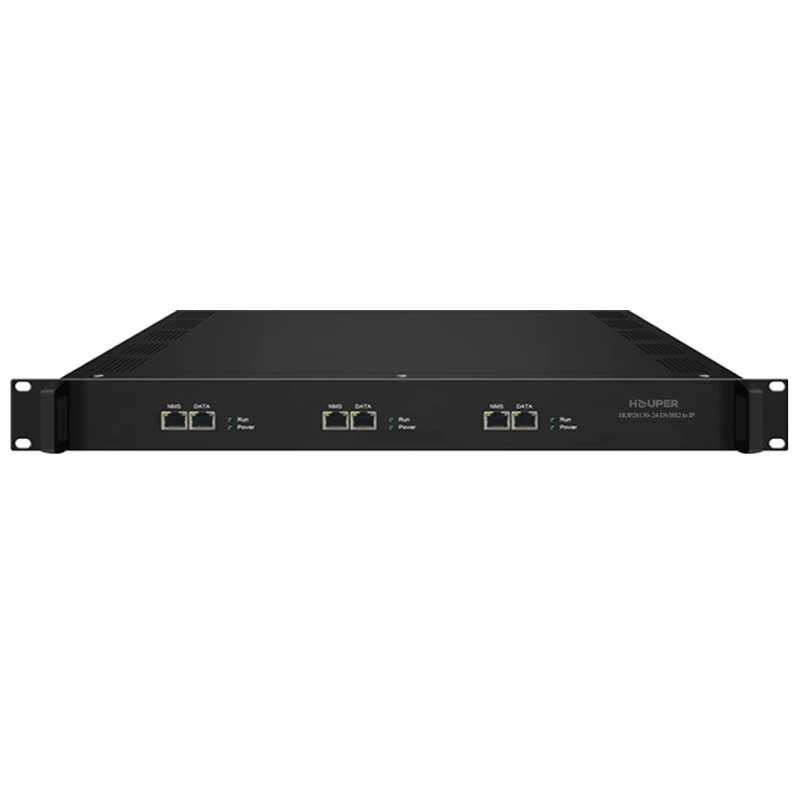

HOP28130 DVB rəqəmsal siqnallarının IP

Features:

Support 8 tuners (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T) input; 1 U chassis optional for 1/2/3 cards maximum for 8/16/24 tuner input; Each tuner card are working independently with its NMS and 1 GE Data port

8 MPTS (8MPTS out thru bypassing) under Passthrough mode over UDP/RTP thru Data port, unicast/multicast-Version 1

2 MPTS out after multiplexing or 512 SPTS out switchable under Mux mode over UDP/RTP thru Data port, unicast/multicast-Version 2

Up to 256 PIDs remapping per output channel (Mux mode only)
Support PID re-mapping and pass-through (Mux mode only)
Support Diseqc function (Mux mode only)
Support Biss decryption, each tuner support maximum 64 BISS key decryption (Mux mode)
Web-based NMS management

Input / Output
8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type
8 MPTS out thru bypassing over UDP/RTP thru Data port (Version 1)
100/1000Mself-adaption, unicast/multicast

Mux (Version 2)
Max number of managing PID: 256 (for 2 MPTS out thru multiplexing) or 512 SPTS out
Functions: PID remapping (automatically/ manually) , PID pass-through

System
Web management:100M NMS port
Ethernet software upgrade

General
Dimensions 482mm×328mm×44mm (WxLxH)
Weight 3.5kg
Temperature 0~45℃(operation), -20~80℃(storage)
Power supply AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz

Consumption
≤25W (1card inside)
≤50W (2 cards inside)
≤75W (3 cards inside)
