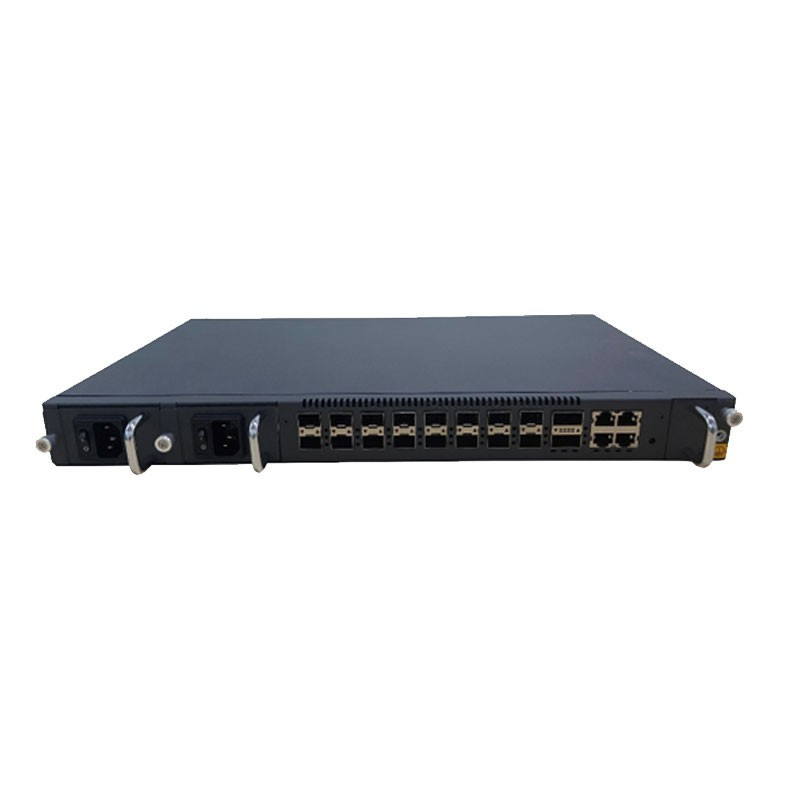

8 10G uplinklı və 2 100G uplinklı və GPON, XGPON, XGSPON texnologiyalı 8 portlu combo OLT

Rich Layer 2 and Layer 3 switching features and flexible management methods

Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP

Support RIP、OSPF、BGP、ISIS、IPV6

Safe DDOS and virus attack protection

Support power redundancy backup, support power pluggable

Support ONU automatic registration

Support power failure alarm

Exchange Capacity 104Gbps

Packet Forwarding Rate 77.376Mpps

Memory and Storage Memory：2GB，Storage：8GB

Management Port 1 * Console Port

Fixed Port 8*XG(S)-PON/GPON COMBO port, 8*10GE/GE SFP + 2*100G QSFP28 port

PON Compliant with ITU-T G.987/G.988 standard

100 KM transmission distance

1:256 maximum splitting ratio

Standard OMCI management functions

Flexibly compatible with any brand of ONT

ONU batch software upgrade

VLAN Support 4K VLAN 802.1Q

Supports VLAN based on port, MAC and protocol

Support dual Tag VLAN function, port-based static QinQ and flexible QinQ functions

MAC Support 128K MAC address table entries

Support static MAC address setting

Support black hole MAC address filtering function

Support port MAC address limit

Ring Network Protocol Support STP/RSTP/MSTP

Support ERPS Ethernet ring network protection protocol

Support Loopback-detection port loopback detection

Port control Support two-way bandwidth control

Support port storm suppression

Support 9K Jumbo ultra-long frame forwarding

Port Aggregation Support static link aggregation

Support dynamic LACP

Each aggregation group supports a maximum of 8 ports

Mirroring Support port mirroring

Support stream mirroring

ACL Support standard and extended ACL

Support ACL policy based on time period

Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.

QoS Support flow rate limiting function based on custom business flow

Supports mirroring and redirection functions based on custom business flows

Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function,

support queue scheduling algorithms such as SP/WRR/SP+WRR

Security Support user hierarchical management and password protection

Support IEEE 802.1X authentication and Centralized MAC address authentication

Support Radius&TACACS+ authentication

Support MAC address learning limit, support black hole MAC function

Support SSH 2.0, provide a secure encrypted channel for user login

Support SNMP v3 encryption management

Support port isolation, hardware isolation of packets between ports

Support broadcast packet rate suppression

Support IP Source Guard to automatically create IP+MAC+Port+VLAN binding table, and support manual binding table entry

Support DHCP Option82 and PPPoE+

Supports automatic suppression of ARP flooding attacks and ARP spoofing protection

Support control layer to prevent various DOS attacks and virus attacks against CPU

Layer 3 Support ARP learning and aging

Supports creating VLAN Layer 3 interfaces and configuring static IPv4/IPv6 addresses

Support static routing configuration

Support RIP/OSPF protocol function

Support VRRP protocol function

System management Support Console/Telnet/SSH2.0 command line configuration

Support WEB browser configuration management

Support FTP, TFTP file upload and download management

Support SNMP V1/V2/V3

Support RMON

Support SNTP clock

Support system work log

Support LLDP Neighbor Device Discovery Protocol

Support 802.3ah Ethernet OAM

Support RFC 3164 Syslog function

Support Ping and Traceroute

Environment temperature Operating ambient temperature: -10℃～55℃

Storage environment temperature: -40℃～70℃

Environment humidity Operating humidity: 10%～95% (non-condensing)

Storage humidity: 10%～95% (non-condensing)

Environment friendly RoHs EEE

Weight 9KG

Fan Hot-swappable, adjustable speed (3)

Power AC： 100～240V 47/63Hz；

DC： 36V～75V；
