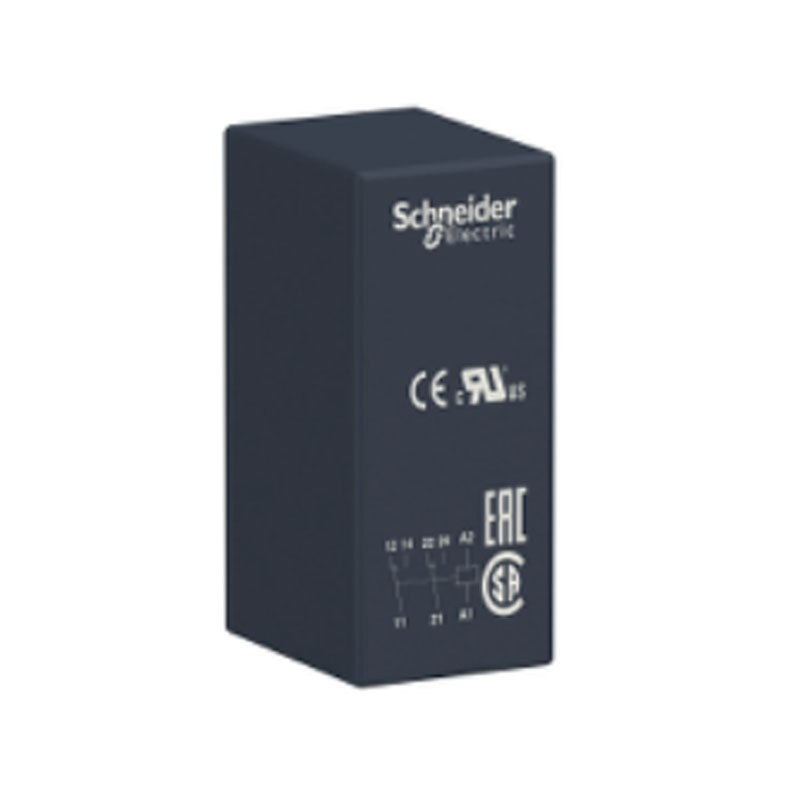

Schneider relesi RSB2A080B7

Schneider relay RSB2A080B7 is used in chillers and data center chillers. This relay has two open and closed contacts, which are controlled by 24 VAC, and 50 and 60 Hz frequency. It can pass 8 A current at an ambient temperature from -40 to +40 °C. The operating voltage of the relay is 19.2 to 36 VAC. Its nominal insulation voltage is 400 volts, and its instantaneous withstand voltage is 3.6 kV. The maximum voltage of the switch is 300 VDC and the minimum voltage of the switch is 12 volts. The RSB2A080B7 relay can operate 18,000 times per hour at no load, which decreases to 600 times per hour when under load. The operation time of RSB2A080B7 relay for activation and reset is 20 milliseconds. It is one of the important spare parts of Schneider machines in data centers.
