NETIO PowerBOX 4Kx مع شريط طاقة ذكي يدعم LAN مع 4 مخارج

یتيح هذا المنتج للمستخدمين إمکانیة التحكم في الطاقة الكهربائية وإدارتها، ومن خلال استخدام القياسات الكهربائية المختلفة، يمكن للمستخدمين تحسين استهلاكهم للطاقة وتقليل تكاليفهم.

Electrical parameters are measured with high accuracy at each output individually (A, W, kWh, TPF, V, Hz).

The NETIO Mobile2 app controls each output individually over LAN (local network) or NETIO Cloud.

NETIO Cloud is a SSL-secured service for controlling multiple devices from anywhere (1 screen for controlling 100 outputs).

Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).

The Scheduler function switches outputs on and off at configured times. It works locally, even without Internet connection.

AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, Crestron, Control4, RTI, Savant and more.

• 4x output (electrical socket)
• Each output can be switched on and off individually
• Electrical measurements (A, W, kWh, TPF, V, Hz)
• Open API (10 protocols)
• ZCS – Zero Current Switching
• Service: NETIO Cloud
• Mobile App: NETIO Mobile2

FEATURES

• 4x output (electrical socket)
• Each output can be switched on / off individually

Methods of controlling each output:

• WEB browser
• Mobile App (NETIO Mobile 2)
• Open API (10 protocols)
• NETIO Cloud

SPECIFICATIONS

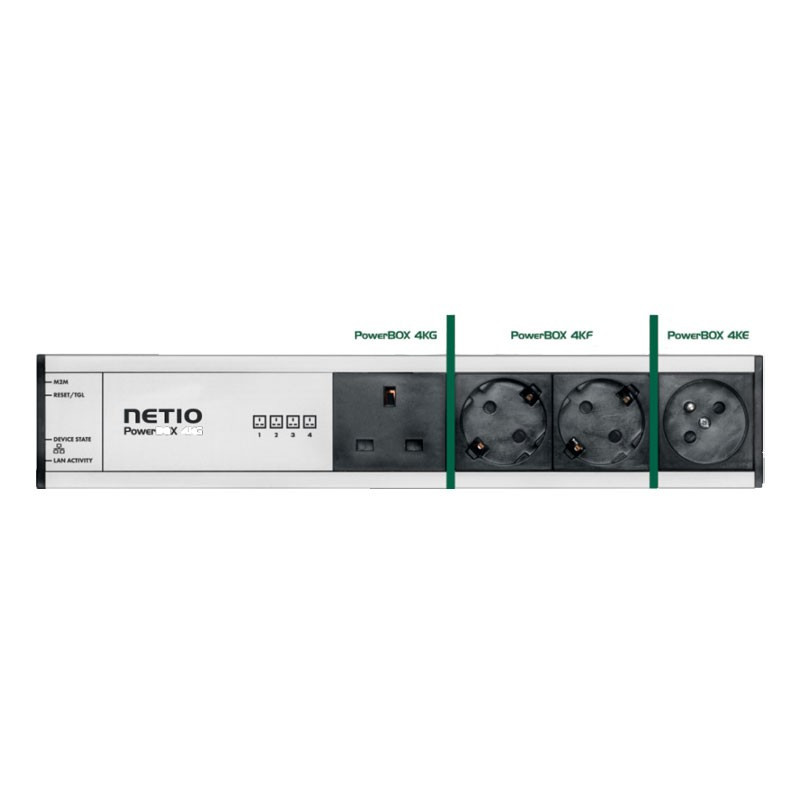

4Kx PRODUCT MODELS

PowerBOX 4KF:

4x el . socket Type F (Schuko)/230V/Max 16A (per output)

PowerBOX 4KE:

4x el . socket Type E (FR)/230V/Max 16A (per output)

PowerBOX 4KG:

4x el . socket Type G (UK)/230V/Max 13A (per output)

POWER

• Power input: Electrical plug + 1.6m cable
• Power output: 4x electrical socket
• Each output: On/Off (SPST-NO relay, IOC)
• ZCS (Zero Current Switching): Yes
• Internal consumption: 1-2 W
