حزمة حامل كاملة وذكية لمركز بيانات EDGE-5 مع نظام تهوية بالغاز

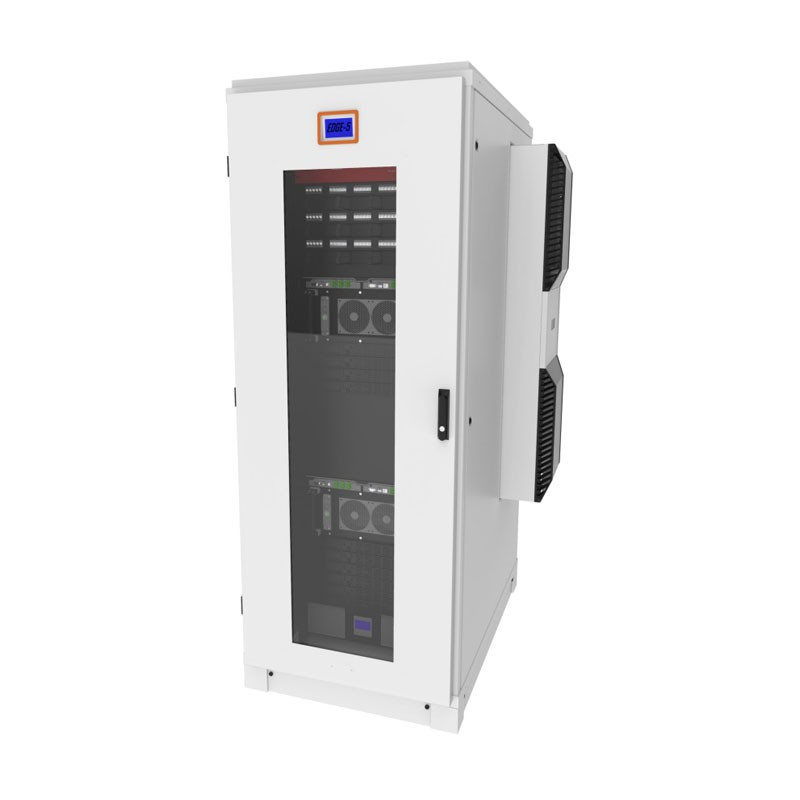

The LCD touch display on the cabinet doors will change colour if the cabinet status changes, alerts (amber) or alarm (red). It will remain blue when working correctly. Touching the display will show environmental data from each temperature/humidity sensors or in the event of an alarm what that alarm specifically is.

Typical application spaces:

• Un-staffed offices
• IT/Comms rooms,
• Stadiums
• Warehouses
• Factories

For safe running we recommend siting in a ventilated room up to 90°F/35°C

Features and benefits

Features and benefits cont.

Specification

Materials and finish

Frame

1.5mm CR4 steel

Glass door

1.0mm, 1.2 & 2.0mm CR4 steel 4mm clear toughened glass

Side panels and top cover

1.2mm CR4 steel

Mounting angles

2.0mm CR4 steel

Cooling

2.5kW slimline air conditioning unit

Intelligence

Edge Management System

Compliance statement: Manufactured to IEC 602973 and EIA STD 310 for panels and racks housing electronic equipment

How it works

The EDGE-5 provides a safe constant working temperature and will deal with a working load of between 500w to 2.5kW to protect and prolong the life of your IT equipment. The EDGE-5 is an ideal solution for reducing energy costs and keeping temperatures controlled inside the cabinet. The slimline air-conditioning unit will speed up and slow down as and when the heat load dictates, removing the need for unnecessary over use of the equipment
