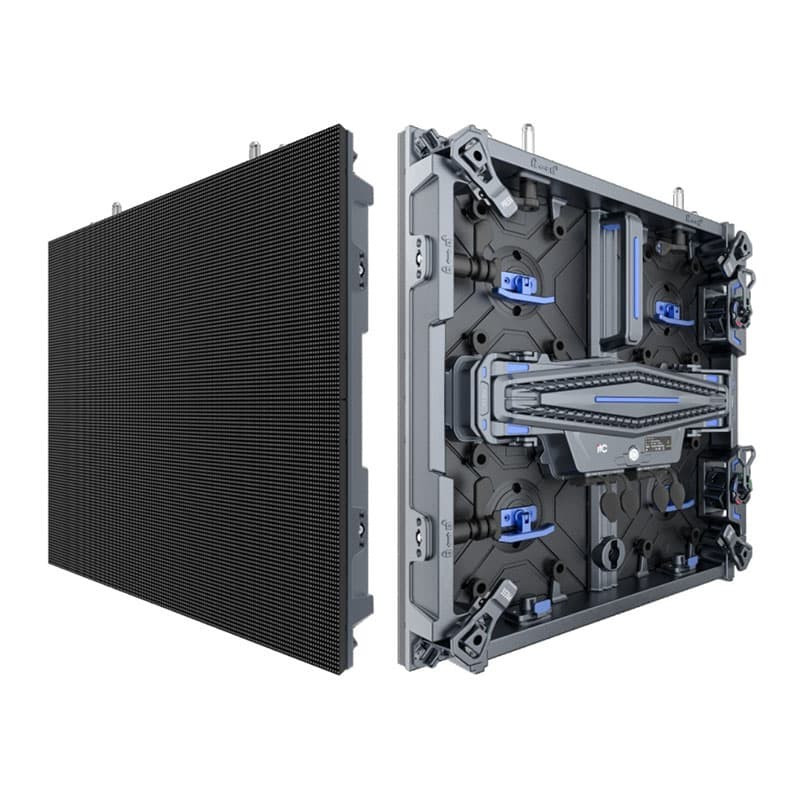

جدار فيديو LED داخلي TV-PH ماركة ITC
  • جدار فيديو LED داخلي TV-PH ماركة ITC

جدار فيديو LED داخلي TV-PH ماركة ITC

جدار فيديو LED داخلي موديل TV-PH من ماركة ITC هو تقنية عرض متقدمة مناسبة للاستخدام داخل المساحات المختلفة. يحتوي جدار الفيديو هذا على ثلاث سلاسل، YD، YX، YZ، باستثناء YD، وهو نموذج واحد، كل واحد منهم لديه ثلاثة نماذج بأبعاد مختلفة. يحتوي جدار الفيديو هذا على جهد تشغيل يبلغ +4.2V~+5V DC وزاوية عرض أفقية وعمودية تزيد عن 175 درجة، مما يسمح للمشاهدين برؤية صور أفضل. يحتوي جدار الفيديو LED الداخلي TV-PH على طريقة صيانة خلفية/خلفية ويستخدم طريقة التحكم المتزامن وجهاز القيادة. يتمتع InVideoWall بتدفق مستمر ومعدل تحديث لا يقل عن 7680 هرتز. معدل التحديث الخاص به هو 60/120/160/180/240 هرتز ويستخدم طريقة المسح S14 لعرض الصور. يستخدم جدار الفيديو TV-PH التكنولوجيا الحديثة والمتقدمة لعرض صور عالية الجودة. يتميز جدار الفيديو هذا بـ MTBF لأكثر من 20000 ساعة، وعمر افتراضي يزيد عن 100000 ساعة، ومعدل فشل أقل من 1 لكل 10000 بكسل، مع عدم وجود أي بكسل يفشل باستمرار.

الكمية

Series and models

YX series

YZ And YD series

Feature

  • With fast installation design. The installation and dis-assembly of the screen can be completed in a short time.
  • Support the arbitrary direction of the signal line, and meet the different arrangement and placement of cabinets, create pictures with different effects.
  • With arc lock -6°, -3°, 0°, +3°, +6° arc shape. *Support 256-level brightness adjustment and white balance custom adjustment.
  • Adopt signal folding technology, unit modules do not need to be cascaded, which greatly improves the display performance of the product.
  • Adopt large modules, with only 4 modules per cabinet, which reduces internal connections and improves product stability.
  • The back cover adopts a U-shaped push-lock design, and the power supply and receiving card can be maintained and replaced without dismantling any components.
  • High-end constant current drive chip with built-in PWM can realize high refresh rate, high grayscale high refresh rate, high grayscale 65536 grayscale products. The picture is stable, which can easily meet the requirements of high-end applications such as stage performances and broadcasting.
  • The new structure design meets the requirements of hoisting and stacking installation, as well as indoor and outdoor requirements. The cabinet design is suitable for multiple pitches of Led screen.
  • The new structural design meets the requirements of hoisting and stacking. The cabinet is simplified and compatible with various pitches.
  • High grayscale and high refresh rate: gray scale 12/14/16 bit, refresh frequency>7680Hz;
  • Optimize heat dissipation design through PCB circuit,don’t need external fans, air conditioners, etc., low noise; light weight of the cabinet, low installation cost; low power consumption of the cabinet, saving operating costs.
  • Equipped with various specifications of the flight cases, which is convenient for storage and transportation of the cabinets, and has a good protective effect on the LED video wall.
  • Support DCI-P3 (98%) color gamut requirements, support BT.2020, DCI.P3, BT.709, sRGB and other color gamut conversions, support X, Y, Z and Y, U, V color conversion.

ITC
Video Wall

Data sheet content

حائط الفيديو

6. Best viewing distance
≥9m , ≥12m , ≥7.8m
6. Brightness
200~800CD/m² , 200~2000CD/m²
6. Contrast
≥10000:1 , ≥20000:1
6. Control mode
Synchronous control
6. Drive device
Constant current drive
6. Frame rate
≥60Hz
6. Graphics card
DVI/HDMI/DP
6. Grayscale
12/14/16bit
6. Lifespan
≥100000H
6. MTBF
≥20000H , ≥10000H
6. Operating temperature
-10℃~+40℃ , -20℃~+40℃
6. Operating voltage
DC +4.2V~+5V
6. Operating voltage(AC)
220V±10%/50Hz or 110V±10%/60Hz , 90V-270V(50Hz/60Hz)
6. Refresh rate
≥3840Hz , ≥7680Hz
6. Scanning method
16S , 14S , 21S
6. Storage temperature
-35℃~+85℃
6.Failed rate
≤1/10000 and no continuous failed pixels

16 other products in the same category

Specifications

حائط الفيديو

6. Best viewing distance ≥9m, ≥12m, ≥7.8m
6. Brightness 200~800CD/m², 200~2000CD/m²
6. Contrast ≥10000:1, ≥20000:1
6. Control mode Synchronous control
6. Drive device Constant current drive
6. Frame rate ≥60Hz
6. Graphics card DVI/HDMI/DP
6. Grayscale 12/14/16bit
6. Lifespan ≥100000H
6. MTBF ≥20000H, ≥10000H
6. Operating temperature -10℃~+40℃, -20℃~+40℃
6. Operating voltage DC +4.2V~+5V
6. Operating voltage(AC) 220V±10%/50Hz or 110V±10%/60Hz, 90V-270V(50Hz/60Hz)
6. Refresh rate ≥3840Hz, ≥7680Hz
6. Scanning method 16S, 14S, 21S
6. Storage temperature -35℃~+85℃
6.Failed rate ≤1/10000 and no continuous failed pixels
