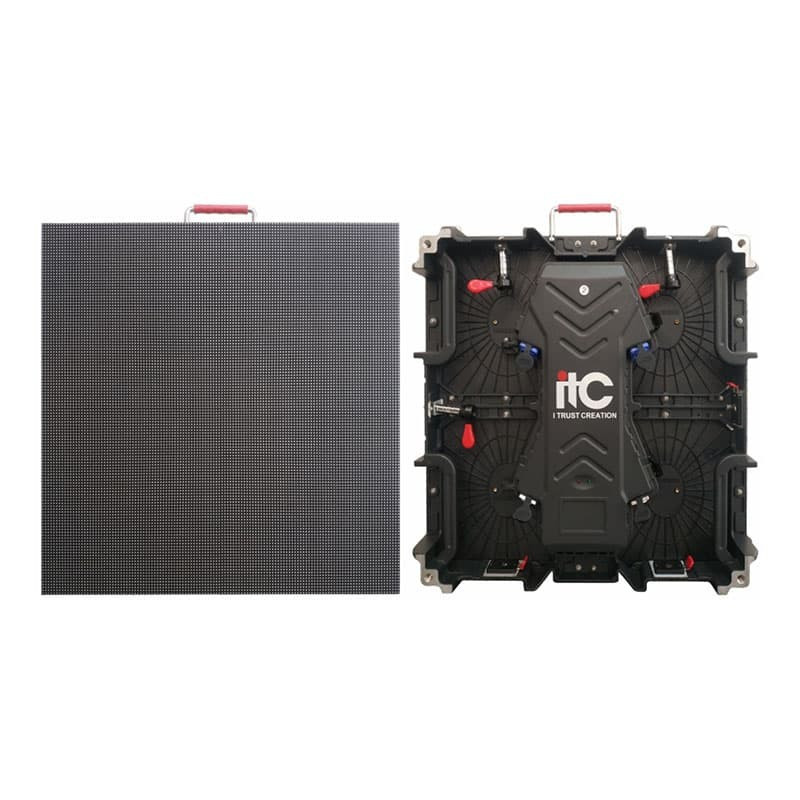

جدار فيديو LED خارجي TV-OH391-481 ماركة ITC
جدار الفيديو LED الخارجي هو جهاز عرض متقدم يستخدم لعرض الصور ومقاطع الفيديو في الهواء الطلق. يتمتع هذا المنتج بجودة صورة عالية وسطوع مناسب وقدرة على عرض الصور في ظروف الإضاءة المختلفة. غالبًا ما تكون جدران الفيديو هذه متاحة للإيجار، ويمكن للشركات والمؤسسات استخدام هذه الخدمات لزيادة جاذبية الأحداث الخاصة بها وجودتها. يحتوي جدار الفيديو هذا على YM وYZ، ولكل منهما نموذجين. يحتوي جدار الفيديو هذا على بطاقة رسومات تدعم منافذ DVI / HDMI / DP وترسل إشارة الفيديو. هذا النظام متوافق مع أنظمة PAL / NTSC / SECAM ومن S-Video؛ VGA؛ RGB؛ فيديو مركب؛ سدي؛ دفي؛ الترددات اللاسلكية؛ RGBHV؛ يو في؛ دعم YC الخ. يستخدم حائط الفيديو هذا طريقة التحكم المتزامن وأجهزة التحفيز مثل التيار الثابت. يبلغ معدل التحديث لجدار الفيديو هذا 3840 هرتز على الأقل ومعدل الإطارات 60 هرتز على الأقل. لديها (MTBF) أكثر من 10,000 ساعة وعمر خدمة يزيد عن 100,000 ساعة.
Series and models
Feature:
- Lightweight, ultra-thin and with fast installation design. The installation and dis-assembly of the screen can be completed in a short time.
- Support the arbitrary direction of the signal line, and meet the different arrangement and placement of cabinets, to create pictures with different effects.
- Equipped with a professional video processor, supporting AV, DP, VGA, DVI, YPBPR, HDMI, SDI and other signals.
- Support 256-level brightness adjustment and white balance custom adjustment, so that different batches of screens can be mixed to use.
- Signal processing: RTF series products adopt signal folding technology, unit modules do not need to be cascaded, which greatly improves the display performance of the product.
- Modules: adopt large modules, with only 4 modules per cabinet, which reduces internal connections and improves product stability. Without opening the cabinet, the module can be directly disassembled from the rear of the cabinet.
- Back cover: remove 4 screws, take off the back cover, you can maintain and replace the power supply and receiving card.
- Heat sink: the aluminum bottom plate is used to replace the traditional plastic bottom shell, which improves the heat dissipation performance of the product while ensuring the flatness.
- IC and driver: high refresh rate and high gray scale of 16384 level. The product uses a high-end constant current driver chip with built-in PWM In the case of a single receiving card loaded, the display refresh frequency can be 960Hz to 4800Hz and gray level can up to 16bit.. The picture is stable, which can easily meet the requirements of high-end applications such as stage performances and broadcasting. The DC power cable adopts American standard cable, and the power input adopts a surface mount socket. The power cable is not easy to loosen, the line loss is minimal during power transmission, and the input voltage is stable.
- The new structure design meets the requirements of hoisting and stacking installation, as well as indoor and outdoor requirements. The cabinet design is suitable for multiple pitches of Led screen.
- High grayscale and high refresh rate: gray scale 14 bit, refresh frequency>960Hz;
- Excellent heat dissipation design and heat dissipation performance, don’t need external fans, air conditioners, etc., low noise; light weight of the cabinet, low installation cost; low power consumption of the cabinet, saving operating costs.
- It has good waterproof effect and has an IP54 protection level, which is suitable for outdoor rental use.
- Equipped with various specifications of the flight cases, which is convenient for storage and transportation of the cabinets, and has a good protective effect on the LED video wall.
- Customize the most appropriate LED video wall leasing solutions according to customer requirements and site environment.
Data sheet content
حائط الفيديو
- 6. Best viewing distance
- ≥12m , ≥14.5m
- 6. Brightness
- 3500~4500CD/m²
- 6. Contrast
- ≥10000:1
- 6. Control mode
- Synchronous control
- 6. Drive device
- Constant current drive
- 6. Frame rate
- ≥60Hz
- 6. Graphics card
- DVI/HDMI/DP
- 6. Grayscale
- 12/14/16bit
- 6. Lifespan
- ≥100000H
- 6. MTBF
- ≥10000H
- 6. Operating temperature
- -10℃~+40℃
- 6. Operating voltage
- DC +4.2V~+5V
- 6. Operating voltage(AC)
- 220V±10%/50Hz or 110V±10%/60Hz
- 6. Refresh rate
- ≥3840Hz
- 6. Scanning method
- 16S , 13S
- 6. Storage temperature
- -35℃~+85℃
- 6.Failed rate
- ≤1/10000 and no continuous failed pixels
