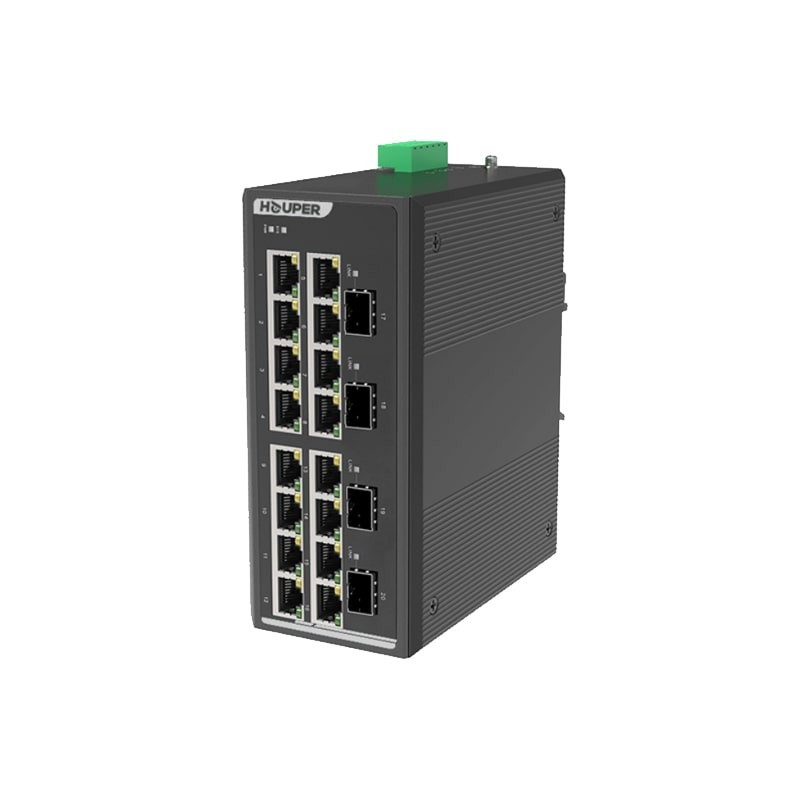

محول HOP3412S1220-4TP الصناعي لهوبر مع 16 منفذ POE جيجابت و4 منافذ SFP من الألياف الضوئية

HOP3412S1220-4TP is a new generation industrial Power over Ethernet Managed switch withi6-Port 10/100/1000Base-TX and 4-Port 100/1000Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Houper, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

Product Features

• Support Auto-MDIX, and full/half duplex self-negotiation mode
• Provide SCIFC/ST/LC interface fiber port, support single/dual fiber transmission
• Support 10K bytes giant frame, compatible with various extension protocol
• 8K MAC address table
• Support IEEE802.3az energy efficient Ethernet technology
• Electric 8KV surge protection, easy to use in outdoor environment
• Complete status indicator, working state at a glance
• e Power input polarity protection design, no worry about wrong operation
• Aluminum case, no fan design

Ethernet Interface

• RJ45 Port and Speed: 16x10/100/1000Base-TX
• Fiber Port and Speed: 1000Base-FX SFP

Ethernet Standards

• IEEE802.3 IEEE802.3u IEEE802.3z
• IEEE802.3ab IEEE802.3x IEEE802.3az
• e IEEE802.3ah IEEE802.1X
• e IEEE802.1Q

Packet Buffer

Maximum Packet Length

• Up to 10K

MAC Address Table

• 08K

Transmission Mode

• Store and Forward (full/half duplex mode)

Exchange Property

• Delay time: < 7gs
• Backplane bandwidth: 56Gbps; Packet forwarding rate: 29.76Mpp

Power Supply

• PoE Standard: 16x IEEE 802.3af/lEEE 802.3at PoE
• Power Access Mode: Phoenix terminal, DC seat
• Redundant Power Input: DC 9-56V
• Overload Protection: Yes
• Power Reverse: Support

Physical Property

• AAAA Protection Grade: IP40 aluminum case
• Cooling Mode: Natural cooling, no fan design
• Dimensions: 160mm x 140mm x 75mm (L x W x H)
• Installation Mode: DIN trail/wall-mountable
• Weight: 1.05kg (With PoE: 1.1kg)

Environmental

• Operating Temperature: -400C¯750C
• Operating Humidity: 50/0 & non-condensing
• Storage Temperature: -400C¯850C
• MTBF: 500,000 hours

Software Features

Redundant network

• STP, RSTP, MSTP, IT-T G.8032 Ethernet Ring Protection Switching (ERPS) for
• redundant cabling ERPS/ Ring for Redundant Cabling,
• recovery time<20ms in
• 250 devices

Multicast

• IGMP snooping VI/V2/V3

VLAN

• IEEE 802. IQ 4K VLAN, GVRP, GMRP, QINQ

Link Aggregation

• Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation

Management Function

• CLI, Web based management, SNMP vl/v2c/v3,TeInet/SSH server for management

Diagnostic Maintenance

• Port mirroring, Ping

Alarm management

• 1 way relay alarm output, RMON, SNMP Trap RMON, MIB II, Port mirroring, Event syslog, DNS, SNTP, IEEE 802. lab LLDP

Security

• DHCP Server/CIient/ReIay option 82/Snooping User hierarchical management

Flexibility security

• Port based and MAC based IEEE 802.1X, ACL, HTTP/HTTPS, SSUSSH v2 Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x,half duplex back-pressure flow control. Broadcast storm suppression, Unknown-Multi cast suppression and Unknown-Unicast suppression Software upgrade via HTT
